FG Series

Catalog

OMNI,FG,460-470MHZ,100W 465MHZ,9DBI

Part	Mounting Type	Antenna Type	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	VSWR	Frequency (Center/Band)	Termination	Power - Max [Max]	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Frequency Range [Max]	Frequency Range [Min]	Gain	Height (Max) [diameter]	Height (Max) [Max] [diameter]	Height (Max)
TE Connectivity AMP Connectors FG4607	Bracket Mount	Whip Straight	1	271.78 cm	107 in	2	465 MHz	N Type Female	100 W	1 GHz	UHF	300 MHz	470 MHz	460 MHz	7 dBi
TE Connectivity AMP Connectors FG1560	Bracket Mount	Whip Straight	1			2	159 MHz	N Type Female	150 W		VHF (f < 300MHz)		162 MHz	156 MHz	0 dBi	172.72 cm	68 in

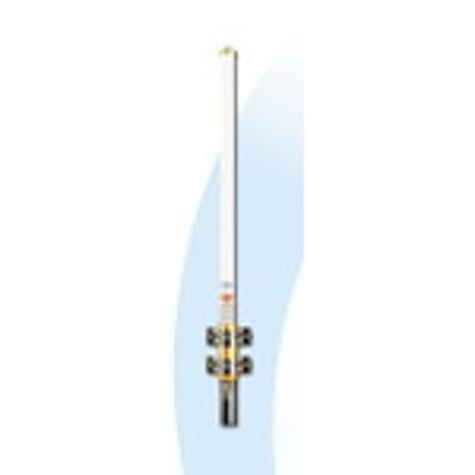

TE Connectivity AMP Connectors FG4405	Bracket Mount	Whip Straight	1		76 in	2	445 MHz	N Type Female	100 W	1 GHz	UHF	300 MHz	450 MHz	440 MHz	5 dBi			193.04 cm
TE Connectivity AMP Connectors FG1560	Bracket Mount	Whip Straight	1			2	159 MHz	N Type Female	150 W		VHF (f < 300MHz)		162 MHz	156 MHz	0 dBi	172.72 cm	68 in
