CG-PG11 Series
Manufacturer: Essentra Components
Beta
⌘K

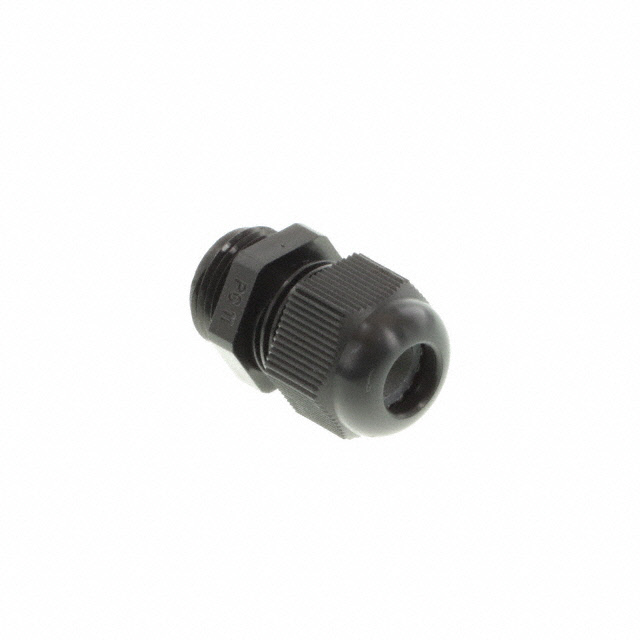

CABLE GLAND 5-10MM PG11 POLYAMID
| Part | Color | Thread Size | Thread Length | Thread Length | Operating Temperature [Min] | Operating Temperature [Max] | Material | Includes | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Panel Hole Size | Panel Hole Size | Type | Ingress Protection | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Black | PG11 | 0.315 " | 8 mm | -20 ░C | 100 °C | Polyamide (PA) Nylon | Sealing Gland Sealing Nut | 0.197 in | 5 mm | 18.8 mm | 0.74 in | Cable Gland | IP68 - Dust Tight Waterproof | 10 mm | 0.394 in |
