Ksc0Slt0 Series Series

Long Travel Low Sound

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Long Travel Low Sound

Part	Circuit	Actuator Orientation	Mechanical Life	Switch Travel	Contact Rating @ Voltage	Mounting Type	Actuator Type	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Height off PCB, Vertical	Termination Style	Illumination	Outline [y]	Outline [x]	Switch Function
Littelfuse/Commercial Vehicle Products KSC SLT 243J LFG	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.01 A 32 VDC	Surface Mount	Standard	357 gf	125 °C	-40 °C	IP40	5 mm	J Lead	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom

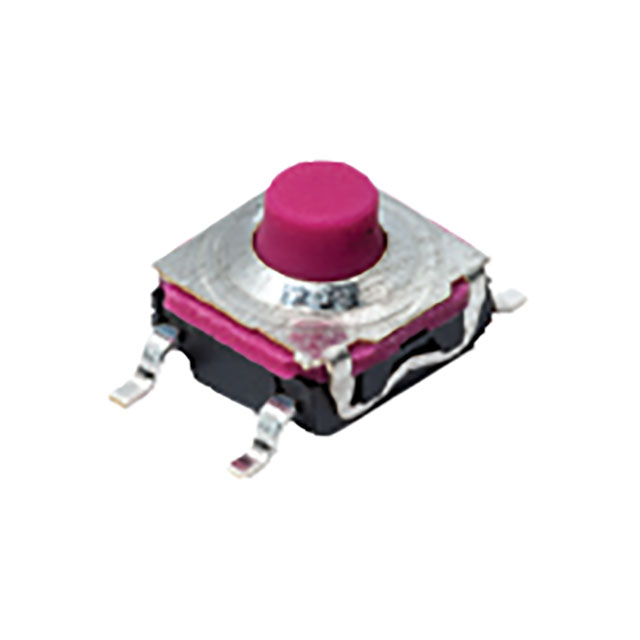

Littelfuse/Commercial Vehicle Products KSC SLT 241G LFS	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.05 A	Surface Mount	Standard	357 gf	85 °C	-40 °C	IP40	5 mm	Gull Wing	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom

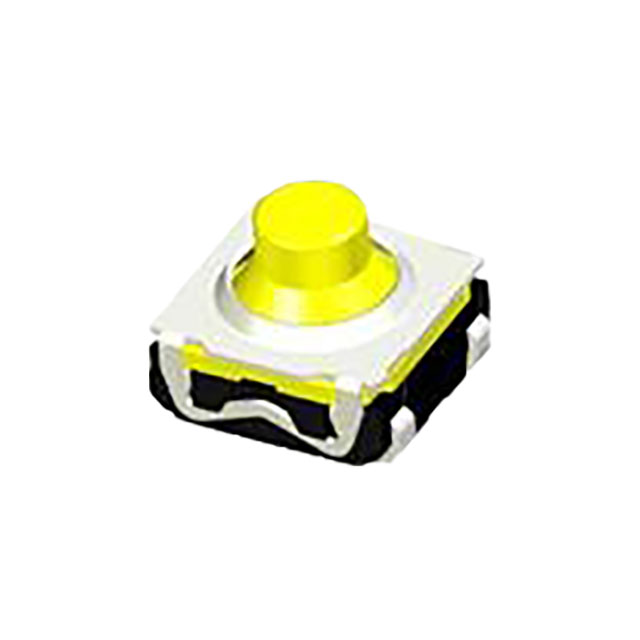

Littelfuse/Commercial Vehicle Products KSC SLT 221J LFS	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.05 A	Surface Mount	Standard	245 gf	85 °C	-40 °C	IP40	5 mm	J Lead	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom
Littelfuse/Commercial Vehicle Products KSC SLT 221G LFS	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.05 A	Surface Mount	Standard	245 gf	85 °C	-40 °C	IP40	5 mm	Gull Wing	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom
Littelfuse/Commercial Vehicle Products KSC SLT 223J LFG	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.01 A 32 VDC	Surface Mount	Standard	245 gf	125 °C	-40 °C	IP40	5 mm	J Lead	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom

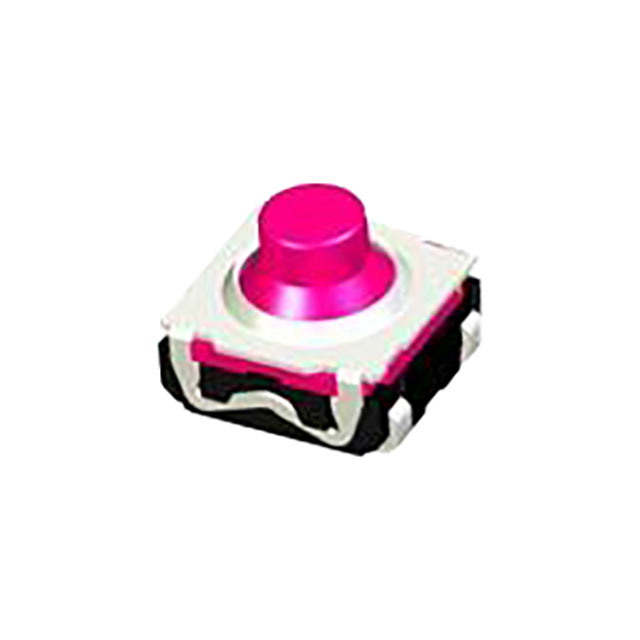

Littelfuse/Commercial Vehicle Products KSC SLT 241J LFS	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.05 A	Surface Mount	Standard	357 gf	85 °C	-40 °C	IP40	5 mm	J Lead	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom
Littelfuse/Commercial Vehicle Products KSC SLT 243G LFG	SPST-NO	Top Actuated	200000 Cycles	1.35 mm	0.01 A 32 VDC	Surface Mount	Standard	357 gf	125 °C	-40 °C	IP40	5 mm	Gull Wing	Non-Illuminated	6.2 mm	6.2 mm	Off-Mom

Catalog

Long Travel Low Sound

Key Features

• Actuator height 5.0 mm

• IP40

• 6.2 x 6.2 form factor

Description

KSC SLT long travel low sound tact switch is the alternative proposal to dome based switch to enlarge possible travel and reduce the activation sound. KSC SLT series is using the KSC form factor in SMT version.
