5070/20C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

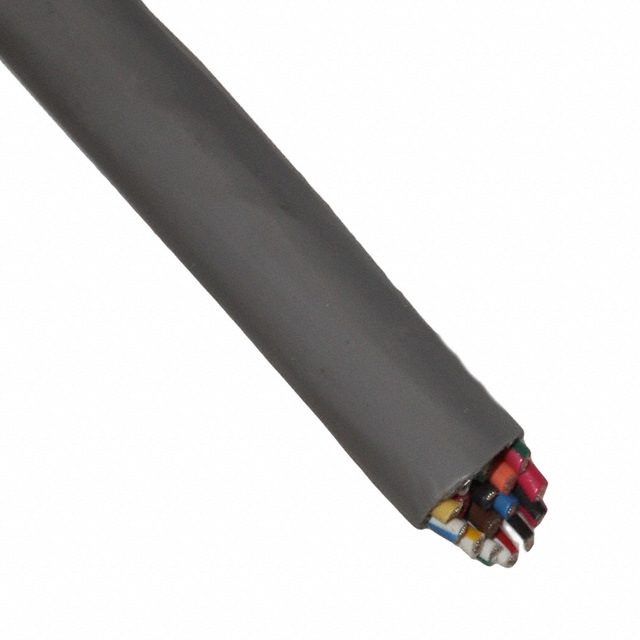

CABLE 20COND 18AWG SLATE
| Part | Jacket Color | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Voltage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Material | Number of Conductors | Ratings | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Biological Compatibility Rip Cord | 0.813 mm | 0.032 in | Communication Control | 300 VDC | Copper Tinned | 16 | 30 AWG | Multi-Conductor | -35 °C | 105 ░C | 18 AWG | 12.29 mm | 0.484 " | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | 20 | ISO 10993 UL Style 2464 | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Slate | Biological Compatibility Rip Cord | 0.813 mm | 0.032 in | Communication Control | 300 VDC | Copper Tinned | 16 | 30 AWG | Multi-Conductor | -35 °C | 105 ░C | 18 AWG | 12.29 mm | 0.484 " | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 20 | ISO 10993 UL Style 2464 | Poly-Vinyl Chloride (PVC) | ||
 ALPHA WIRE | Slate | Biological Compatibility Rip Cord | 0.813 mm | 0.032 in | Communication Control | 300 VDC | Copper Tinned | 16 | 30 AWG | Multi-Conductor | -35 °C | 105 ░C | 18 AWG | 12.29 mm | 0.484 " | Poly-Vinyl Chloride (PVC) | 20 | ISO 10993 UL Style 2464 | Poly-Vinyl Chloride (PVC) | ||||
ALPHA WIRE | Slate | Biological Compatibility Rip Cord | 0.813 mm | 0.032 in | Communication Control | 300 VDC | Copper Tinned | 16 | 30 AWG | Multi-Conductor | -35 °C | 105 ░C | 18 AWG | 12.29 mm | 0.484 " | Poly-Vinyl Chloride (PVC) | 20 | ISO 10993 UL Style 2464 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
