8117 Series

Catalog

CMC 36MH 2.9A 2LN TH

Part	Inductance @ Frequency	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Number of Lines

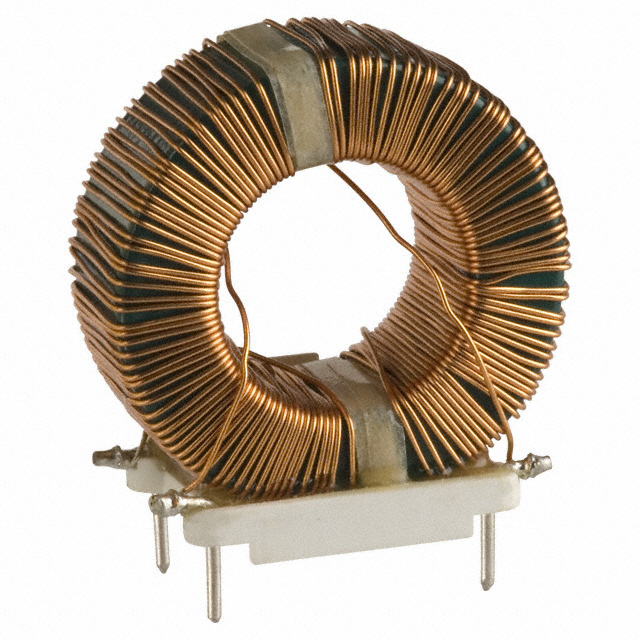

Bourns Inc. 8117-RC	1 kHz 36 mH	Vertical 4 PC Pin	0.8 "	39.37 mm	20.32 mm	1.55 "	300 mOhm	1.65 in	41.91 mm	Through Hole	-55 C	105 ░C	2.9 A	2
