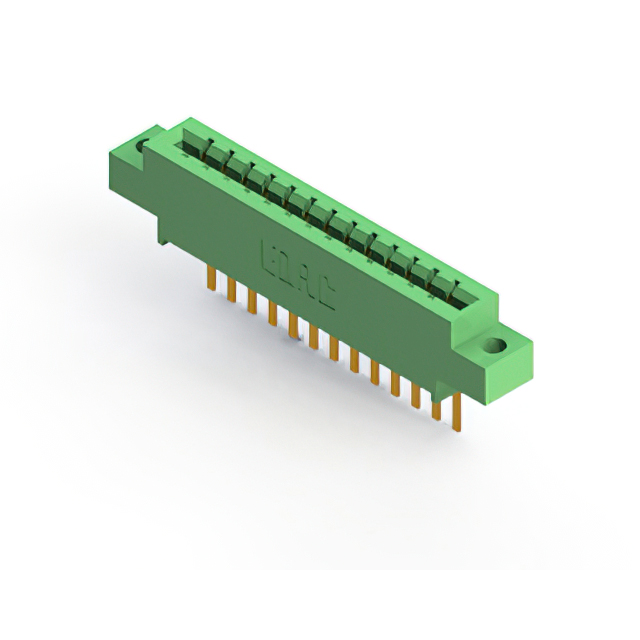

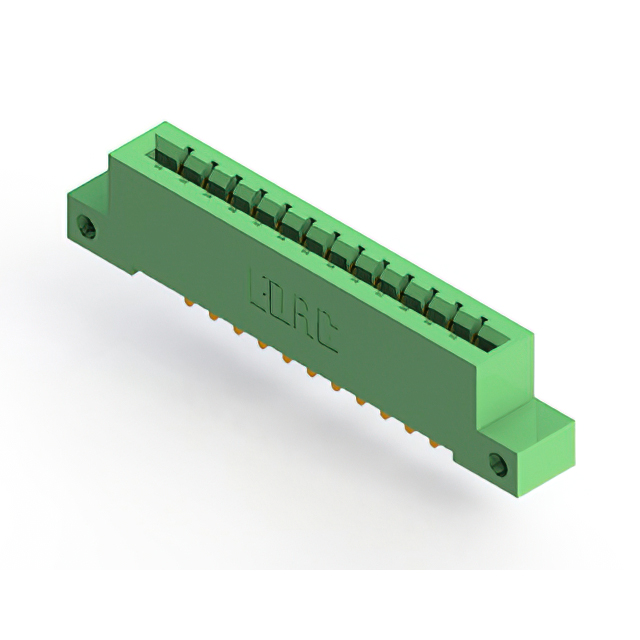

833-013 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 13POS 0.156
| Part | Material - Insulation | Termination Rows | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Pitch | Pitch | Gender | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Contact Finish | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Rows | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Solder |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | Flush Mount M3 Threaded Insert Top Opening | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Wire Wrap | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Solder |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 4-40 Threaded Insert Top Mount Opening | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Solder | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Solder Eyelet(s) |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 0.128 " | 3.25 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Wire Wrap | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Wire Wrap |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Solder |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 0.156 " | 3.96 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Wire Wrap | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Through Hole | 0.128 " | 3.25 mm | Single | 3.96 mm | 0.156 in | Female | 13 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Non Specified - Single Edge | 125 °C | -40 C | Green | 1 | Cantilever | 13 | 0.25 Ám | 10 Áin | Wire Wrap |
