Micro Stack Series

Catalog

MICRO STACK HDR ASSY 80P H=6.75

Part	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mounting Type	Connector Type	Pitch	Pitch	Number of Rows [custom]	Features
TE Connectivity AMP Connectors 6376611-1	Gold	80	0.3 Ám	11.8 Áin	0.266 in	6.75 mm	Surface Mount	Header Center Strip Contacts	0.6 mm	0.024 "	2
TE Connectivity AMP Connectors 6376608-2	Gold	80	0.3 Ám	11.8 Áin	0.535 in	13.59 mm	Surface Mount	Receptacle Outer Shroud Contacts	0.6 mm	0.024 "	2	Solder Retention
TE Connectivity AMP Connectors 1554218-2

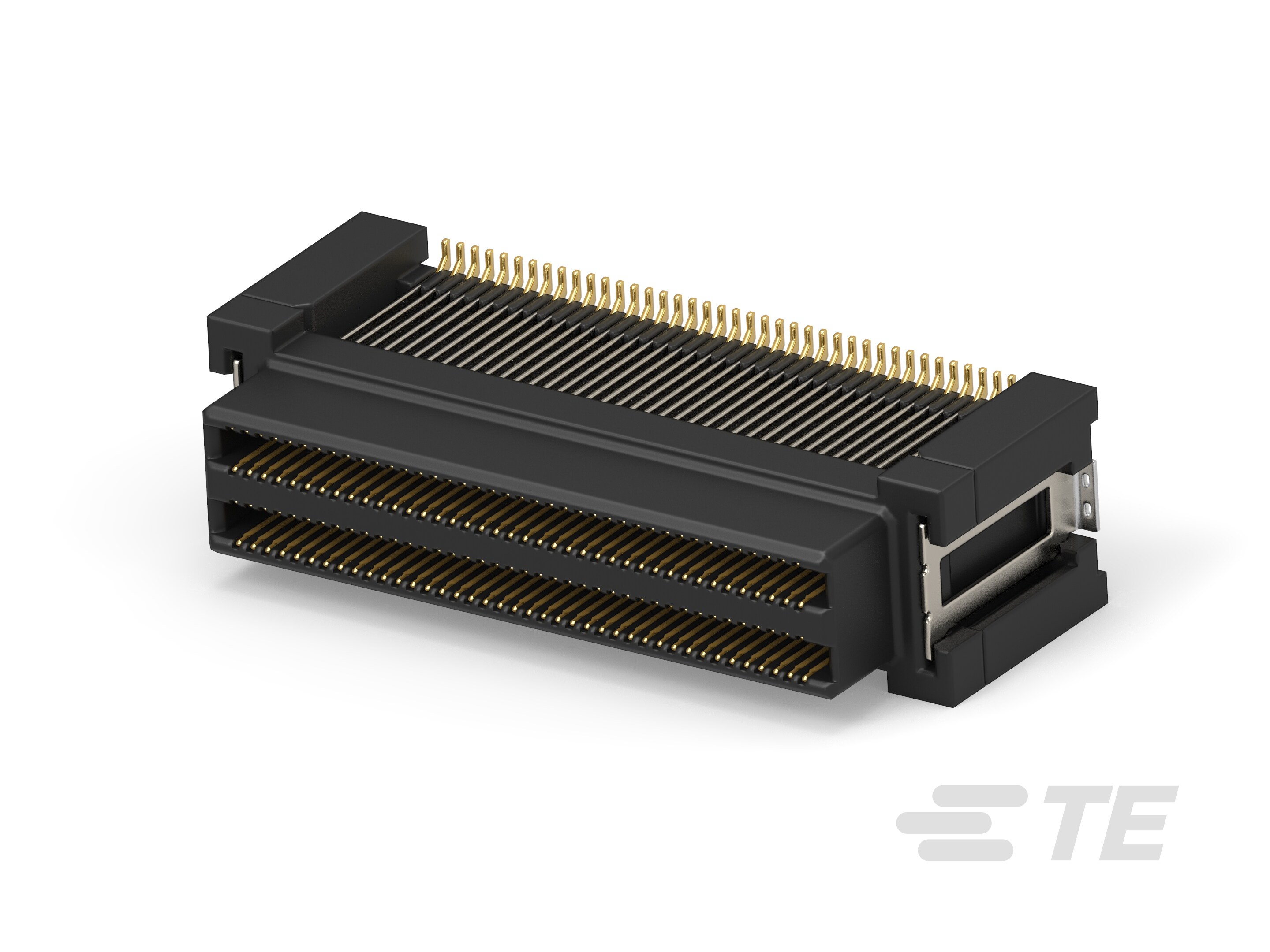

TE Connectivity AMP Connectors 6376608-1	Gold	80	0.3 Ám	11.8 Áin	0.535 in	13.59 mm	Surface Mount	Receptacle Outer Shroud Contacts	0.6 mm	0.024 "	2	Solder Retention
TE Connectivity AMP Connectors 6376610-2

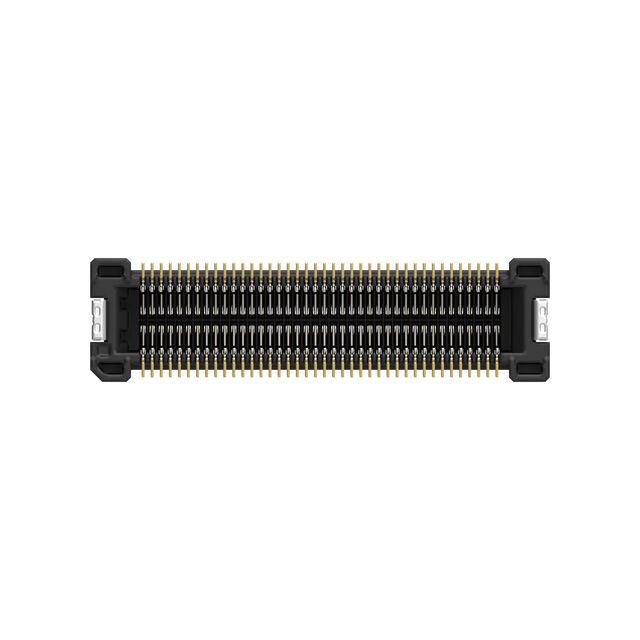

TE Connectivity AMP Connectors 6376609-1	Gold	80	0.3 Ám	11.8 Áin	0.787 in	20 mm	Surface Mount	Header Center Strip Contacts	0.6 mm	0.024 "	2	Solder Retention

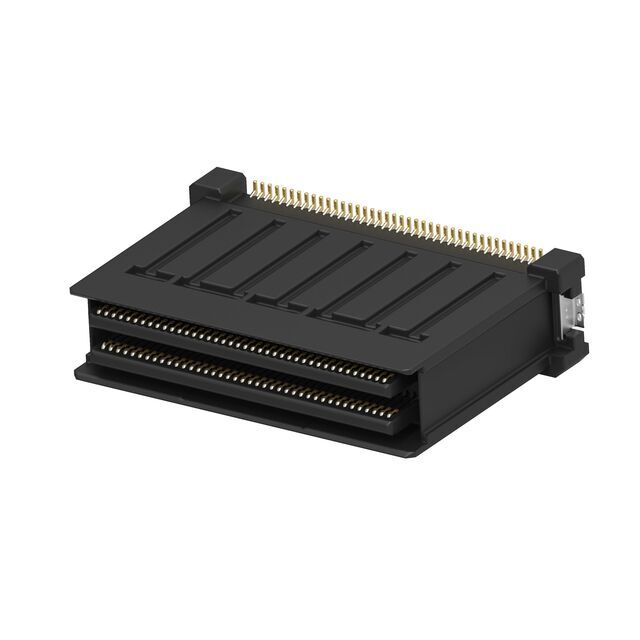

TE Connectivity AMP Connectors 6376610-1	Gold	80	0.3 Ám	11.8 Áin	0.354 in	9 mm	Surface Mount	Header Center Strip Contacts	0.6 mm	0.024 "	2	Solder Retention
