PV6 Series

Catalog

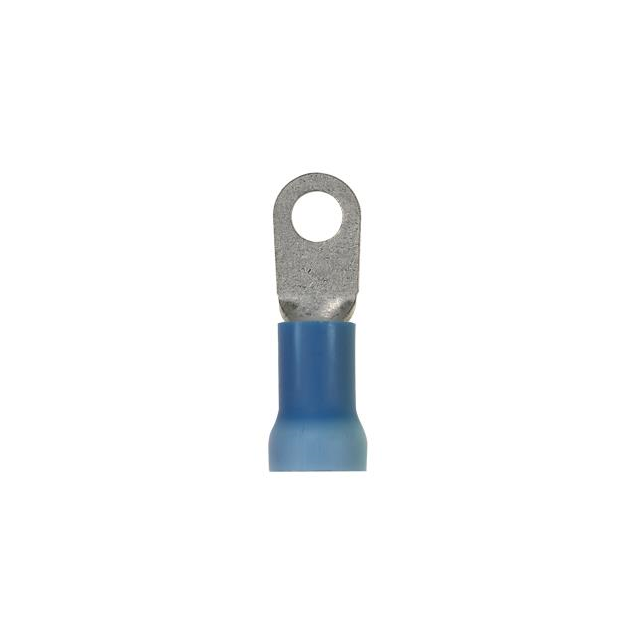

RING TONGUE TERMINAL, M4, #8, 6 AWG, 16 MM², PV-R SERIES, BLUE

Part	Insulation	Color	Termination	Terminal Type	Mounting Type	Contact Finish	Material - Insulation	Length - Overall	Length - Overall	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Thickness	Thickness	Contact Material	Wire Gauge	Features	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]
Panduit Corp PV6-8R-E	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl	1.61 in	40.89 mm	8 Stud	0.47 in	11.94 mm	8.64 mm	0.34 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam
Panduit Corp PV6-38RX-X	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl			3/8 Stud	0.62 in	15.75 mm	11.07 mm	0.436 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam
Panduit Corp PV6-8RX-E	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl	1.61 in	40.89 mm	8 Stud	0.47 in	11.94 mm	11.07 mm	0.436 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam

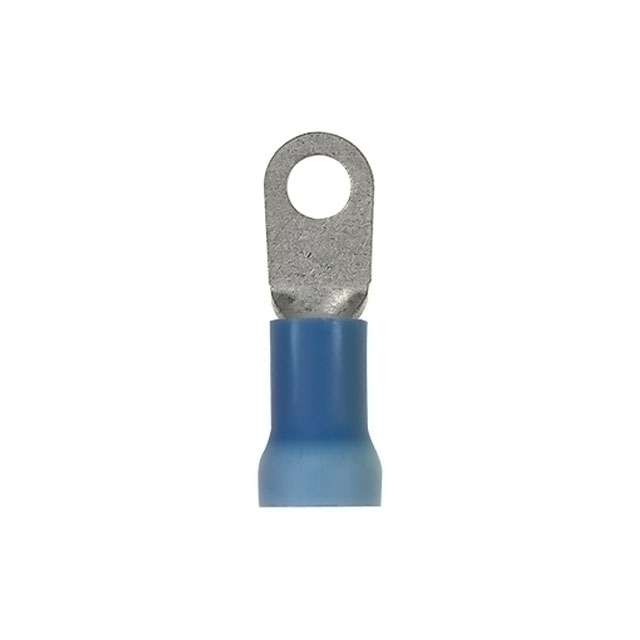

Panduit Corp PV6-14RX-T	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl	1.61 in	40.89 mm		0.47 in	11.94 mm	11.07 mm	0.436 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam	0.25 Stud

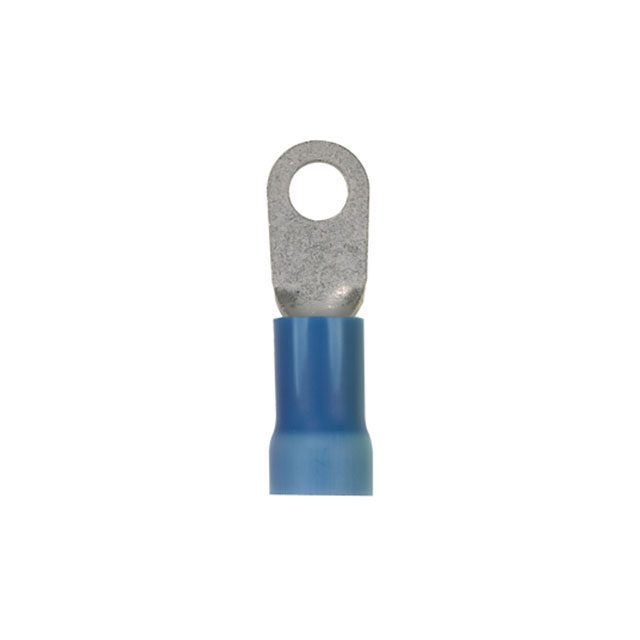

Panduit Corp PV6-56R-T	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl	1.74 in	44.2 mm		0.62 in	15.75 mm	8.64 mm	0.34 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam	0.3125 Stud
Panduit Corp PV6-38RX-T	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl			3/8 Stud	0.62 in	15.75 mm	11.07 mm	0.436 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam
Panduit Corp PV6-12R-X	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl			1/2 Stud			8.64 mm	0.34 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam		1.84 in	46.74 mm	0.82 in	20.83 mm
Panduit Corp PV6-56R-X	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl	1.74 in	44.2 mm		0.62 in	15.75 mm	8.64 mm	0.34 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam	0.3125 Stud
Panduit Corp PV6-10R-X	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl				0.47 in	11.94 mm	8.64 mm	0.34 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam	10 Stud	1.62 in	41.15 mm
Panduit Corp PV6-10RX-T	Insulated	Blue	Crimp	Flat Sided	Free Hanging (In-Line)	Tin	Vinyl	1.61 in	40.89 mm		0.47 in	11.94 mm	11.07 mm	0.436 in	0.045 in	1.14 mm	Copper	6 AWG	Brazed Seam	10 Stud
