395-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows | Read Out | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Number of Positions | Gender | Color | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Pitch | Pitch | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

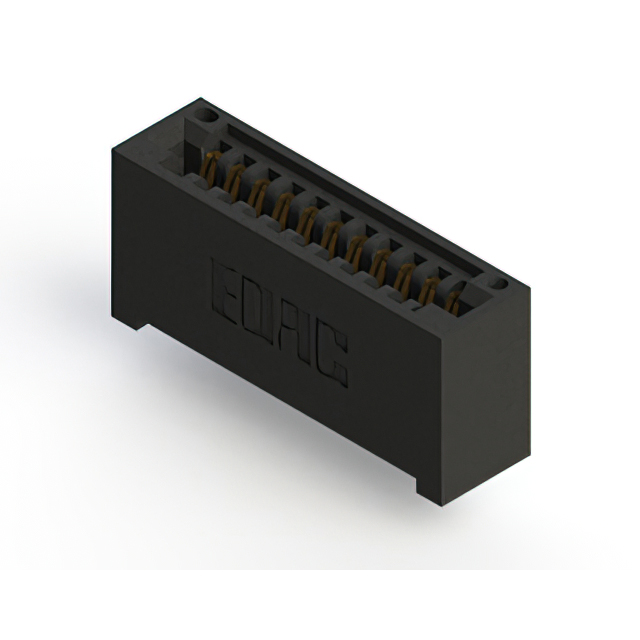

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | |||

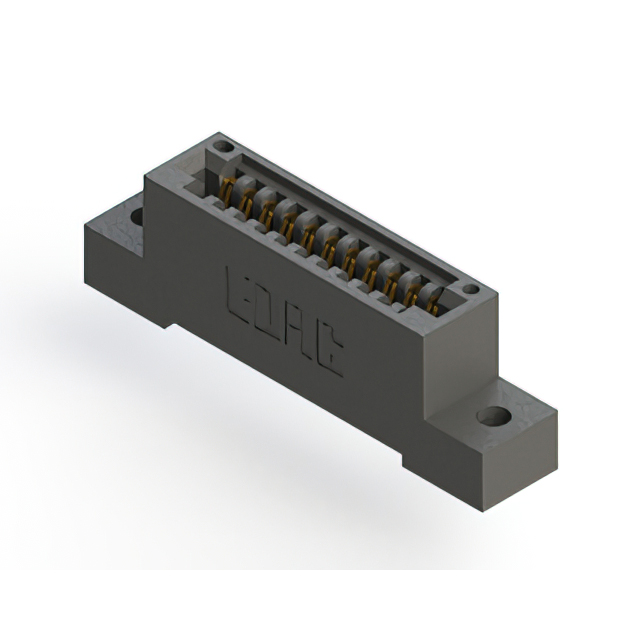

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |

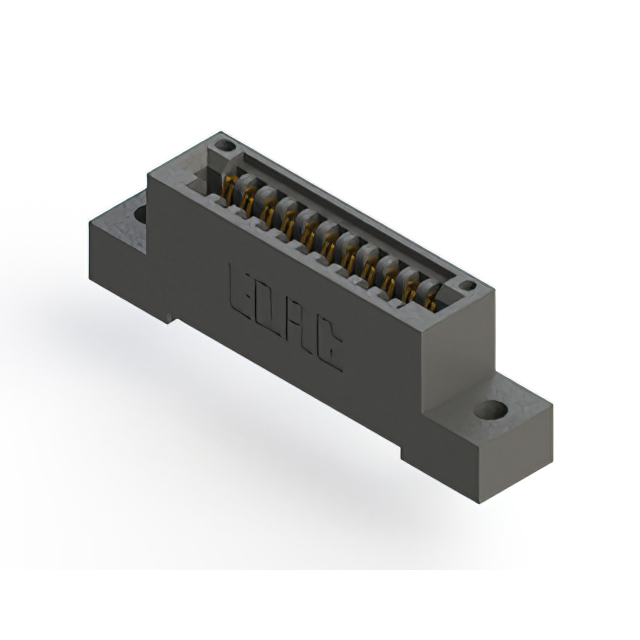

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |

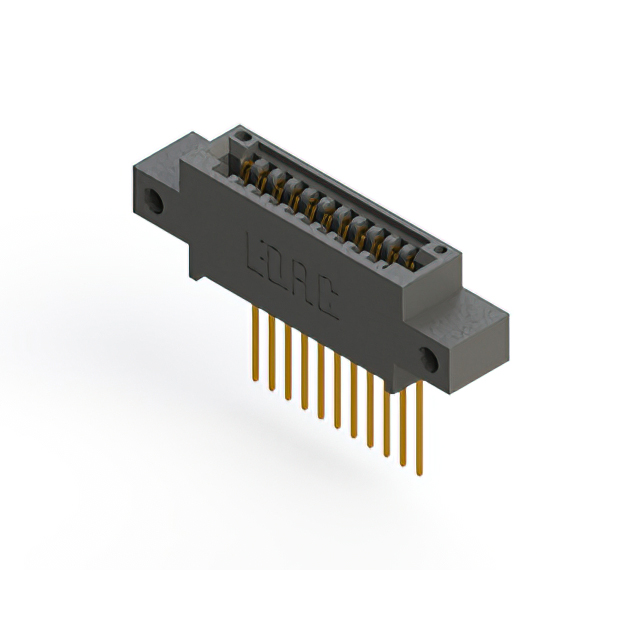

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Wire Wrap | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Wire Wrap | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |

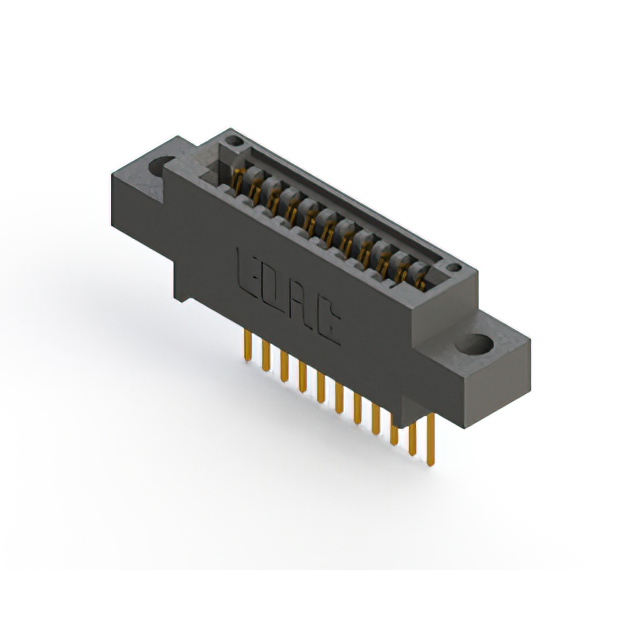

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | 3.96 mm | 0.156 " | |

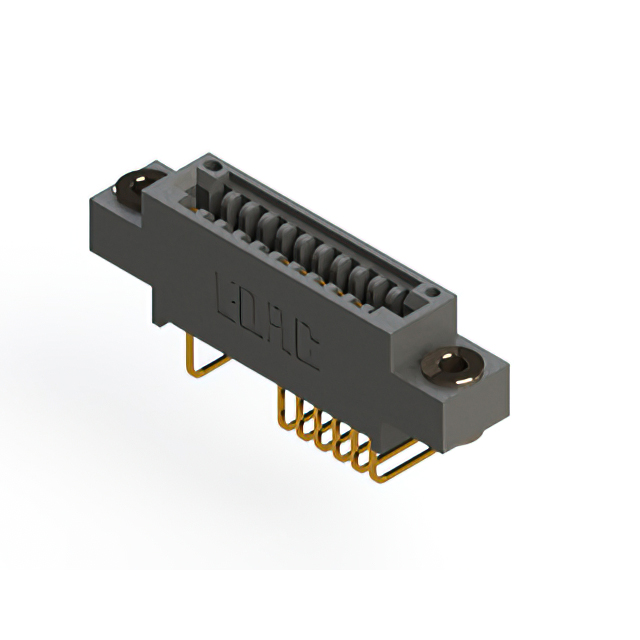

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Right Angle Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |

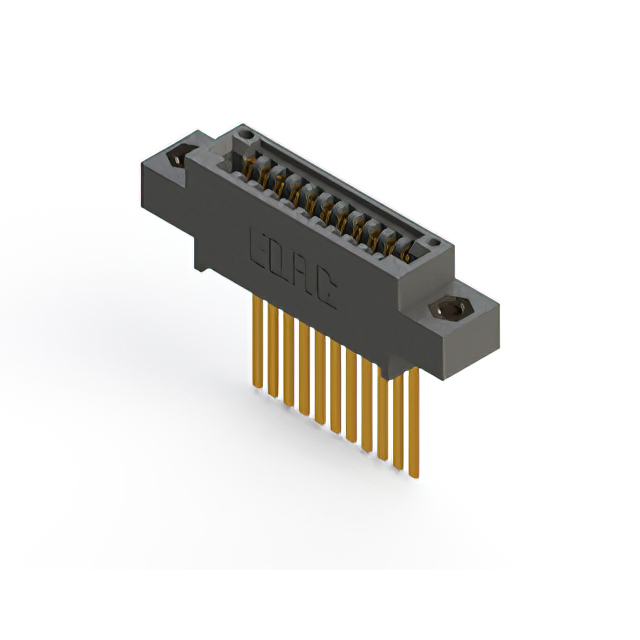

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | M3 Threaded Insert Top Mount Opening | ||

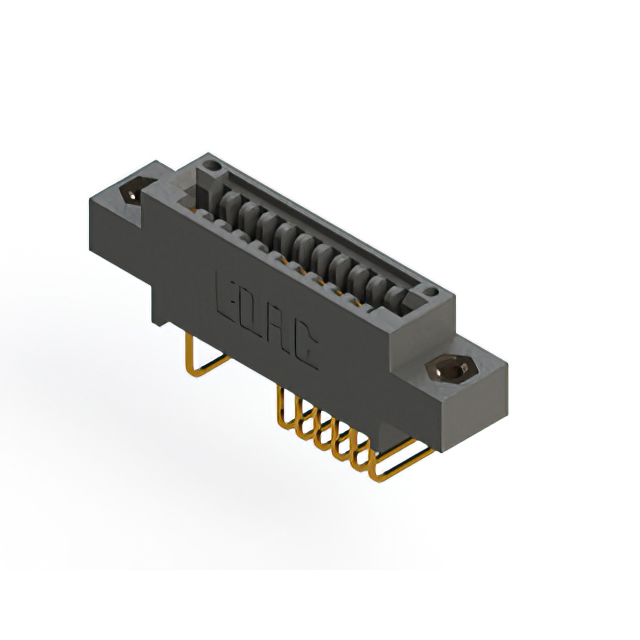

 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Right Angle Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Solder | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Single | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | 11 | Female | Black | Gold | 1 | 0.25 Ám | 10 Áin | Through Hole | 11 | -40 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Wire Wrap | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " |
