MPQ2172 Series

Catalog

IC REG BUCK ADJ 2A TSOT23-8

Part	Output Type	Voltage - Output (Min/Fixed)	Mounting Type	Output Configuration	Supplier Device Package	Voltage - Input (Min) [Min]	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Voltage - Output (Max) [Max]	Frequency - Switching	Function	Current - Output	Number of Outputs	Qualification	Voltage - Input (Max) [Max]	Package / Case	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Contents	Regulator Topology	Utilized IC / Part	Main Purpose
Monolithic Power Systems Inc. MPQ2172GJ-Z	Adjustable	0.6 V	Surface Mount	Positive	TSOT-23-8	2.5 V	Automotive	-40 °C	150 °C	Buck	5 V	2.6 MHz	Step-Down	2 A	1	AEC-Q100	5.5 V	SOT-23-8 Thin TSOT-23-8
Monolithic Power Systems Inc. MPQ2172GJ-AEC1-P	Adjustable	0.6 V	Surface Mount	Positive	TSOT-23-8	2.5 V	Automotive	-40 °C	150 °C	Buck	5 V	2.6 MHz	Step-Down	2 A	1	AEC-Q100	5.5 V	SOT-23-8 Thin TSOT-23-8

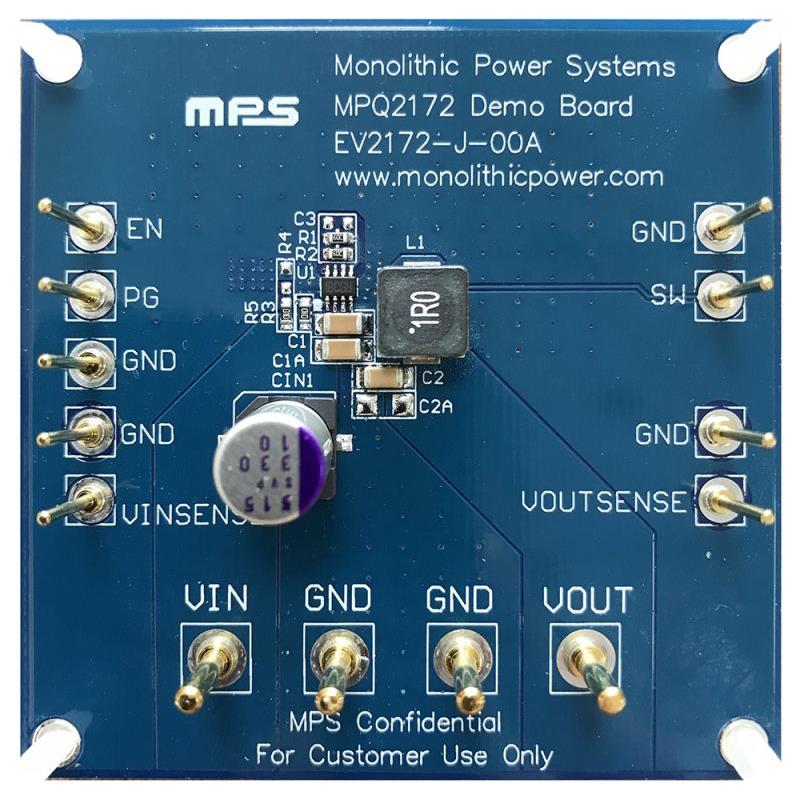

Monolithic Power Systems Inc. EV2172-J-00A												2.6 MHz		2 A					1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	5.5 V	2.5 V	1.2 V	Board(s)	Buck	MP2172 MPQ2172	DC/DC Step Down
Monolithic Power Systems Inc. MPQ2172GJ-AEC1-Z	Adjustable	0.6 V	Surface Mount	Positive	TSOT-23-8	2.5 V	Automotive	-40 °C	150 °C	Buck	5 V	2.6 MHz	Step-Down	2 A	1	AEC-Q100	5.5 V	SOT-23-8 Thin TSOT-23-8
