FDZ49 Series

Catalog

MOSFET P-CH 20V 4.6A 9BGA

Part	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Technology	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	FET Type	Vgs (Max)	Power Dissipation (Max)	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)

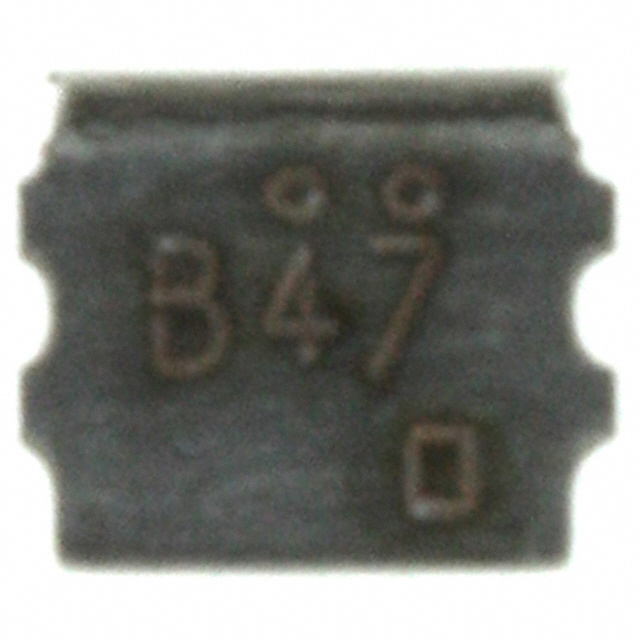

ON Semiconductor FDZ493P	754 pF	1.5 V	46 mOhm	MOSFET (Metal Oxide)	4.6 A	11 nC	Surface Mount	2.5 V 4.5 V	9-WFBGA	P-Channel	12 V	1.7 W	1.55	1.55	9-BGA	-55 °C	150 °C	20 V
