MSP430FR5989-EP Series
Extended temperature 25-MHz MCU with 256-KB flash, 16-KB SRAM, 12-bit ADC, DMA, UART/SPI/I2C, timer
Manufacturer: Texas Instruments
Catalog
Extended temperature 25-MHz MCU with 256-KB flash, 16-KB SRAM, 12-bit ADC, DMA, UART/SPI/I2C, timer
| Part | Package / Case | Program Memory Size | Mounting Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Number of I/O | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Connectivity | Core Size | RAM Size | Supplier Device Package | Data Converters [custom] | Data Converters [custom] | Speed | Peripherals | Program Memory Type | Oscillator Type | Data Converters [custom] | Data Converters [custom] | Operating Temperature [Max] | Operating Temperature [Min] | RAM Size | Data Converters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

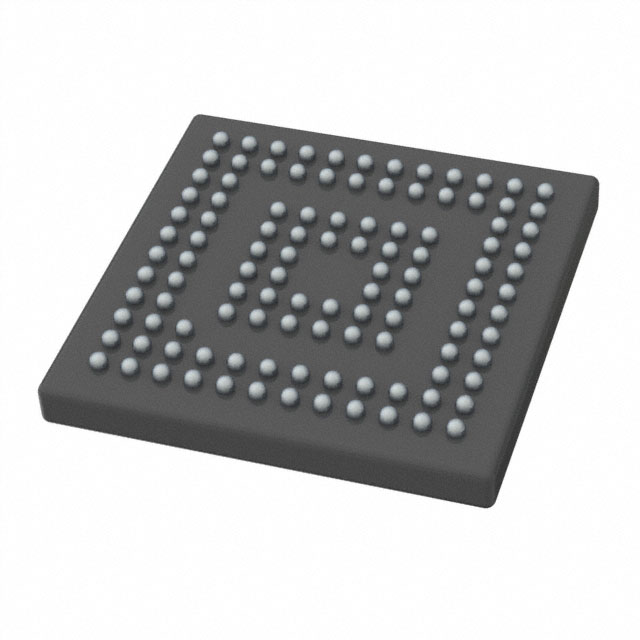

 Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | CPUXV2 | 125 °C | -55 °C | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-BGA Microstar Junior (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | ||||||
 Texas Instruments | 113-VFBGA | Surface Mount | 113-BGA Microstar Junior (7x7) | ||||||||||||||||||||||
 Texas Instruments | 40-VFQFN Exposed Pad | 16 KB | Surface Mount | 2 V | 3.6 V | 32 | MSP430 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 1 K | 40-VQFN (6x6) | 24 MHz | FRAM | Internal | 10 b | 14 | 85 C | -55 C | |||||||

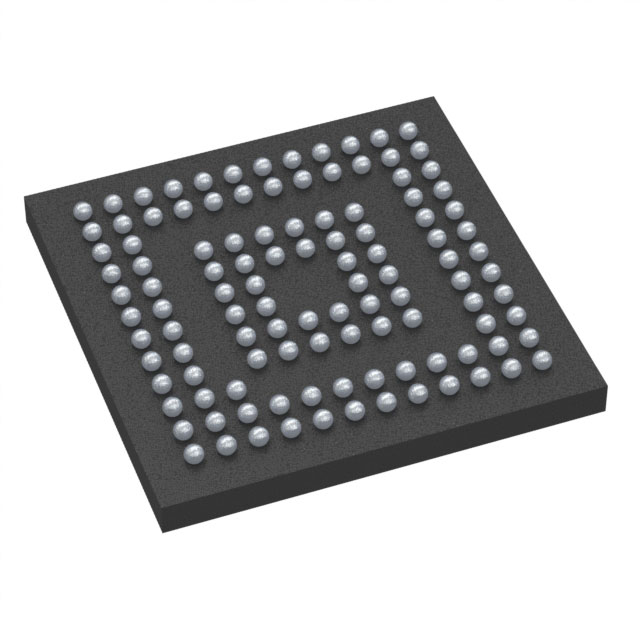

 Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | MSP430 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-NFBGA (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | 125 °C | -40 °C | ||||||
 Texas Instruments | 64-VFQFN Exposed Pad | 128 KB | Surface Mount | 1.8 V | 3.6 V | 48 | CPUXV2 | I2C IrDA SPI UART/USART | 16-Bit | 64-VQFN (9x9) | 16 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FRAM | Internal | 105 °C | -40 °C | 2K x 8 | 12x12b | |||||||
 Texas Instruments | 40-VFQFN Exposed Pad | 16 KB | Surface Mount | 2 V | 3.6 V | 32 | MSP430 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 1 K | 40-VQFN (6x6) | 24 MHz | FRAM | Internal | 10 b | 14 | 85 C | -55 C | |||||||
 Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | MSP430 | 125 °C | -55 °C | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-NFBGA (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | External Internal | ||||||
 Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | MSP430 | 125 °C | -55 °C | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-NFBGA (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | ||||||
Texas Instruments | 113-VFBGA | 256 KB | Surface Mount | 1.8 V | 3.6 V | 87 | CPUXV2 | I2C IrDA LINbus SCI SPI UART/USART | 16-Bit | 16 K | 113-BGA Microstar Junior (7x7) | 16 | 12 b | 25 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FLASH | Internal | 125 °C | -40 °C | ||||||
Texas Instruments | 64-VFQFN Exposed Pad | 128 KB | Surface Mount | 1.8 V | 3.6 V | 48 | CPUXV2 | I2C IrDA SPI UART/USART | 16-Bit | 64-VQFN (9x9) | 16 MHz | Brown-out Detect/Reset DMA POR PWM WDT | FRAM | Internal | 95 °C | -55 C | 2K x 8 | 12x12b |

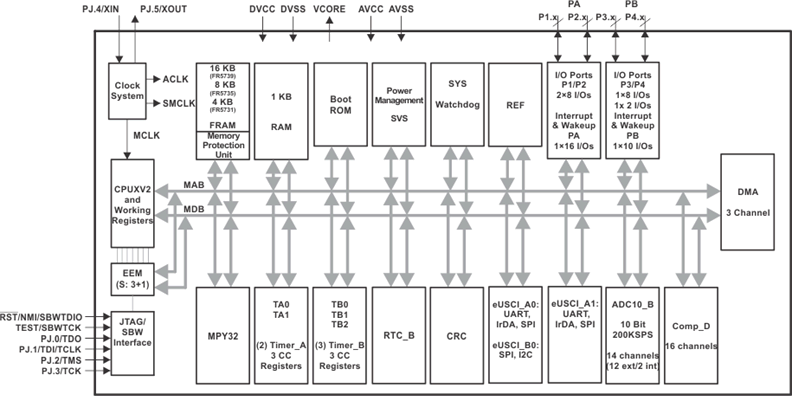

Key Features
• Embedded Microcontroller16-Bit RISC Architecture up to 24-MHz ClockWide Supply Voltage Range (2 to 3.6 V)–55°C to 85°C OperationOptimized Ultra-Low-Power ModesActive Mode: 81.4 µA/MHz (Typical)Standby (LPM3 With VLO): 6.3 µA (Typical)Real-Time Clock (LPM3.5 With Crystal): 1.5 µA(Typical)Shutdown (LPM4.5): 0.32 µA (Typical)Ultra-Low-Power Ferroelectric RAM (FRAM)Up to 16KB of Nonvolatile MemoryUltra-Low-Power WritesFast Write at 125 ns per Word (16KB in 1 ms)Built-In Error Correction Coding (ECC) andMemory Protection Unit (MPU)Universal Memory = Program + Data + Storage1015Write Cycle EnduranceRadiation Resistant and NonmagneticIntelligent Digital Peripherals32-Bit HardwareMultiplier (MPY)Three-Channel Internal DMAReal-Time Clock (RTC) With Calendar andAlarm FunctionsFive 16-Bit Timers With up to ThreeCapture/Compare Registers16-Bit Cyclic Redundancy Checker(CRC)High-Performance Analog16-Channel Analog Comparator With VoltageReference and Programmable Hysteresis14-Channel 10-Bit Analog-to-Digital ConverterWith Internal Reference and Sample-and-Hold200 ksps at 100-µA ConsumptionEnhanced Serial CommunicationeUSCI_A0 and eUSCI_A1 Support:UART With Automatic Baud-Rate DetectionIrDA Encode and DecodeSPI at Rates up to 10 MbpseUSCI_B0 Supports:I2C With Multiple Slave AddressingSPI at Rates up to 10 MbpsHardware UART Bootstrap Loader (BSL)Power Management SystemFully Integrated LDOSupply Voltage Supervisor for Core andSupply Voltages With Reset CapabilityAlways-On Zero-Power Brownout DetectionSerial On-Board Programming With No ExternalVoltage NeededFlexible Clock SystemFixed-Frequency DCO With Six SelectableFactory-Trimmed Frequencies (Device Dependent)Low-Power Low-Frequency Internal ClockSource (VLO)32-kHz Crystals (LFXT)High-Frequency Crystals (HFXT)Development Tools and SoftwareFree Professional Development Environment(Code Composer Studio IDE)Low-Cost Full-Featured Kit(MSP-EXP430FR5739)Full Development Kit (MSP-FET430U40A)Target Board (MSP-TS430RHA40A)Family MembersVariants and Available Packages Summarized inFor Complete Module Descriptions, See theMSP430FR57xx Family User‘s Guide(SLAU272)Supports Defense, Aerospace, and Medical ApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Extended (–55°C to 85°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct TraceabilityEmbedded Microcontroller16-Bit RISC Architecture up to 24-MHz ClockWide Supply Voltage Range (2 to 3.6 V)–55°C to 85°C OperationOptimized Ultra-Low-Power ModesActive Mode: 81.4 µA/MHz (Typical)Standby (LPM3 With VLO): 6.3 µA (Typical)Real-Time Clock (LPM3.5 With Crystal): 1.5 µA(Typical)Shutdown (LPM4.5): 0.32 µA (Typical)Ultra-Low-Power Ferroelectric RAM (FRAM)Up to 16KB of Nonvolatile MemoryUltra-Low-Power WritesFast Write at 125 ns per Word (16KB in 1 ms)Built-In Error Correction Coding (ECC) andMemory Protection Unit (MPU)Universal Memory = Program + Data + Storage1015Write Cycle EnduranceRadiation Resistant and NonmagneticIntelligent Digital Peripherals32-Bit HardwareMultiplier (MPY)Three-Channel Internal DMAReal-Time Clock (RTC) With Calendar andAlarm FunctionsFive 16-Bit Timers With up to ThreeCapture/Compare Registers16-Bit Cyclic Redundancy Checker(CRC)High-Performance Analog16-Channel Analog Comparator With VoltageReference and Programmable Hysteresis14-Channel 10-Bit Analog-to-Digital ConverterWith Internal Reference and Sample-and-Hold200 ksps at 100-µA ConsumptionEnhanced Serial CommunicationeUSCI_A0 and eUSCI_A1 Support:UART With Automatic Baud-Rate DetectionIrDA Encode and DecodeSPI at Rates up to 10 MbpseUSCI_B0 Supports:I2C With Multiple Slave AddressingSPI at Rates up to 10 MbpsHardware UART Bootstrap Loader (BSL)Power Management SystemFully Integrated LDOSupply Voltage Supervisor for Core andSupply Voltages With Reset CapabilityAlways-On Zero-Power Brownout DetectionSerial On-Board Programming With No ExternalVoltage NeededFlexible Clock SystemFixed-Frequency DCO With Six SelectableFactory-Trimmed Frequencies (Device Dependent)Low-Power Low-Frequency Internal ClockSource (VLO)32-kHz Crystals (LFXT)High-Frequency Crystals (HFXT)Development Tools and SoftwareFree Professional Development Environment(Code Composer Studio IDE)Low-Cost Full-Featured Kit(MSP-EXP430FR5739)Full Development Kit (MSP-FET430U40A)Target Board (MSP-TS430RHA40A)Family MembersVariants and Available Packages Summarized inFor Complete Module Descriptions, See theMSP430FR57xx Family User‘s Guide(SLAU272)Supports Defense, Aerospace, and Medical ApplicationsControlled BaselineOne Assembly and Test SiteOne Fabrication SiteAvailable in Extended (–55°C to 85°C) Temperature Range(1)Extended Product Life CycleExtended Product-Change NotificationProduct Traceability
Description
AI
The MSP430F5438A-ET is an ultralow-power microcontroller. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in 3.5 µs (typical).
The MSP430F5438A-ET is a microcontroller configuration with three 16-bit timers, a high-performance 12-bit analog-to-digital converter (ADC), up to 4 universal serial communication interfaces (USCIs), a hardware multiplier, a DMA, a real-time clock (RTC) module with alarm capabilities, and up to 87 I/O pins. For complete module descriptions, see theMSP430F5xx and MSP430F6xx Family User’s Guide.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, and hand-held meters.
The MSP430F5438A-ET is an ultralow-power microcontroller. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in 3.5 µs (typical).
The MSP430F5438A-ET is a microcontroller configuration with three 16-bit timers, a high-performance 12-bit analog-to-digital converter (ADC), up to 4 universal serial communication interfaces (USCIs), a hardware multiplier, a DMA, a real-time clock (RTC) module with alarm capabilities, and up to 87 I/O pins. For complete module descriptions, see theMSP430F5xx and MSP430F6xx Family User’s Guide.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, and hand-held meters.
