L77TSEG09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

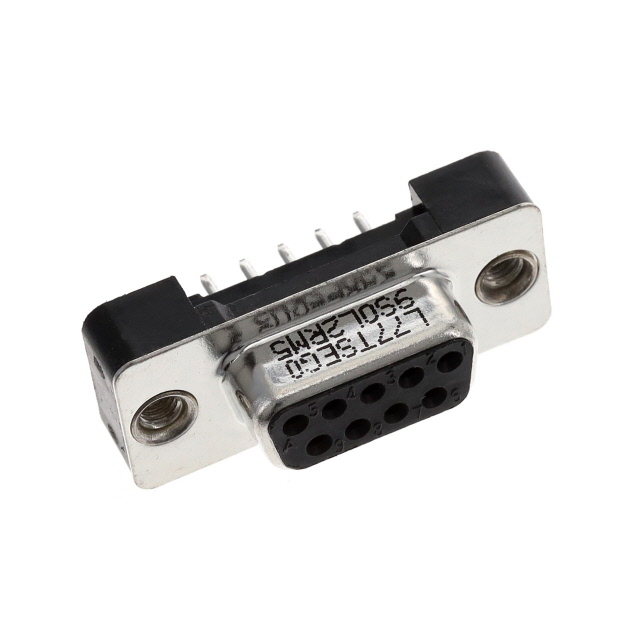

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Contact Form | Number of Positions | Mounting Type | Number of Rows [custom] | Connector Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature | Features | Contact Finish Thickness | Termination | Current Rating (Amps) | Connector Style | Contact Finish | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 600 V | -55 C | 125 °C | Copper Alloy | Thermoplastic Glass Filled | Stamped | 9 | Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | 1 | DE E | Mating Side Female Screwlock (M3) | Board Lock | Flash | Solder | 5 A | D-Sub | Gold | Signal |
 Amphenol ICC (Commercial Products) | 600 V | -55 C | 125 °C | Copper Alloy | Thermoplastic Glass Filled | Stamped | 9 | Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | 1 | DE E | Mating Side Female Screwlock (M3) | Board Lock | Flash | Solder | 5 A | D-Sub | Gold | Signal |
 Amphenol ICC (Commercial Products) | 600 V | -55 C | 125 °C | Copper Alloy | Thermoplastic Glass Filled | Stamped | 9 | Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | 1 | DE E | Board Side (M3) | Board Lock | Flash | Solder | 5 A | D-Sub | Gold | Signal |
 Amphenol ICC (Commercial Products) | 600 V | -55 C | 125 °C | Copper Alloy | Thermoplastic Glass Filled | Stamped | 9 | Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | 1 | DE E | Board Side (M3) | Flash | Solder | 5 A | D-Sub | Gold | Signal | |
Amphenol ICC (Commercial Products) | 600 V | -55 C | 125 °C | Copper Alloy | Thermoplastic Glass Filled | Stamped | 9 | Through Hole | 2 | Receptacle Female Sockets | UL94 V-0 | 1 | DE E | Board Side (M3) | Flash | Solder | 5 A | D-Sub | Gold | Signal |
