Z-15G Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH SNAP ACTION SPDT 15A 125V

Part	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Switch Function	Mounting Type	Pretravel	Pretravel	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Operating Position	Operating Position	Electrical Life	Termination Style	Ingress Protection	Release Force	Circuit	Operating Force	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel

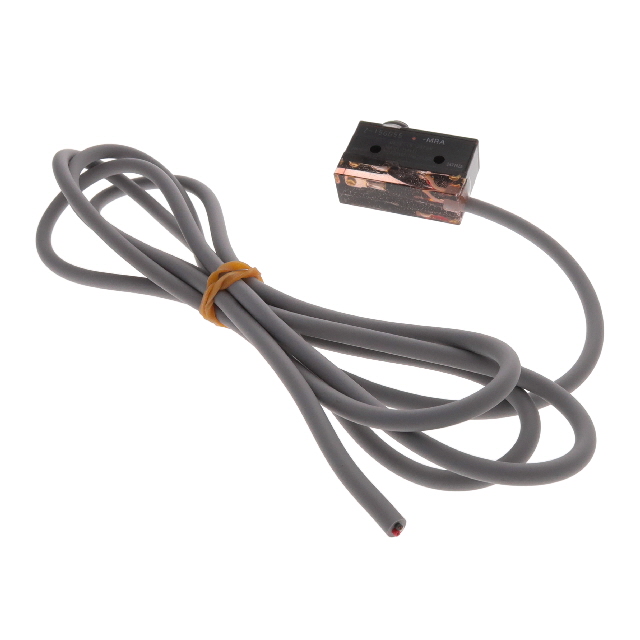

Omron Automation and Safety Z-15GD55-MRA	20000000 Cycles	0.062 "	1.6 mm	On-Mom	Chassis Mount	0.071 "	1.8 mm	30 V	125 V	Round (Pin Plunger)	21.5 mm	0.846 in	500000 Cycles	Solder Lug	IP62	114 gf	SPDT	540 gf	6 A 15 A	-15 °C	80 °C	0.05 mm	0.002 in

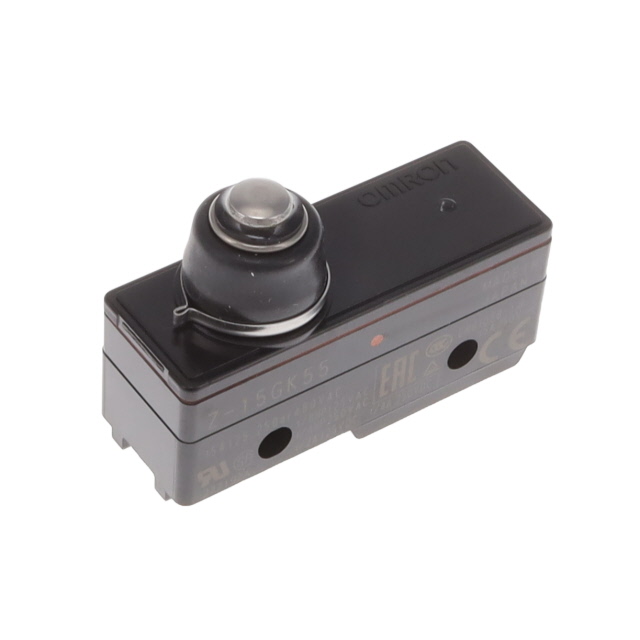

Omron Automation and Safety Z-15GK55	20000000 Cycles	0.062 "	1.6 mm	On-Mom	Chassis Mount	0.09 in	2.3 mm	30 V	125 V	Round (Pin Plunger)	28.2 mm	1.11 in	500000 Cycles	Solder Lug	IP62	114 gf	SPDT	540 gf	6 A 15 A	-15 °C	80 °C	0.05 mm	0.002 in

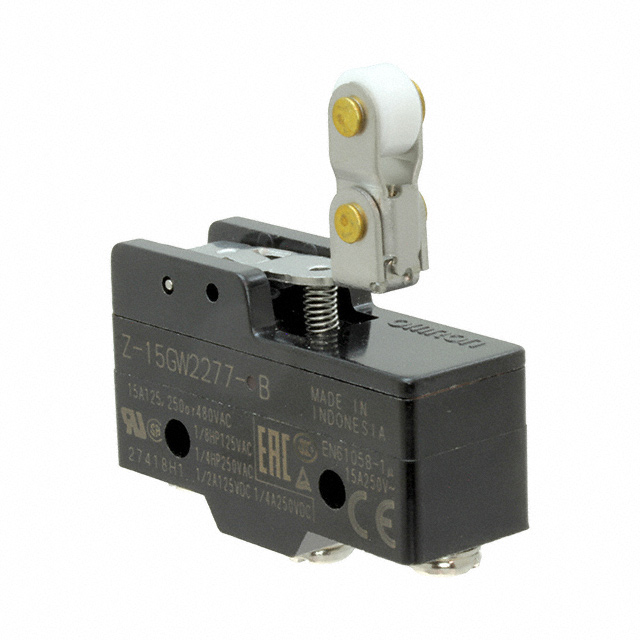

Omron Automation and Safety Z-15GW2277-B	10000000 Cycles	0.094 "	2.4 mm	On-Mom	Chassis Mount			30 V	125 V	Lever Roller	41.3 mm	1.625 "	500000 Cycles	Screw Terminal	IP00	50 gf	SPDT	180 gf	6 A 15 A	-25 °C	80 °C	0.8 mm	0.031 in
Omron Automation and Safety Z-15GNJ55-MR2 0.5M										Rod Spring

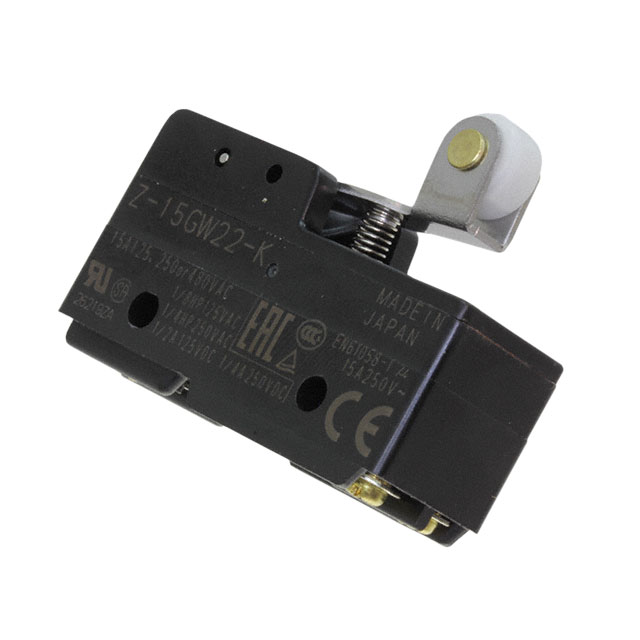

Omron Automation and Safety Z-15GW22	10000000 Cycles	0.094 "	2.4 mm	On-Mom	Chassis Mount			30 V	125 V	Lever Roller	30.2 mm	1.188 in	500000 Cycles	Solder Lug	IP00	42 gf	SPDT	160 gf	6 A 15 A	-25 °C	80 °C	0.5 mm	0.02 in

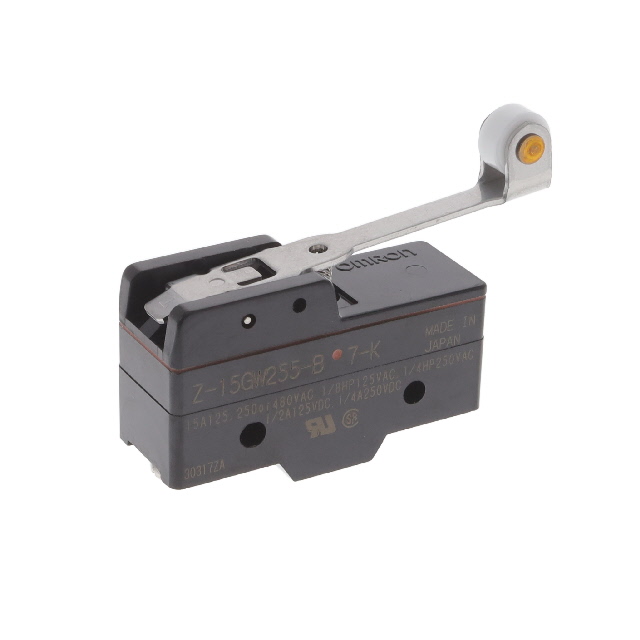

Omron Automation and Safety Z-15GW255-B7-K	20000000 Cycles	0.158 in	4 mm	On-Mom	Chassis Mount			30 V	125 V	Lever Roller	30.2 mm	1.188 in	500000 Cycles	Screw Terminal	IP62	21 gf	SPDT	130 gf	6 A 15 A	-15 °C	80 °C	1.6 mm	0.062 in

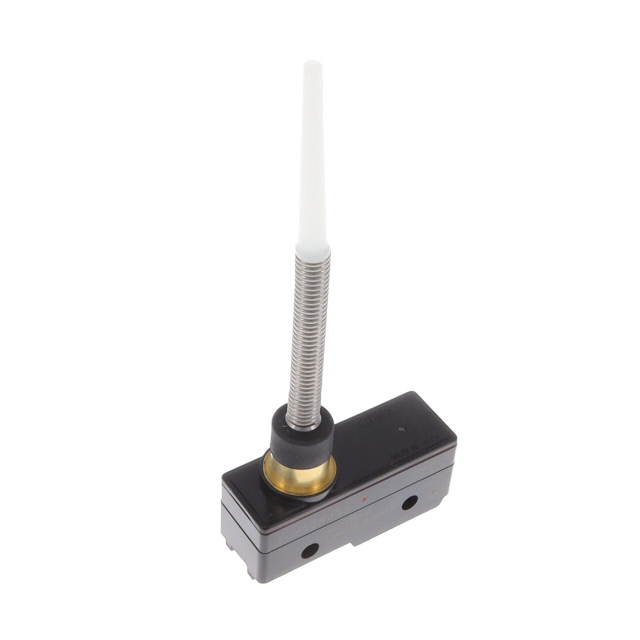

Omron Automation and Safety Z-15GNJ55	1000000 Cycles			On-Mom	Chassis Mount	0.787 in	20 mm	30 V	125 V	Rod Spring			100000 Cycles	Solder Lug	IP62		SPDT	50 gf	2 A 15 A	-15 °C	80 °C

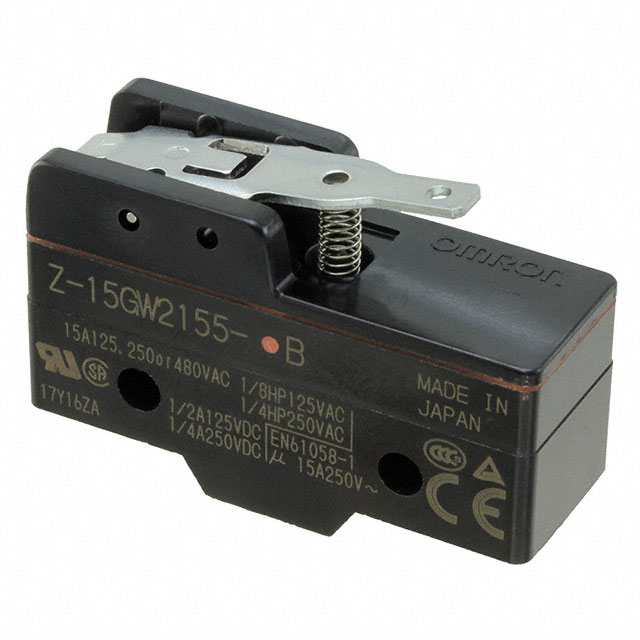

Omron Automation and Safety Z-15GW2155-B	10000000 Cycles	0.079 "	2 mm	On-Mom	Chassis Mount			30 V	125 V	Lever Straight	19 mm	0.748 in	500000 Cycles	Screw Terminal	IP62	28 gf	SPDT	160 gf	6 A 15 A	-15 °C	80 °C	1 mm	0.04 in
Omron Automation and Safety Z-15GW32-B
Omron Automation and Safety Z-15GQ-C	20000000 Cycles			On-Mom	Panel Mount			30 V	125 V	Overtravel Plunger			500000 Cycles	Solder Lug	IP00		SPDT		6 A 15 A	-25 °C	80 °C
