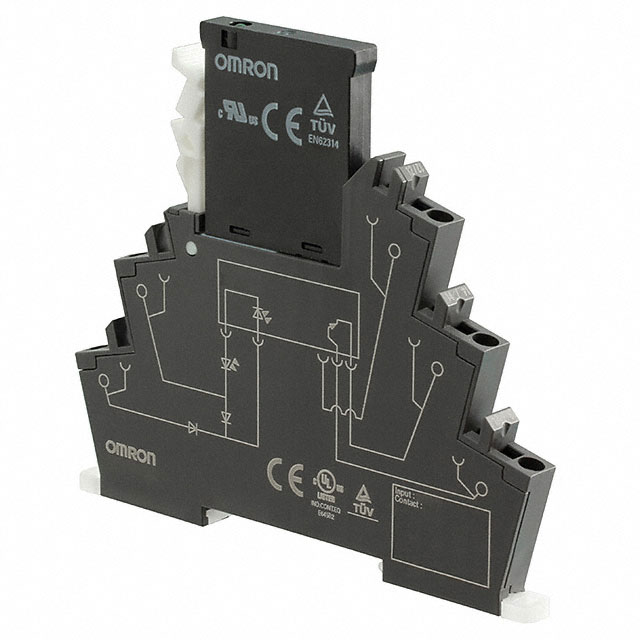

G3RV-SR Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SSR RELAY SPST-NO 2A 100-240V

Part	Mounting Type	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Load Current	Output Type	Approval Agency	Voltage - Input	On-State Resistance (Max) [Max]	Voltage - Input
Omron Electronics Inc-EMC Div G3RV-SR500-A AC230	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Spring Terminal	2 A	AC Zero Cross	CE cURus TUV	230 VAC
Omron Electronics Inc-EMC Div G3RV-SR500-D AC100	DIN Rail	24 V	5 V	Module	-40 °C	55 °C	Spring Terminal	3 A	DC	CE cURus TUV	100 VAC	300 mOhm
Omron Electronics Inc-EMC Div G3RV-SR700-D AC/DC48	DIN Rail	24 V	5 V	Module	-40 °C	55 °C	Screw Terminal	3 A	DC	CE cURus TUV		300 mOhm
Omron Electronics Inc-EMC Div G3RV-SR500-A DC12	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Spring Terminal	2 A	AC Zero Cross	CE cURus TUV	12 VDC
Omron Electronics Inc-EMC Div G3RV-SR500-A AC/DC24	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Spring Terminal	2 A	AC Zero Cross	CE cURus TUV			24VAC/DC
Omron Electronics Inc-EMC Div G3RV-SR500-AL DC12	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Spring Terminal	2 A	AC	CE cURus TUV	12 VDC
Omron Electronics Inc-EMC Div G3RV-SR700-A DC12	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Screw Terminal	2 A	AC Zero Cross	CE cURus TUV	12 VDC
Omron Electronics Inc-EMC Div G3RV-SR500-D AC/DC48	DIN Rail	24 V	5 V	Module	-40 °C	55 °C	Spring Terminal	3 A	DC	CE cURus TUV		300 mOhm
Omron Electronics Inc-EMC Div G3RV-SR700-AL AC100	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Screw Terminal	2 A	AC	CE cURus TUV	100 VAC
Omron Electronics Inc-EMC Div G3RV-SR700-AL DC24	DIN Rail	240 V	100 V	Module	-40 °C	55 °C	Screw Terminal	2 A	AC	CE cURus TUV	24 V
