EX-24 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

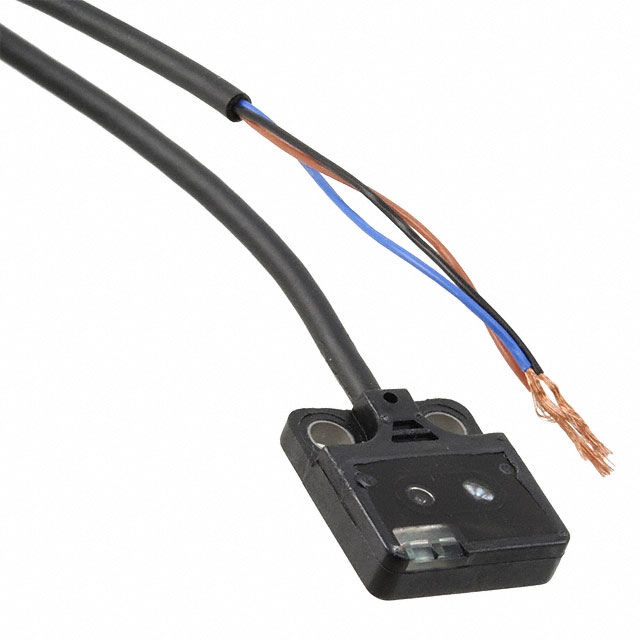

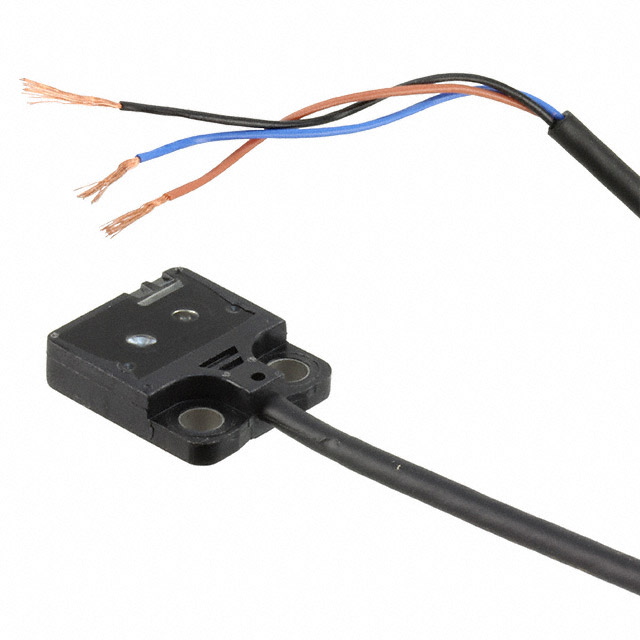

SENSOR REFLECTIVE 25MM NPN
| Part | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Light Source | Cable Length | Cable Length | Sensing Method | Connection Method | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.079 " | 25 mm | 0.984 " | 2 mm | 500 µs | 55 °C | -25 °C | NPN - Open Collector/Dark-ON | 12 V | 24 V | Red LED | 78.74 in | 2 m | Convergent Reflective | Cable | IP67 |
 Panasonic Industrial Automation Sales | 0.079 " | 25 mm | 0.984 " | 2 mm | 500 µs | 55 °C | -25 °C | PNP - Open Collector/Light-ON | 12 V | 24 V | Red LED | 78.74 in | 2 m | Convergent Reflective | Cable | IP67 |
