APR45 Series

Manufacturer: CTS Thermal Management Products

Catalog

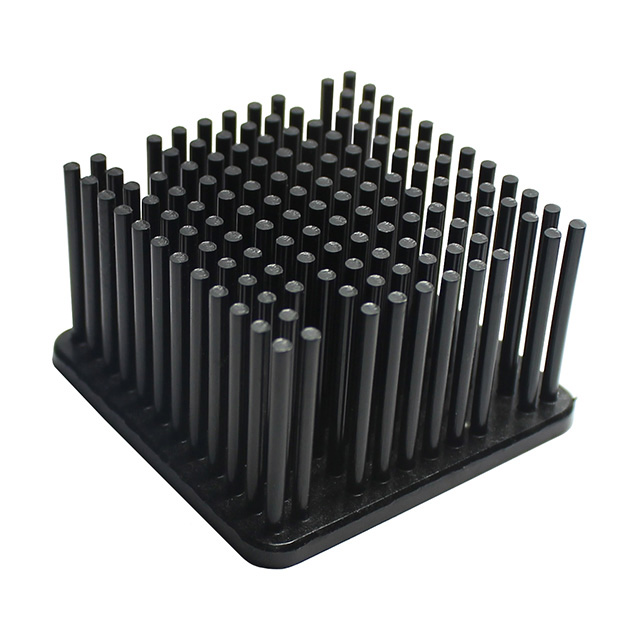

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Package Cooled	Material	Fin Height [custom]	Fin Height [custom]	Type	Thermal Resistance @ Natural	Width [x]	Width [x]	Length	Length	Attachment Method	Material Finish	Shape	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]
CTS Thermal Management Products APR45-45-23CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy	22.61 mm	0.89 in	Top Mount	7.37 °C/W	1.756 in	44.6 mm	1.756 in	44.6 mm	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	1.88 °C/W
CTS Thermal Management Products APR45-45-21CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy			Top Mount	7.69 °C/W	1.756 in	44.6 mm	1.756 in	44.6 mm	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	2.09 °C/W	0.811 in	20.6 mm
CTS Thermal Management Products APR45-45-12CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy			Top Mount	8.73 °C/W	1.756 in	44.6 mm	1.756 in	44.6 mm	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	2.73 °C/W			0.457 in	11.6 mm
CTS Thermal Management Products APR45-45-18CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy			Top Mount	7.99 °C/W	1.756 in	44.6 mm	1.756 in	44.6 mm	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	2.27 °C/W	0.693 in	17.6 mm
CTS Thermal Management Products APR45-45-15CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy			Top Mount	8.36 °C/W	1.756 in	44.6 mm	1.756 in	44.6 mm	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	2.48 °C/W		14.6 mm	0.575 in
CTS Thermal Management Products APR45-45-33CB/A01	24 Months	ASIC BGA CPU LGA	Aluminum Alloy			Top Mount	6.26 °C/W	1.756 in	44.6 mm	1.756 in	44.6 mm	Thermal Tape Adhesive (Included)	Black Anodized	Pin Fins Square	1.41 °C/W	1.283 in	32.6 mm
