SU10VF Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 250V 2A 1MH

Part	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Inductance @ Frequency	Filter Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height (Max) [diameter]	Height (Max) [diameter]	Package / Case	Mounting Type	DC Resistance (DCR) (Max)

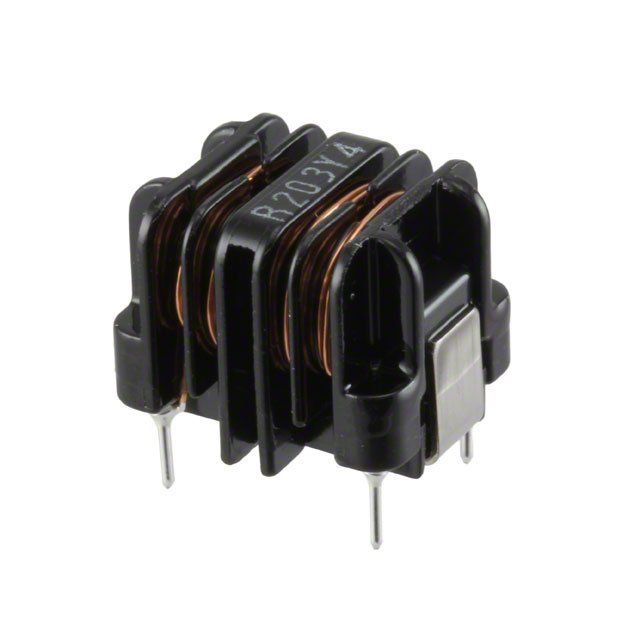

KEMET SU10VFC-R20010	2 A	120 °C	-25 °C	2	150 mOhm	250 V	1 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole
KEMET SU10VFC-R05140	500 mA	120 °C	-25 °C	2	1.6 Ohm	250 V	14 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole
KEMET SU10VFC-R04250	400 mA	120 °C	-25 °C	2	2.8 Ohm	250 V	1 kHz 25 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole
KEMET SU10VFC-R10045	1 A	120 °C	-25 °C	2		250 V	4.5 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole	550 mOhm
KEMET SU10VFC-R03370	300 mA	120 °C	-25 °C	2		250 V	37 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole	4.2 Ohm

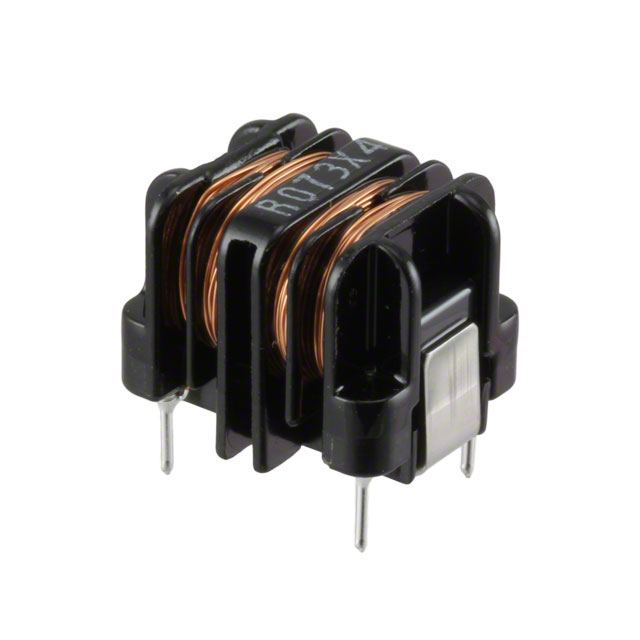

KEMET SU10VFC-R07088	700 mA	120 °C	-25 °C	2	1.1 Ohm	250 V	1 kHz 8.8 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole
KEMET SU10VFC-R13025	1.3 A	120 °C	-25 °C	2	300 mOhm	250 V	1 kHz 2.5 mH	Power Line	15.5 mm	0.61 in	18 mm	0.709 in	0.591 in	15 mm	Vertical 4 PC Pin	Through Hole
