RF3-1A Series

Catalog

SWITCH ROCKER SPST 16A 12V

Part	Mechanical Life	Electrical Life	Ingress Protection	Termination Style	Color - Actuator/Cap	Illumination Type, Color	Actuator Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Marking	Current Rating (Amps)	Voltage Rating - DC	Circuit	Illumination Voltage (Nominal)	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC

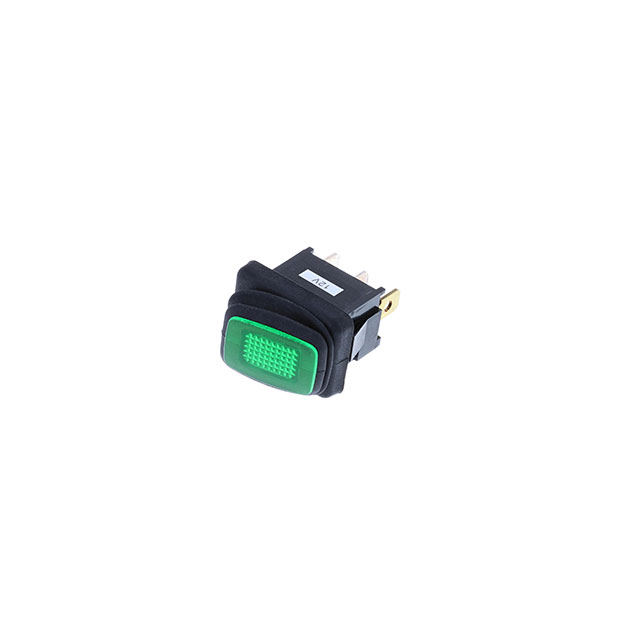

Switch Components RF3-1A-DC-2-GL	10000 Steps	6000 Cycles	IP65 - Dust Tight Water Resistant	Quick Connect	Green	Green LED	Flat - Illuminated	CSA cURus ENEC	85 °C	-25 °C	On-Off	No Marking	16 A	12 V	SPST	12 VDC	Panel Mount Snap-In	19.2 mm	13 mm

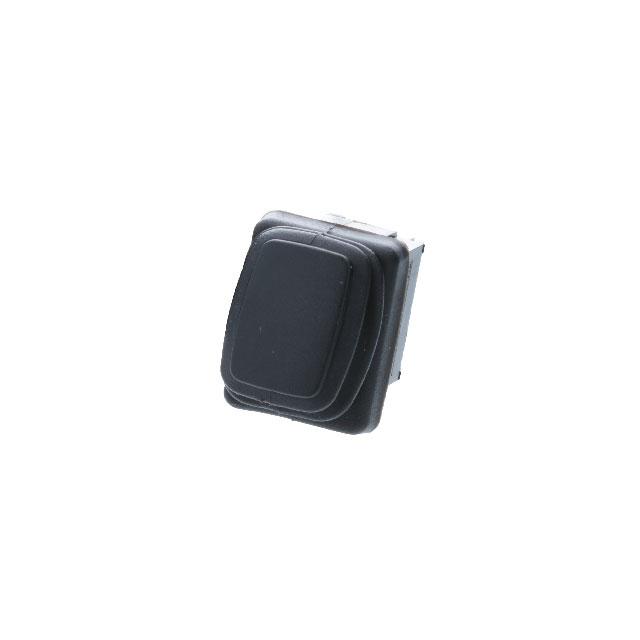

Switch Components RF3-1A-DC-2-B	10000 Steps	6000 Cycles	IP65 - Dust Tight Water Resistant	Quick Connect	Black		Flat	CSA cURus ENEC	85 °C	-25 °C	On-Off	No Marking	16 A 16 A	12 V	SPST		Panel Mount Snap-In	19.2 mm	13 mm	125 V
Switch Components RF3-1A-AC-2-B			IP65 - Dust Tight Water Resistant	Quick Connect	Black		Flat	CSA cURus ENEC	85 °C	-25 °C	On-Off	No Marking	16 A		SPST		Panel Mount Snap-In	24.5 mm	18.5 mm
Switch Components RF3-1A-DC-2-RL	10000 Steps	6000 Cycles	IP65 - Dust Tight Water Resistant	Quick Connect	Red	LED Red	Flat - Illuminated	CSA cURus ENEC	85 °C	-25 °C	On-Off	No Marking	16 A	12 V	SPST	12 VDC	Panel Mount Snap-In	19.2 mm	13 mm
