RK73H1E Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

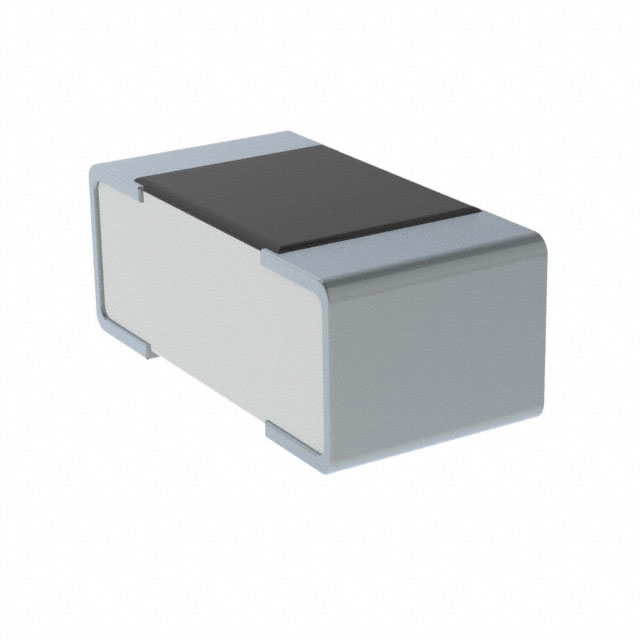

RES THICK FILM 0402 30.1K OHM 1% 0.1W(1/10W) ±100PPM/°C SULFUR RESISTANT PAD SMD T/R AUTOMOTIVE AEC-Q200

...

Part	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Tolerance	Features	Number of Terminations [custom]	Supplier Device Package	Temperature Coefficient	Package / Case	Resistance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
KOA Speer Electronics, Inc. RK73H1ERTTP3012F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	0402	100 ppm/°C	0402 (1005 Metric)	30.1 kOhms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ERTTP91R0F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	0402	100 ppm/°C	0402 (1005 Metric)	91 Ohms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ETTP1870F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Automotive AEC-Q200	2	0402	100 ppm/°C	0402 (1005 Metric)	187 Ohms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ETTP2744F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Automotive AEC-Q200	2	0402	200 ppm/°C	0402 (1005 Metric)	2.74 MOhms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ETTP5230F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Automotive AEC-Q200	2	0402	100 ppm/°C	0402 (1005 Metric)	523 Ohms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ERTTP5603F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	0402	100 ppm/°C	0402 (1005 Metric)	560 kOhms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ETTP3R32F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Automotive AEC-Q200	2	0402	200 ppm/°C	0402 (1005 Metric)	3.32 Ohms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ERTTP5362D	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	0.5 %	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	0402	100 ppm/°C	0402 (1005 Metric)	53.6 kOhms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ERTTP3571F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant	2	0402	100 ppm/°C	0402 (1005 Metric)	3.57 kOhms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
KOA Speer Electronics, Inc. RK73H1ETTP4991F	AEC-Q200	155 C	-55 C	0.1 W	0.1 W	1 %	Automotive AEC-Q200	2	0402	100 ppm/°C	0402 (1005 Metric)	4.99 kOhms	Thick Film	0.016 in	0.4 mm	0.02 in	0.5 mm	0.039 "	1 mm
