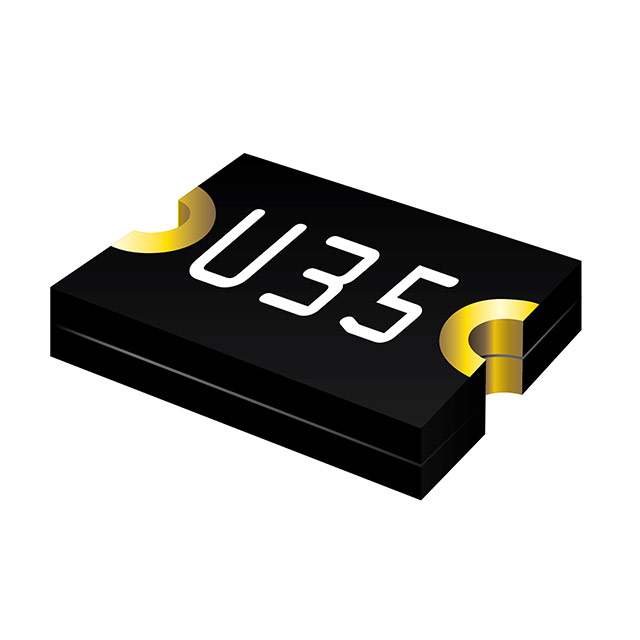

MF-USML Series

Catalog

PTC RESET FUSE 6V 1.75A 1210

Part	Approval Agency	Voltage - Max [Max]	Time to Trip	Package / Case	Mounting Type	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Post Trip (R1) (Max) [Max]	Thickness (Max)	Thickness (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Type	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max]	Resistance - Post Trip (R1) (Max)	Current - Hold (Ih) (Max)
Bourns Inc. MF-USML175-2	cURus TUV	6 V	2.5 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	0.04 Ohms	0.6 mm	0.024 in	6 mOhms	3.5 A	Polymeric	1.75 A
Bourns Inc. MF-USML230-2	cURus TUV	6 V	3.5 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	24 mOhms	0.6 mm	0.024 in	4.5 mOhms	4.6 A	Polymeric	2.3 A

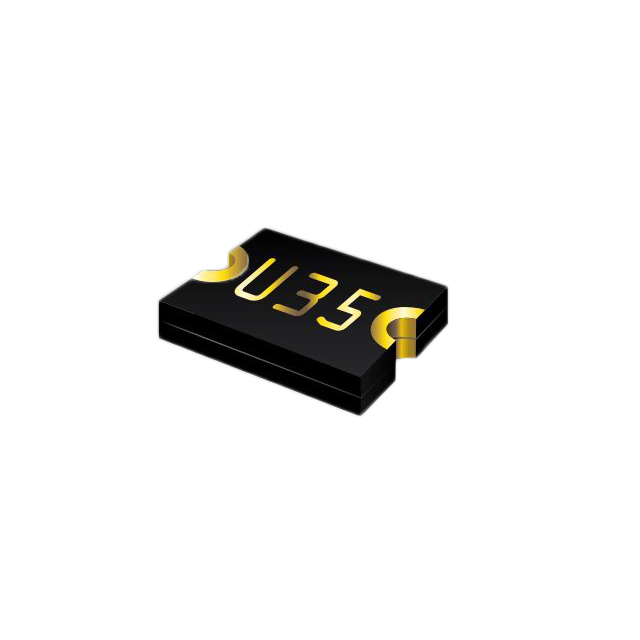

Bourns Inc. MF-USML175/12-2	cUL cURus TUV	12 V	800 ms	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.101 in	85 °C	-40 C	50 mOhms	0.8 mm	0.031 "	6 mOhms	3.5 A	Polymeric	1.75 A
Bourns Inc. MF-USML550/12-2	cUL cURus TUV	12 V	2 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.101 in	85 °C	-40 C	10 mOhms		0.047 in	1 mOhms	11 A	Polymeric	5.5 A	1.2 mm
Bourns Inc. MF-USML400/12-2	cUL cURus TUV	12 V	5 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.101 in	85 °C	-40 C	18 mOhms		0.047 in	2 mOhms	8 A	Polymeric	4 A	1.2 mm
Bourns Inc. MF-USML700-2	cURus TUV	6 V	2 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	13.5 mOhms		0.047 in	1 mOhms	14 A	Polymeric	7 A	1.2 mm
Bourns Inc. MF-USML380/12-2	cUL cURus TUV	12 V	5 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.101 in	85 °C	-40 C	20 mOhms		0.047 in	2 mOhms	7.6 A	Polymeric	3.8 A	1.2 mm
Bourns Inc. MF-USML380-2	cURus TUV	6 V	2 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C		0.6 mm	0.024 in	2 mOhms	8 A	Polymeric	3.8 A		16 mOhms
Bourns Inc. MF-USML450-2	cURus TUV	6 V	2 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	15 mOhms		0.047 in	1 mOhms	9 A	Polymeric		1.2 mm		4.5 A
Bourns Inc. MF-USML400-2	cURus TUV	6 V	2 s	1210 (3225 Metric) Concave	Surface Mount	50 A	0.127 in	2.58 mm	3.22 mm	0.102 in	85 °C	-40 C	15.5 mOhms	0.6 mm	0.024 in	1.5 mOhms	8 A	Polymeric	4 A
