333-068 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Contact Finish	Flange Feature	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Color	Gender	Pitch	Pitch	Termination	Number of Rows [custom]	Read Out	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 333-068-524-808	Polyester Thermoplastic	2	34	Gold	4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Solder	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin
EDAC Inc. 333-068-521-204	Polyester Thermoplastic	2	34	Gold	Flush Mount Top Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Solder	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.156 "	3.96 mm

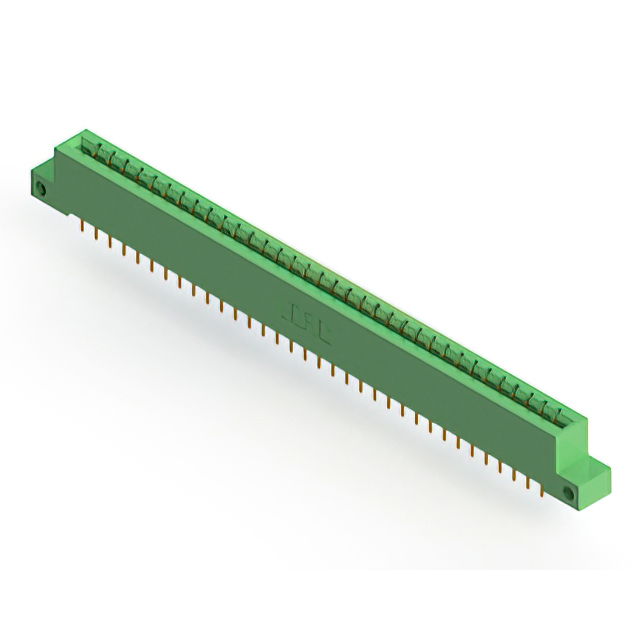

EDAC Inc. 333-068-521-212	Polyester Thermoplastic	2	34	Gold	Flush Mount Side Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Solder	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.128 "	3.25 mm
EDAC Inc. 333-068-541-803	Polyester Thermoplastic	2	34	Gold	Floating Bobbin Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Wire Wrap	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.116 "	2.95 mm

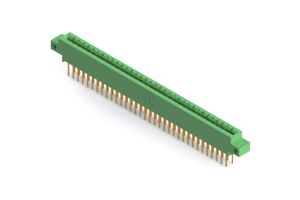

EDAC Inc. 333-068-541-812	Polyester Thermoplastic	2	34	Gold	Side Mount Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Wire Wrap	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.128 "	3.25 mm

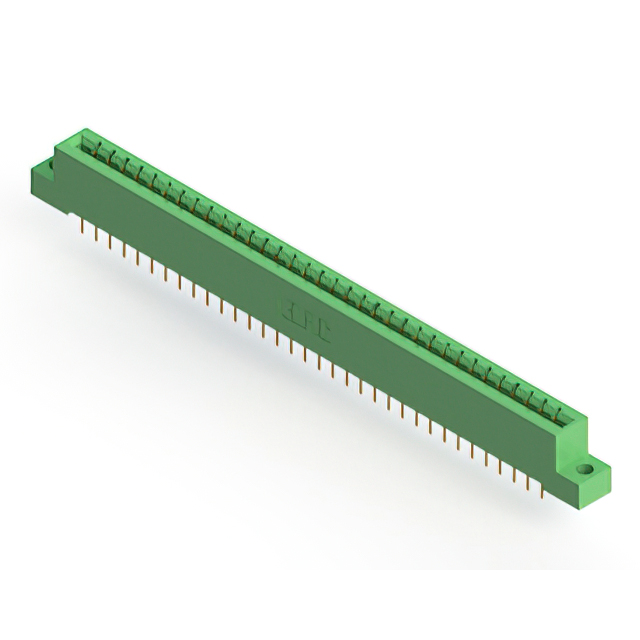

EDAC Inc. 333-068-524-204	Polyester Thermoplastic	2	34	Gold	Flush Mount Top Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Solder	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.156 "	3.96 mm

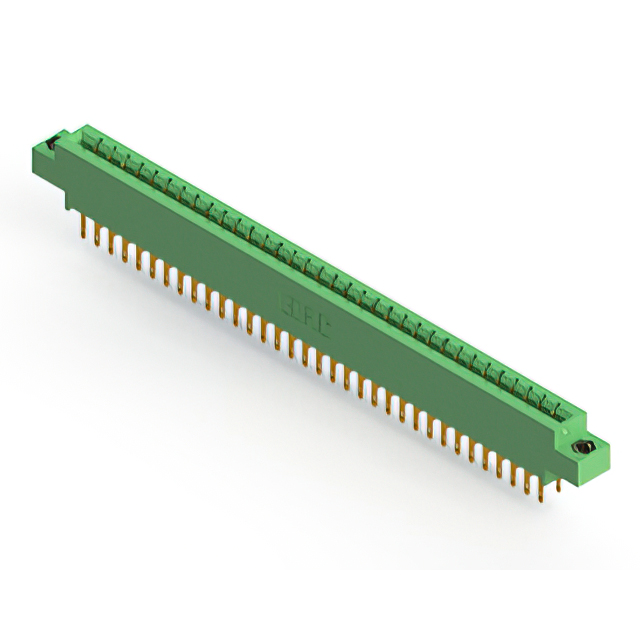

EDAC Inc. 333-068-500-807	Diallyl Phthalate (DAP)	2	34	Gold	M3 Threaded Insert Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Solder Eyelet(s)	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin
EDAC Inc. 333-068-540-808	Polyester Thermoplastic	2	34	Gold	4-40 Threaded Insert Top Mount Opening	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Wire Wrap	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin

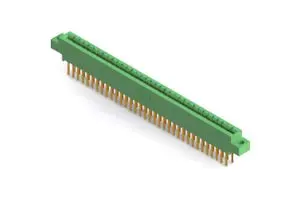

EDAC Inc. 333-068-544-804	Polyester Thermoplastic	2	34	Gold		Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Wire Wrap	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.156 "	3.96 mm

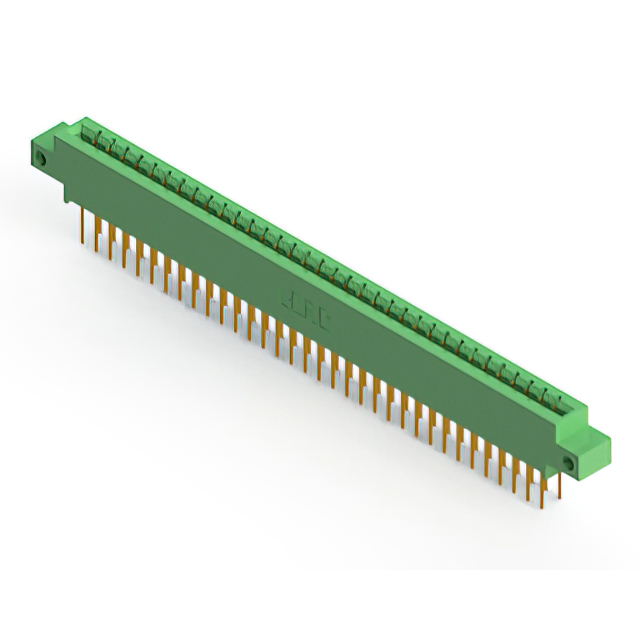

EDAC Inc. 333-068-523-812	Polyester Thermoplastic	2	34	Gold	Side Mount Opening Unthreaded	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Green	Female	3.96 mm	0.156 in	Solder	2	Dual	Non Specified - Dual Edge	-40 C	105 ░C	Cantilever	68 positions	0.25 Ám	10 Áin	0.128 "	3.25 mm
