5120FN Series
Manufacturer: Belden Inc.
Beta
⌘K

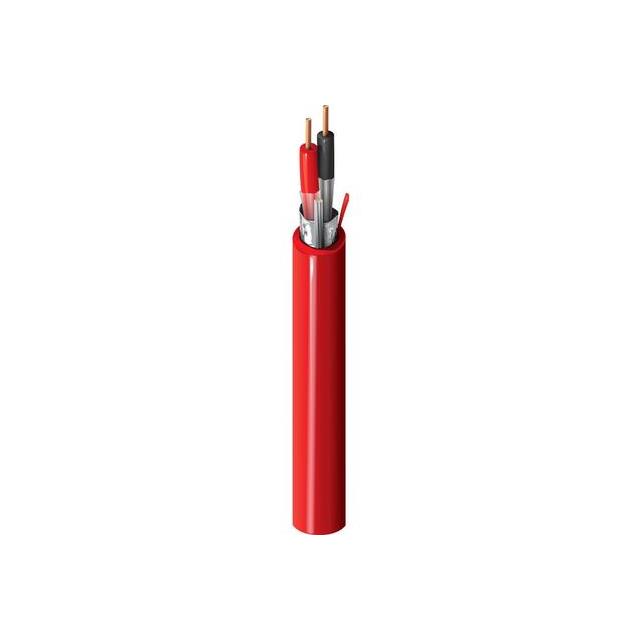

CABLE 2COND 14AWG RED SHLD
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Features | Conductor Insulation | Conductor Insulation | Conductor Insulation | Ratings | Jacket (Insulation) Material | Number of Conductors | Shield Type | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Cable Type | Jacket Color | Wire Gauge | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Copper Bare | 0.042 in | 1.067 mm | 304.8 m | 1000 ft | Drain Wire Rip Cord | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | UL Style NPLF | Poly-Vinyl Chloride (PVC) | 2 | Foil | Solid | 7.7 mm | 0.303 in | 150 V | Multi-Conductor | Red | 14.5 AWG | Alarm Safety |
Belden Inc. | Aluminum | 100 % | Copper Bare | 0.042 in | 1.067 mm | 152.4 m | 500 ft | Drain Wire Rip Cord | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | UL Style NPLF | Poly-Vinyl Chloride (PVC) | 2 | Foil | Solid | 7.7 mm | 0.303 in | 150 V | Multi-Conductor | Red | 14.5 AWG | Alarm Safety |
