A7FXB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CABLE D-SUB - AFP37B/AE37M/X

Part	1st Connector	Type	Number of Positions	Contact Finish	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Color	2nd Connector	Shielding
TE Connectivity AMP Connectors A7FXB-3710M	Receptacle Female Sockets	DB37	37	Gold	3.05 m	10 ft	30 Áin	0.76 Ám	Multiple Ribbon	Individual Wire Leads	Unshielded

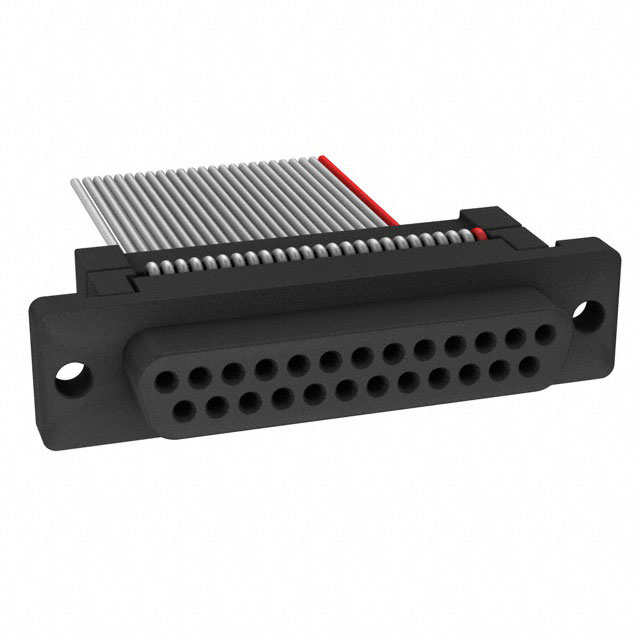

TE Connectivity AMP Connectors A7FXB-2510G	Receptacle Female Sockets	DB25	25	Gold	3.05 m	10 ft	30 Áin	0.76 Ám		Individual Wire Leads	Unshielded

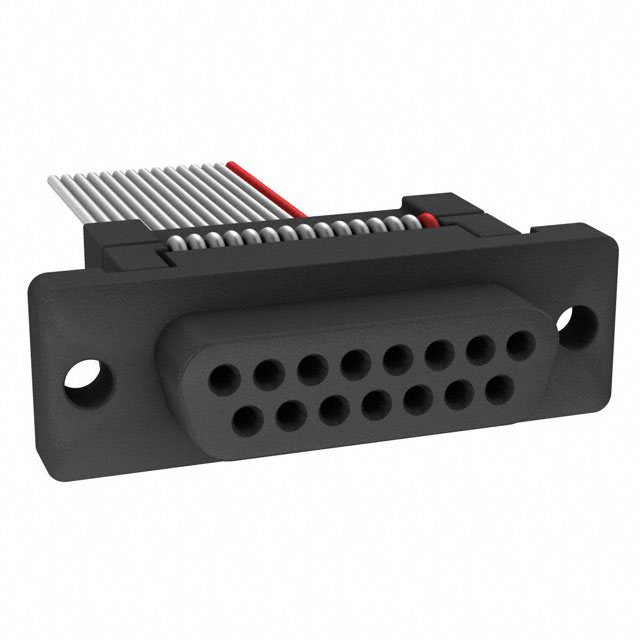

TE Connectivity AMP Connectors A7FXB-1506G	Receptacle Female Sockets	DB15	15	Gold	1.83 m	6 ft	30 Áin	0.76 Ám		Individual Wire Leads	Unshielded
TE Connectivity AMP Connectors A7FXB-3706M	Receptacle Female Sockets	DB37	37	Gold	1.83 m	6 ft	30 Áin	0.76 Ám	Multiple Ribbon	Individual Wire Leads	Unshielded
TE Connectivity AMP Connectors A7FXB-1510M	Receptacle Female Sockets	DB15	15	Gold	3.05 m	10 ft	30 Áin	0.76 Ám	Multiple Ribbon	Individual Wire Leads	Unshielded

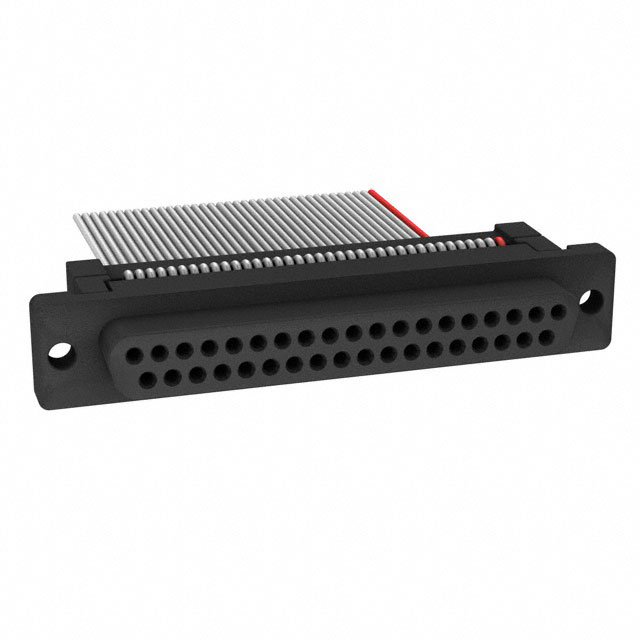

TE Connectivity AMP Connectors A7FXB-3706G	Receptacle Female Sockets	DB37	37	Gold	1.83 m	6 ft	30 Áin	0.76 Ám		Individual Wire Leads	Unshielded
TE Connectivity AMP Connectors A7FXB-0906M	Receptacle Female Sockets	DB9	9	Gold	1.83 m	6 ft	30 Áin	0.76 Ám	Multiple Ribbon	Individual Wire Leads	Unshielded

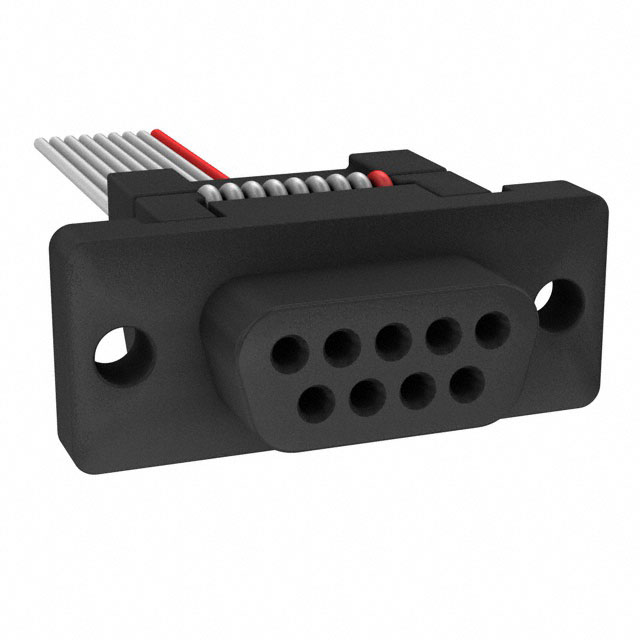

TE Connectivity AMP Connectors A7FXB-0906G	Receptacle Female Sockets	DB9	9	Gold	1.83 m	6 ft	30 Áin	0.76 Ám		Individual Wire Leads	Unshielded

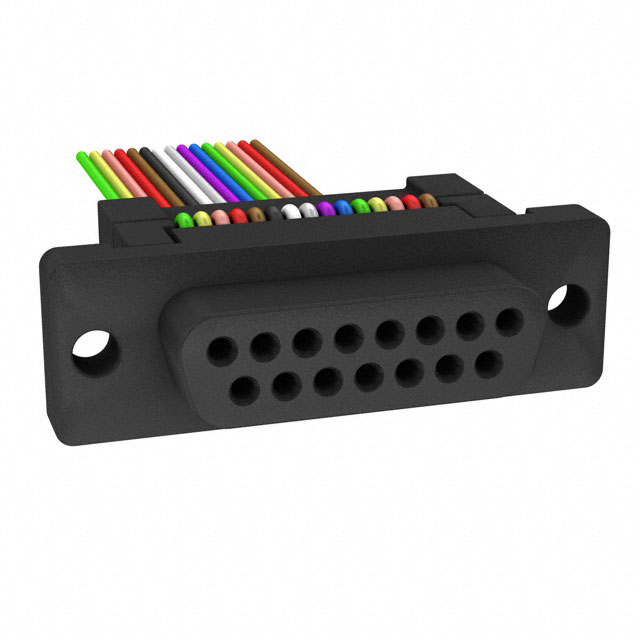

TE Connectivity AMP Connectors A7FXB-1506M	Receptacle Female Sockets	DB15	15	Gold	1.83 m	6 ft	30 Áin	0.76 Ám	Multiple Ribbon	Individual Wire Leads	Unshielded
TE Connectivity AMP Connectors A7FXB-3710G	Receptacle Female Sockets	DB37	37	Gold	3.05 m	10 ft	30 Áin	0.76 Ám		Individual Wire Leads	Unshielded
