CHM-9-65 Series

Catalog

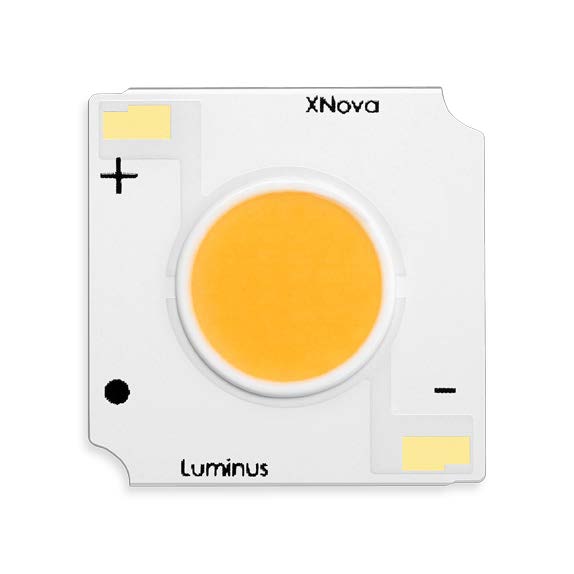

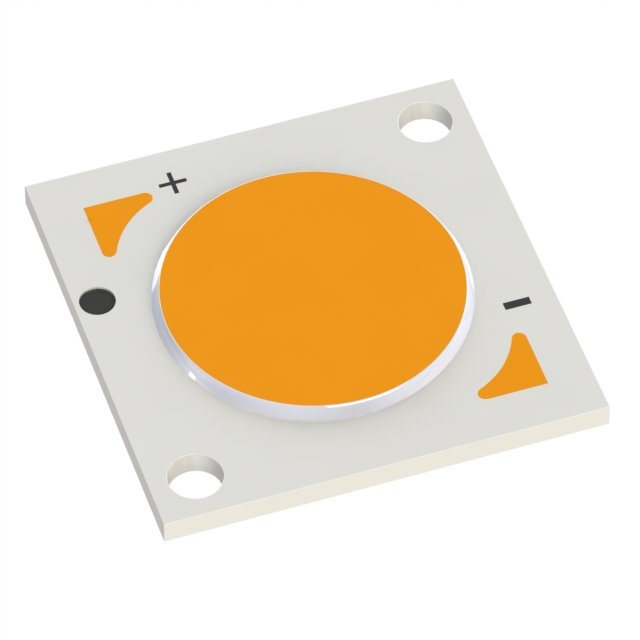

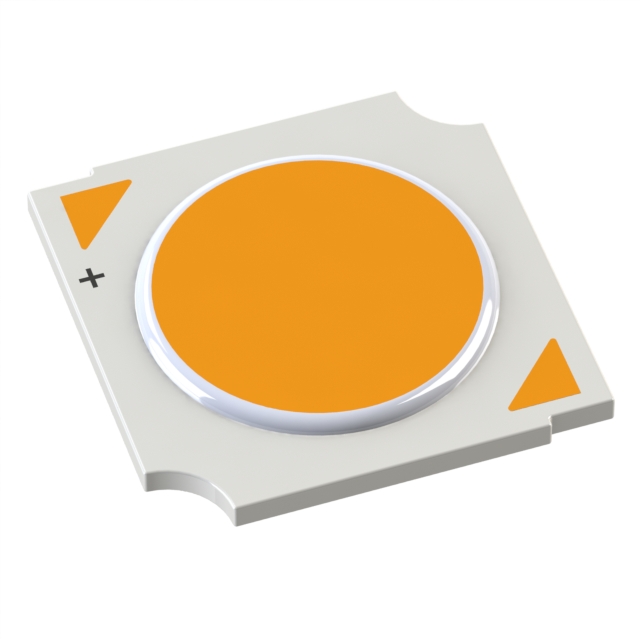

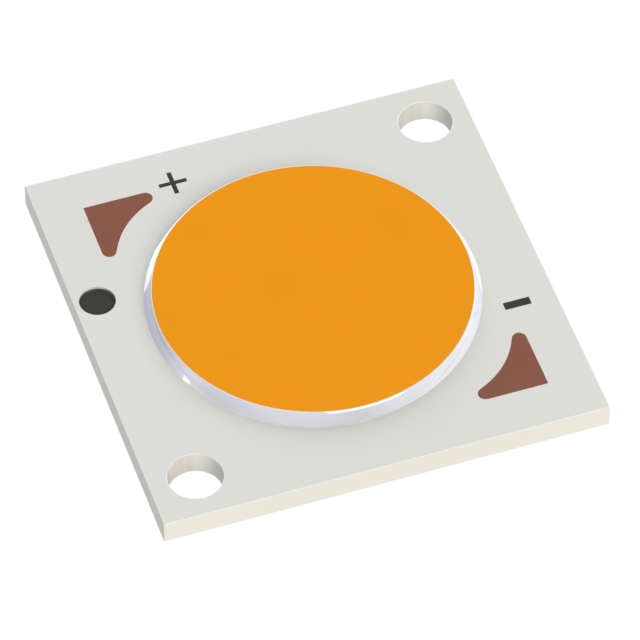

LED COB CHM9 CL WH SQUARE 6500K

Part	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	Light Emitting Surface (LES) [diameter]	Current - Test	Lens Type	Viewing Angle	Type	Height [z]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	CCT (K)	Current - Max [Max]	Configuration	Color
Luminus Devices Inc. CHM-9-65-80-36-XH00-F2-5	19 mm	19 mm	85 °C	9 mm	720 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80	2685 lm	104 lm/W	36 V	6500 K	1.05 A	Square	Cool White
Luminus Devices Inc. CHM-9-65-80-36-AA00-F2-3	15 mm	15 mm	85 °C	9 mm	360 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80	1500 lm	119 lm/W	35 V	6500 K	545 mA	Square	Cool White
Luminus Devices Inc. CHM-9-65-80-36-AA10-F3-3	15 mm	15 mm	85 °C	9 mm	360 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80	1659 lm	130 lm/W	35.5 V	6500 K	720 mA	Square	Cool White
Luminus Devices Inc. CHM-9-65-80-18-AC10-F3-5	13.5 mm	13.5 mm	85 °C	9 mm	360 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80			18 V	6500 K	545 mA	Square	Cool White
Luminus Devices Inc. CHM-9-65-80-36-XD20-F4-5	15 mm	15 mm	85 °C	9.6 mm	360 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80	1765 lm	145 lm/W	34 V	6500 K	990 mA	Square	Cool White
Luminus Devices Inc. CHM-9-65-80-36-AC00-F2-3	13.5 mm	13.5 mm	85 °C	9 mm	360 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80	1500 lm	119 lm/W	35 V	6500 K	720 mA	Square	Cool White
Luminus Devices Inc. CHM-9-65-80-36-XD20-F4-3	15 mm	15 mm	85 °C	9.6 mm	360 mA	Flat	120 °	Chip On Board (COB)	1.37 mm	80	1765 lm	145 lm/W	34 V	6500 K	990 mA	Square	Cool White
