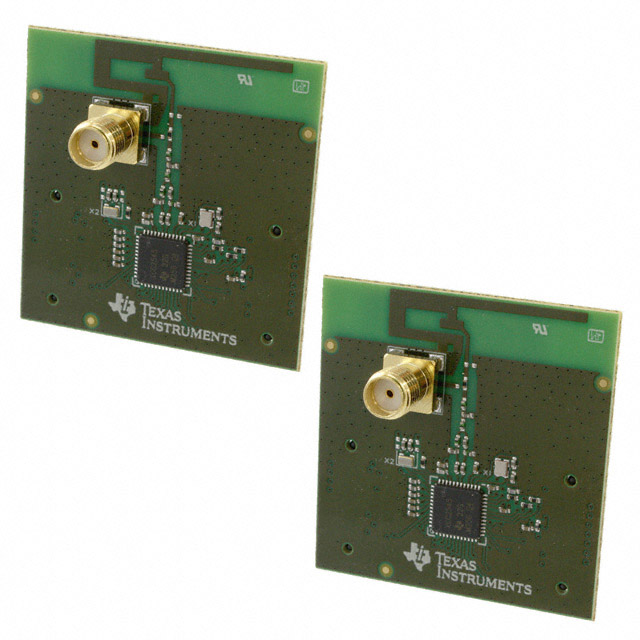

CC2545 Series
2.4 GHz RF Value Line SoC with 32kB flash, 31 GPIO, I2C, SPI and UART
Manufacturer: Texas Instruments
Catalog
2.4 GHz RF Value Line SoC with 32kB flash, 31 GPIO, I2C, SPI and UART
Key Features
• RF sectionSingle-Chip 2.4-GHz RF Transceiver and MCUSupports 250 kbps, 500 kbps, 1 Mbps and 2 Mbps data ratesExcellent Link Budget, Enabling Long Range Without External Front-EndsProgrammable Output Power up to 4 dBmExcellent Receiver Sensitivity (–90 dBm at 2 Mbps,–98 dBm at 250 kbps)Suitable for Systems Targeting Compliance With Worldwide RadioFrequency Regulations: ETSI EN 300 328 and EN 300 440 Category 2 (Europe),FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)Accurate RSSI FunctionLayoutFew External ComponentsPin Out Suitable for Single Layer PCB ApplicationsReference Designs Available48-pin 7-mm × 7-mm QFN (31 General I/O Pins) PackageLow PowerActive Mode RX Best Performance: 20.8 mAActive Mode TX (0 dBm): 26.3 mAPower Mode 1 (5 µs Wake-Up): 235 µAPower mode 2 (sleep timer on): 0.9 µAPower mode 3 (External interrupts): 0.4µAWide Supply Voltage Range (2V to 3.6V)Full RAM and Register Retention in All Power ModesMicrocontrollerHigh-Performance and Low-Power 8051Microcontroller Core With Code Prefetch32-KB Flash Program Memory1 KB SRAMHardware Debug SupportExtensive Baseband Automation, Including Auto-Acknowledgement andAddress DecodingPeripheralsTwo-Channel DMA with Access to all Memory Areas and PeripheralsGeneral-Purpose Timers (One 16-Bit, Two 8-Bit)Radio Timer, 40-BitIR Generation CircuitrySeveral Oscillators:32MHz XOSC16MHz RCOSC32kHz XOSC/li>32kHz RCOSC32-kHz Sleep Timer With CaptureAES Security CoprocessorUART/SPI/I2C Serial Interface31 General-Purpose I/O pins (3 × 20-mA Drive Strength, Remaining pinshave 4 mA Drive Strength)Watchdog TimerTrue Random-Number GeneratorADC and Analog ComparatorRF sectionSingle-Chip 2.4-GHz RF Transceiver and MCUSupports 250 kbps, 500 kbps, 1 Mbps and 2 Mbps data ratesExcellent Link Budget, Enabling Long Range Without External Front-EndsProgrammable Output Power up to 4 dBmExcellent Receiver Sensitivity (–90 dBm at 2 Mbps,–98 dBm at 250 kbps)Suitable for Systems Targeting Compliance With Worldwide RadioFrequency Regulations: ETSI EN 300 328 and EN 300 440 Category 2 (Europe),FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)Accurate RSSI FunctionLayoutFew External ComponentsPin Out Suitable for Single Layer PCB ApplicationsReference Designs Available48-pin 7-mm × 7-mm QFN (31 General I/O Pins) PackageLow PowerActive Mode RX Best Performance: 20.8 mAActive Mode TX (0 dBm): 26.3 mAPower Mode 1 (5 µs Wake-Up): 235 µAPower mode 2 (sleep timer on): 0.9 µAPower mode 3 (External interrupts): 0.4µAWide Supply Voltage Range (2V to 3.6V)Full RAM and Register Retention in All Power ModesMicrocontrollerHigh-Performance and Low-Power 8051Microcontroller Core With Code Prefetch32-KB Flash Program Memory1 KB SRAMHardware Debug SupportExtensive Baseband Automation, Including Auto-Acknowledgement andAddress DecodingPeripheralsTwo-Channel DMA with Access to all Memory Areas and PeripheralsGeneral-Purpose Timers (One 16-Bit, Two 8-Bit)Radio Timer, 40-BitIR Generation CircuitrySeveral Oscillators:32MHz XOSC16MHz RCOSC32kHz XOSC/li>32kHz RCOSC32-kHz Sleep Timer With CaptureAES Security CoprocessorUART/SPI/I2C Serial Interface31 General-Purpose I/O pins (3 × 20-mA Drive Strength, Remaining pinshave 4 mA Drive Strength)Watchdog TimerTrue Random-Number GeneratorADC and Analog Comparator
Description
AI
The CC2545 is an optimized system-on-chip (SoC) solution with data rates up to 2Mbps built with low bill-of-material cost. The CC2545 combines the excellent performance of a leading RF transceiver with a single-cycle 8051 compliant CPU, 32-KB in-system programmable flash memory, up to 1-KB RAM, 31 General-Purpose I/O pins and many other powerful features. The CC2545 has efficient power modes with RAM and register retention below 1 µA, making it highly suited for low-duty-cycle systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.
The CC2545 is compatible with the CC2541/CC2543/CC2544. It comes in a 7-mm × 7-mm QFN48 package, with SPI/UART/I2C interface. The CC2545 comes complete with reference designs from Texas Instruments.
The device targets wireless consumer and HID applications. The CC2545 is tailored for peripheral devices such as wireless keyboards.
The CC2545 is an optimized system-on-chip (SoC) solution with data rates up to 2Mbps built with low bill-of-material cost. The CC2545 combines the excellent performance of a leading RF transceiver with a single-cycle 8051 compliant CPU, 32-KB in-system programmable flash memory, up to 1-KB RAM, 31 General-Purpose I/O pins and many other powerful features. The CC2545 has efficient power modes with RAM and register retention below 1 µA, making it highly suited for low-duty-cycle systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.
The CC2545 is compatible with the CC2541/CC2543/CC2544. It comes in a 7-mm × 7-mm QFN48 package, with SPI/UART/I2C interface. The CC2545 comes complete with reference designs from Texas Instruments.
The device targets wireless consumer and HID applications. The CC2545 is tailored for peripheral devices such as wireless keyboards.
