R19900 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
MOEB F STR PIN C100
| Part | Center Contact Plating | Voltage Rating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Housing Color | Center Contact Material | Frequency - Max [Max] | Number of Ports | Cable Group | Connector Type | Shield Termination | Mounting Type | Fastening Type | Impedance | Contact Termination | Mating Cycles | Cable Group | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | |||||||||||||||||||||

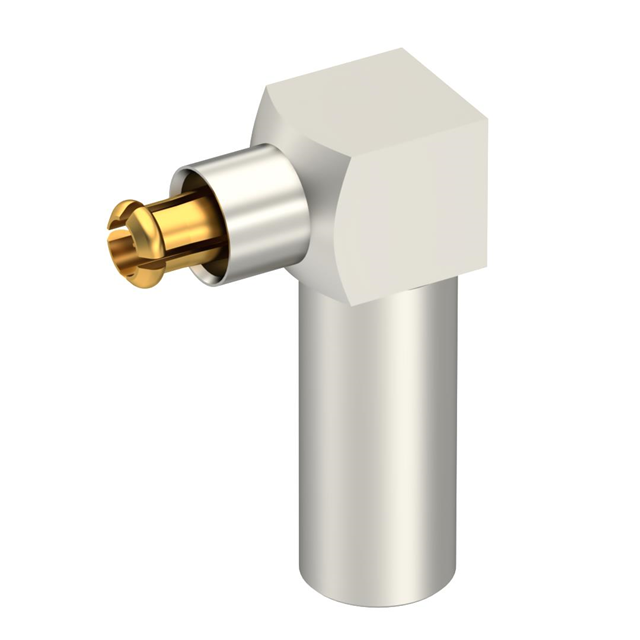

 Radiall USA, Inc. | Gold | 170 V | Brass | -65 ░C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | Silver | Brass | 8 GHz | 1 | 316 RG-188 | Plug Male Pin | Crimp | Free Hanging (In-Line) Right Angle | Snap-On | 50 Ohms | Crimp | |||
Radiall USA, Inc. | Gold | 500 V | Bronze | -25 °C | 125 °C | Gold | Polytetrafluoroethylene (PTFE) | Gold | Brass | 6000 MHz | 1 | RG-178 | Plug Male Pin | Crimp | Free Hanging (In-Line) | Snap-On | 50 Ohms | Crimp | 500 | 196 | MCC2 |

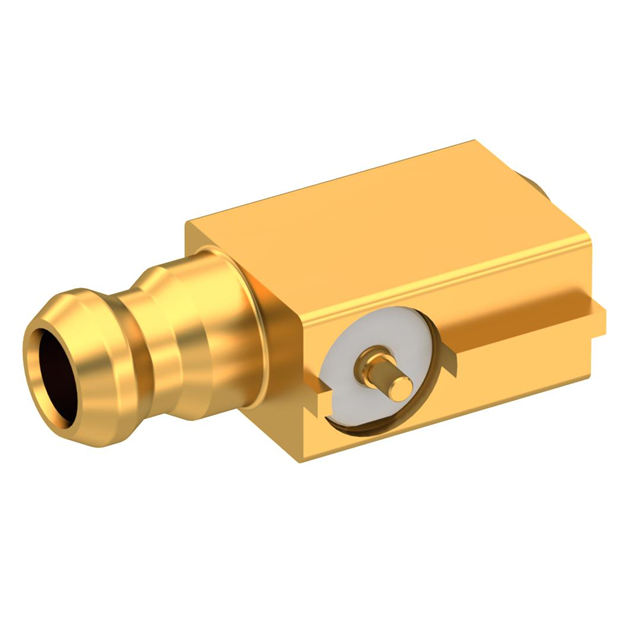

 Radiall USA, Inc. | Gold | 100 V | Brass | -40 C | 110 °C | Gold | Polyetheretherketone (PEEK) | Gold | Brass | 6000 MHz | 1 | Receptacle Female Socket | Solder | Board Edge Cutout Surface Mount | Snap-On | 50 Ohms | Solder | 25000 | MOEBIUS |
