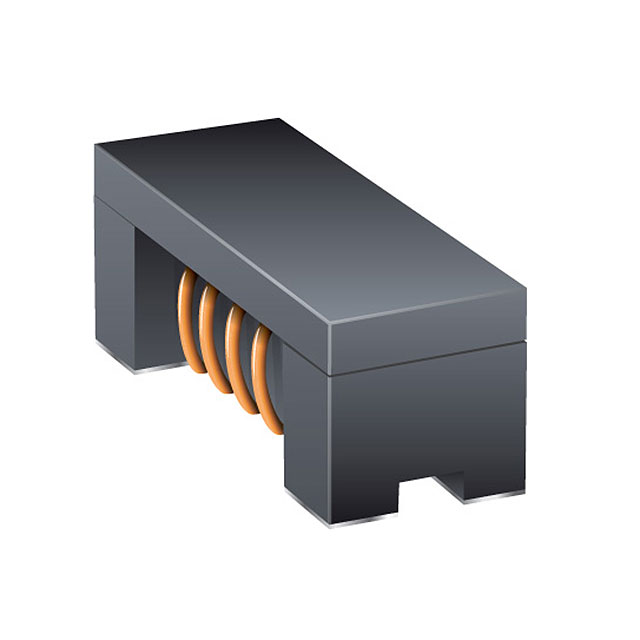

SRF3216A Series
Manufacturer: Bourns Inc.
Beta
⌘K
FILTER, COMMON MODE CHOKE, 600 OHM, 0.3 A, SRF3216A SERIES, 3.2MM X 1.6MM X 2MM, AEC-Q200
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Filter Type | Mounting Type | Voltage Rating - DC | DC Resistance (DCR) (Max) [Max] | Impedance @ Frequency | Package / Case | Number of Lines | Current Rating (Max) [Max] | Height (Max) [z] | Height (Max) [z] | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 125 °C | -40 C | Signal Line | Surface Mount | 50 VDC | 800 mOhm | 600 Ohms | Horizontal 4 PC Pad | 2 | 300 mA | 0.087 in | 2.2 mm | AEC-Q200 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | |
 Bourns Inc. | 125 °C | -40 C | Signal Line | Surface Mount | 50 VDC | 300 mOhm | 90 Ohms | Horizontal 4 PC Pad | 2 | 400 mA | 0.087 in | 2.2 mm | AEC-Q200 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | |
 Bourns Inc. | 125 °C | -40 C | Signal Line | Surface Mount | 50 VDC | 500 mOhm | 260 Ohms | Horizontal 4 PC Pad | 2 | 300 mA | 0.087 in | 2.2 mm | AEC-Q200 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | |
Bourns Inc. | 125 °C | -40 C | Signal Line | Surface Mount | 50 VDC | 1.2 Ohm | 2200 Ohms | Horizontal 4 PC Pad | 2 | 200 mA | 0.087 in | 2.2 mm | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
Bourns Inc. | 125 °C | -40 C | Signal Line | Surface Mount | 50 VDC | 360 Ohms | Horizontal 4 PC Pad | 2 | 300 mA | 0.087 in | 2.2 mm | AEC-Q200 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 600 mOhm | |
Bourns Inc. | 125 °C | -40 C | Signal Line | Surface Mount | 50 VDC | 400 mOhm | 160 Ohms | Horizontal 4 PC Pad | 2 | 350 mA | 0.087 in | 2.2 mm | AEC-Q200 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
