HLMP-4000 Series

Catalog

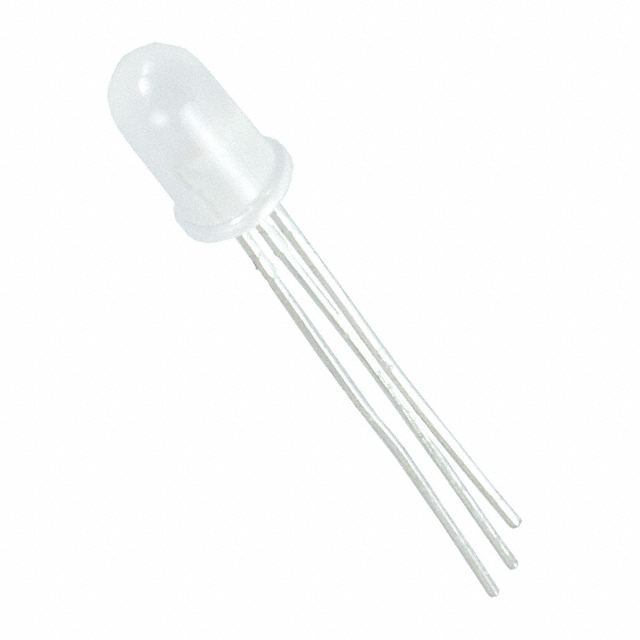

LED GRN/RED DIFFUSED T-1 3/4 T/H

Part	Lens Transparency	Package / Case	Lens Color	Configuration	Supplier Device Package	Mounting Type	Wavelength - Dominant	Color	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test [custom]	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max] [z]	Lens Style	Voltage - Forward (Vf) (Typ)	Viewing Angle
Broadcom Limited HLMP-4000	Diffused	Radial - 3 Leads	White	Common Cathode	T-1 3/4	Through Hole	570 nm 626 nm	Green Red	568 nm	635 nm	10 mA	10 mA	T-1 3/4	5 mm	4.2 mcd	2.1 mcd	9.19 mm	Round with Domed Top	1.9 V 2.2 V	65 °
Broadcom Limited HLMP-4000#002	Diffused	Radial - 3 Leads	White	Common Cathode	T-1 3/4	Through Hole	570 nm 626 nm	Green Red	568 nm	635 nm	10 mA	10 mA	T-1 3/4	5 mm	4.2 mcd	2.1 mcd	9.19 mm	Round with Domed Top	1.9 V 2.2 V	65 °
