HS2C9F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

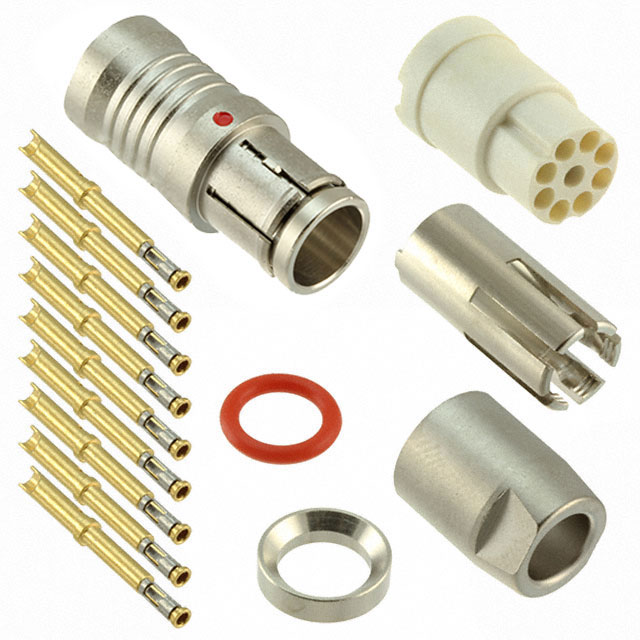

CONN PLUG FMALE 9POS GOLD CRIMP
| Part | Contact Finish - Mating | Color | Connector Type | Primary Material | Termination | Ingress Protection | Shell Finish | Fastening Type | Applications | Voltage Rating | Contact Material | Orientation | Number of Positions | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insert Material | Material Flammability Rating | Shielding | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Gold | Silver | Female Sockets Plug | Metal | Crimp Solder Cup | IP66 IP67 IP68 | Electroless Nickel | Push-Pull | Agriculture Audio General Medical Testing Equipment & Measurement | 30 VAC | Copper Alloy | Keyed | 9 | 5.49 mm | 4.57 mm | 0.18 in | 0.216 in | 135 °C | -40 °C | Free Hanging (In-Line) | Liquid Crystal Polymer (LCP) | UL94 HF-1 | Shielded | Copper Alloy |
