ANT6230 Series
Manufacturer: Pulse Electronics
Beta
⌘K

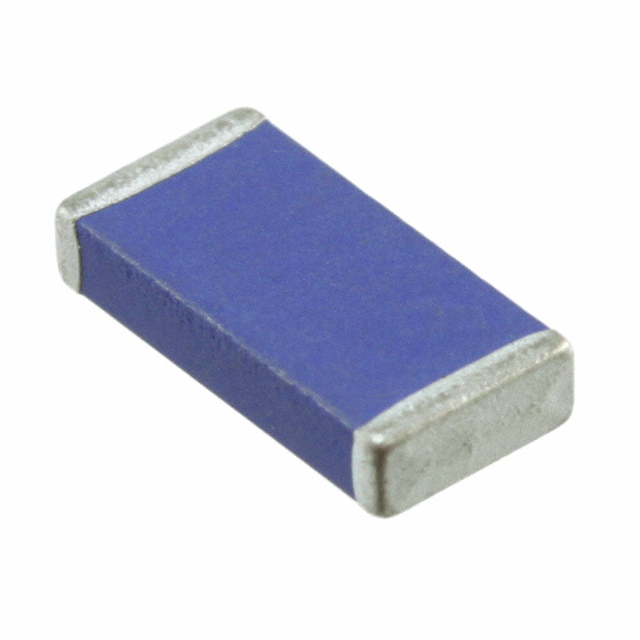

RF ANT 1.575GHZ CHIP SOLDER SMD
| Part | Termination | Height (Max) [z] | Power - Max [Max] | Number of Bands | Frequency (Center/Band) | Return Loss | Applications | Antenna Type | Mounting Type | RF Family/Standard | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Gain | Frequency Range [Min] | Frequency Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Solder | 0.049 in 1.25 mm | 1 W | 1 | 1.575 GHz | -10 dB | GPS | Chip | Surface Mount | Navigation | 2 GHz | 1 GHz | UHF | 2.52 dBi | 1.548 GHz | 1.602 GHz |
