123-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K
SMP3 SMT END LAUNCH MALE, FULL D
| Part | Mating Cycles | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature (Min) | Operating Temperature (Max) | Body Material | Dielectric Material | Connector Style | Contact Termination | Fastening Type | Connector Type | Frequency - Max | Mounting Type | Shield Termination | Impedance | Center Contact Material | Number of Ports | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

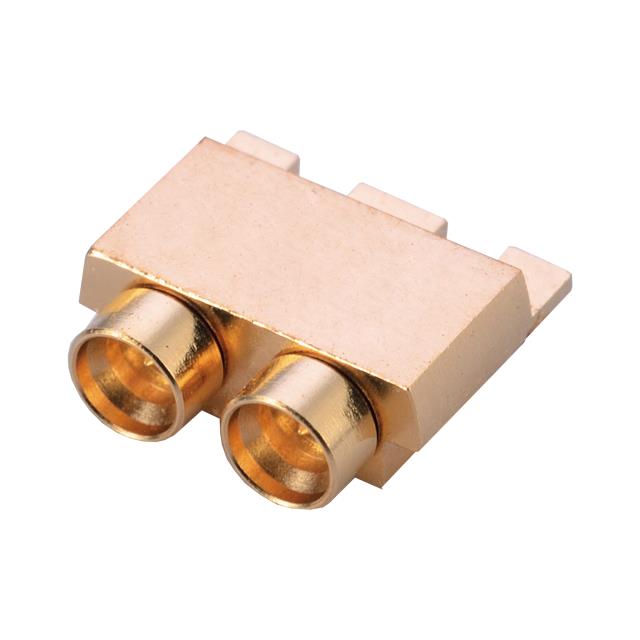

 Cinch Connectivity Solutions Johnson | 100 cycles | 250 V | Gold | Gold | -65 °C | 165 °C | Stainless Steel | Polytetrafluoroethylene (PTFE) | SMP3 | Solder | Snap-On | Male Pin Plug | 67 GHz | Board Edge End Launch | Solder | 50 Ohm | Beryllium Copper | 2 | Gold |
 Cinch Connectivity Solutions Johnson | 100 cycles | 250 V | Gold | Gold | -65 °C | 165 °C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | SMP3 | Solder | Snap-On | Male Pin Plug | 50 GHz | Surface Mount | Solder | 50 Ohm | Beryllium Copper | 1 | Gold |
 Cinch Connectivity Solutions Johnson | 100 cycles | 250 V | Gold | Gold | -65 °C | 165 °C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | SMP3 | Solder | Snap-On | Male Pin Plug | 50 GHz | Board Edge Cutout Surface Mount | Solder | 50 Ohm | Beryllium Copper | 1 | Gold |
