342A124 Series

Catalog

HEATSHRNK BOOT BRKOUT 45DEG SZ24

Part	Color	Shell Size - Insert	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Total Length Recovered [x]	Total Length Recovered [x]	Small Recovered Length	Small Recovered Length [x]	Large Recovered Length	Large Recovered Length	Material	Type	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine 342A124-3/42-0	Black	24	6.1 mm	0.24 "	1.06 in	26.92 mm	3.539 in	89.89 mm	42.7 mm	1.681 in	1.661 in	42.19 mm	Polyolefin (PO) Semi-Rigid	Boot Transition - Side Breakout 45°	0.52 in	13.21 mm	0.488 in	12.4 mm
TE Connectivity Aerospace, Defense and Marine 342A124-4-0	Black	24	6.1 mm	0.24 "	1.06 in	26.92 mm	3.539 in	89.89 mm	42.7 mm	1.681 in	1.661 in	42.19 mm	Polyolefin (PO) Flexible	Boot Transition - Side Breakout 45°	0.52 in	13.21 mm	0.488 in	12.4 mm

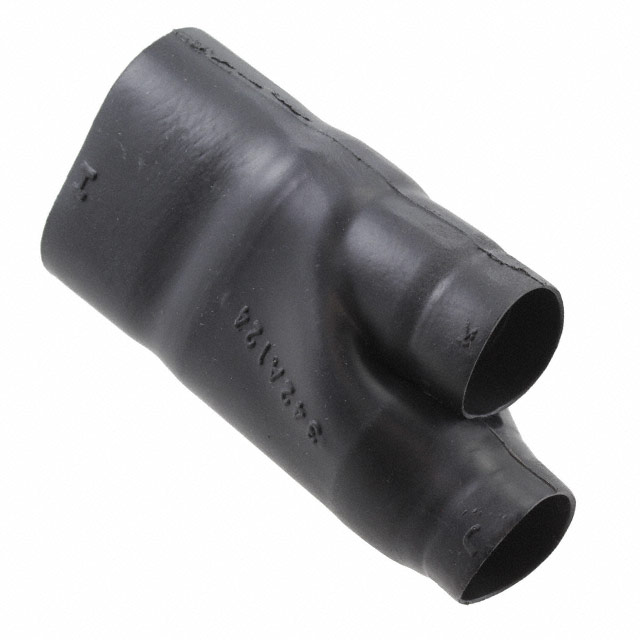

TE Connectivity Aerospace, Defense and Marine 342A124-25-0	Black	24	6.1 mm	0.24 "	1.06 in	26.92 mm	3.539 in	89.89 mm	42.7 mm	1.681 in	1.661 in	42.19 mm	Elastomer Semi-Rigid	Boot Transition - Side Breakout 45°	0.52 in	13.21 mm	0.488 in	12.4 mm
