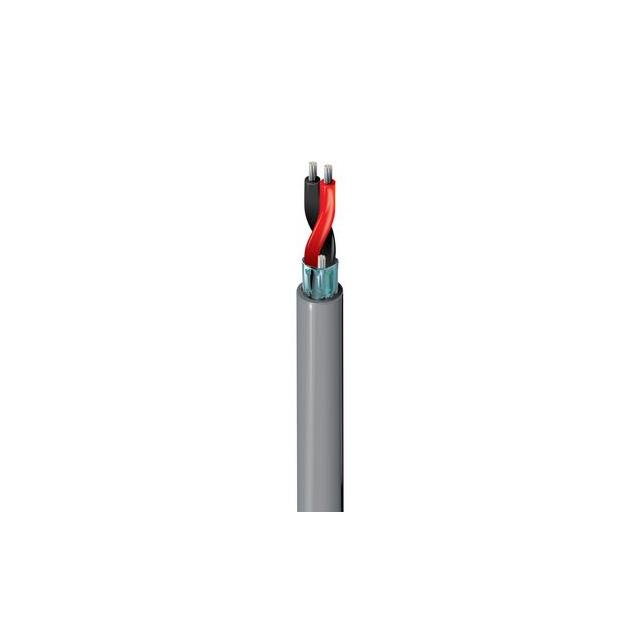

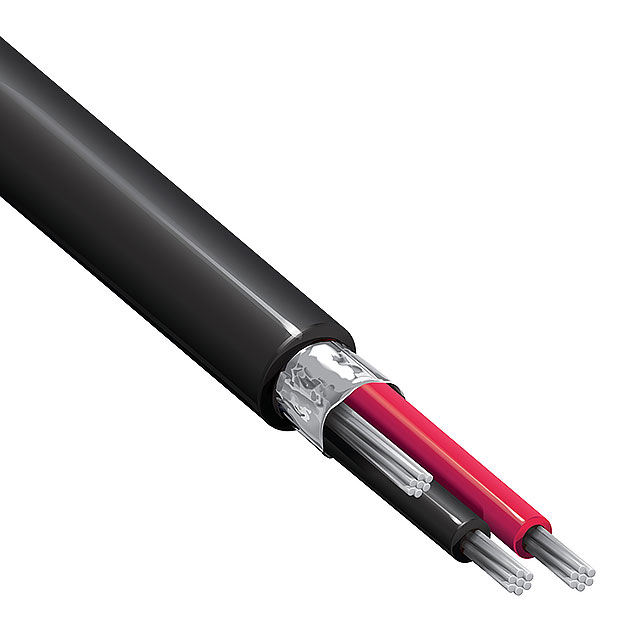

9451 Series
Manufacturer: Belden Inc.
Beta
⌘K
2 #22 PP FS PVC FR
| Part | Shield Coverage | Shield Material | Number of Conductors | Length | Length | Ratings | Cable Type | Voltage | Features | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Material | Shield Type | Conductor Insulation | Jacket Color | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 2 | 152.4 m | 500 ft | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Gray | 22 AWG |
Belden Inc. | 100 % | Aluminum Polyester | 2 | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Red | 22 AWG | ||
Belden Inc. | 100 % | Aluminum Polyester | 2 | 304.8 m | 1000 ft | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Orange | 22 AWG |
Belden Inc. | 100 % | Aluminum Polyester | 2 | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Green | 22 AWG | ||
Belden Inc. | 100 % | Aluminum Polyester | 2 | 304.8 m | 1000 ft | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Gray | 22 AWG |
Belden Inc. | 100 % | Aluminum Polyester | 2 | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Gray | 22 AWG | ||
Belden Inc. | 100 % | Aluminum Polyester | 2 | 304.8 m | 1000 ft | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Black | 22 AWG |
 Belden Inc. | 100 % | Aluminum Polyester | 2 | 304.8 m | 1000 ft | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Black | 22 AWG |
 Belden Inc. | 100 % | Aluminum | 2 | 304.8 m | 1000 ft | UL Style CMR | Multi-Conductor | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) | Foil | Polypropylene (PP) | Blue | 22 AWG | |||
Belden Inc. | 100 % | Aluminum Polyester | 2 | 304.8 m | 1000 ft | UL Style CMR | Multi-Conductor | 300 VDC | Drain Wire | Audio | 30 AWG | 7 | 0.135 in | 3.43 mm | 0.02 " | 0.508 mm | Copper Tinned | Poly-Vinyl Chloride (PVC) Riser | Foil | Polypropylene (PP) | Brown | 22 AWG |
