Schaffner FN3258 Series

Power Line Filters 3-PHASE 75A FILTER ULTRA-COMPACT

Manufacturer: TE Connectivity AMP Connectors

Catalog

Power Line Filters 3-PHASE 75A FILTER ULTRA-COMPACT

Catalog

Power Line Filters 3-PHASE 75A FILTER ULTRA-COMPACT

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Filter Type	Voltage - Rated AC (Phase to Phase)	Applications	Current	Configuration	Frequency - Operating	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)

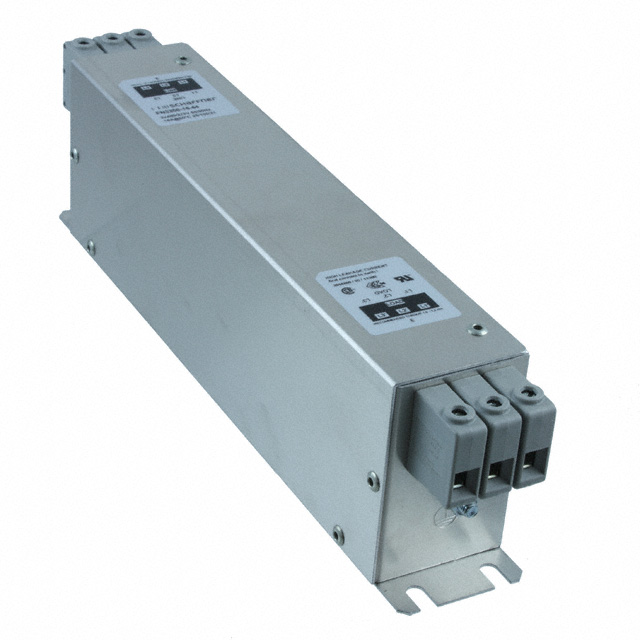

TE Connectivity AMP Connectors FN3258-16-44	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	480 V	General Purpose	16 A	Single Stage	60 Hz	CSA ENEC UR

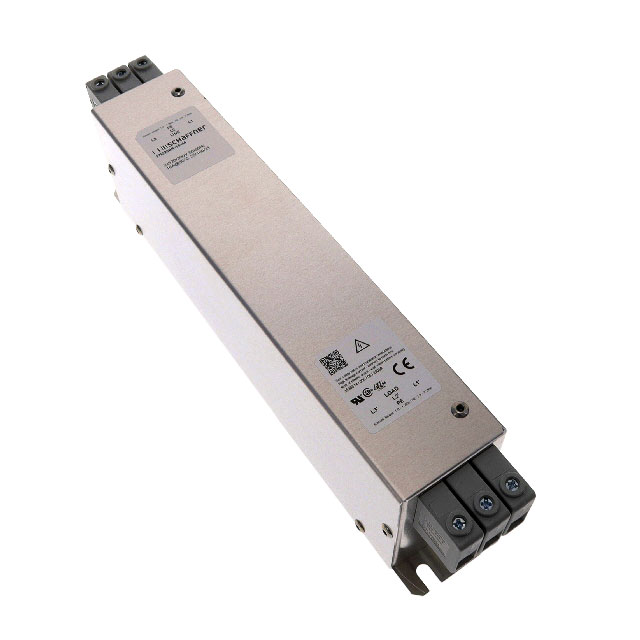

TE Connectivity AMP Connectors FN3258H-16-44	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	16 A	Single Stage	60 Hz	CSA ENEC UR	300 V
TE Connectivity AMP Connectors FN3258H-180-40	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	180 A	Single Stage	60 Hz	CSA ENEC UR	300 V

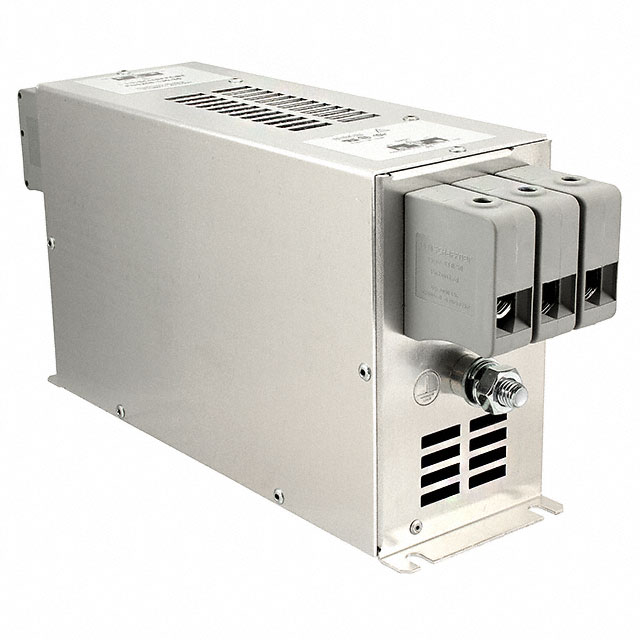

TE Connectivity AMP Connectors FN3258-130-35	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	480 V	General Purpose	130 A	Single Stage	60 Hz	CSA ENEC UR
TE Connectivity AMP Connectors FN3258H-30-33	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	30 A	Single Stage	60 Hz	CSA ENEC UR	300 V
TE Connectivity AMP Connectors FN3258H-100-35	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	100 A	Single Stage	60 Hz	CSA ENEC UR	300 V
TE Connectivity AMP Connectors FN3258H-75-34	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	75 A	Single Stage	60 Hz	CSA ENEC UR	300 V
TE Connectivity AMP Connectors FN3258H-75-34	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	75 A	Single Stage	60 Hz	CSA ENEC UR	300 V
TE Connectivity AMP Connectors FN3258H-42-33	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	520 V	General Purpose	42 A	Single Stage	60 Hz	CSA ENEC UR	300 V
TE Connectivity AMP Connectors FN3258-55-34	Chassis Mount	100 °C	-25 °C	Terminal Block	Three Phase (Delta)	480 V	General Purpose	55 A	Single Stage	60 Hz	CSA ENEC UR
