726-018 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 18POS 0.125

Part	Termination Rows	Material - Insulation	Number of Rows	Termination	Mounting Type	Card Type	Contact Material	Number of Positions/Bay/Row [custom]	Gender	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Pitch	Pitch	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]

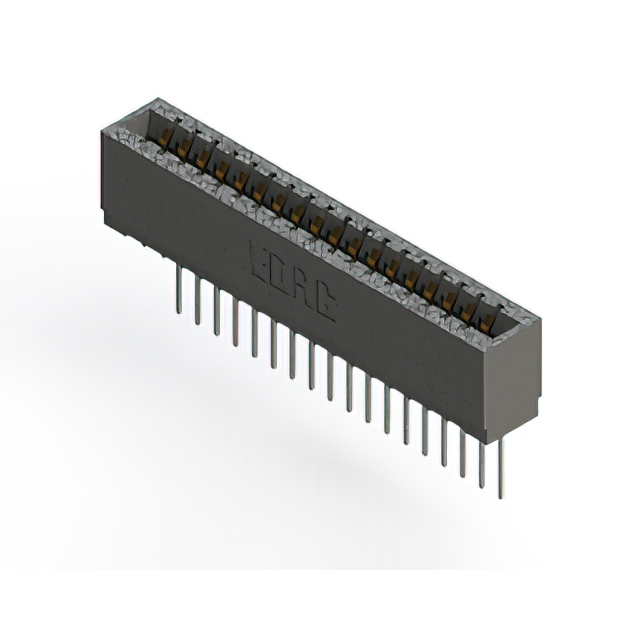

EDAC Inc. 726-018-545-101	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Copper Alloy	18	Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Single	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

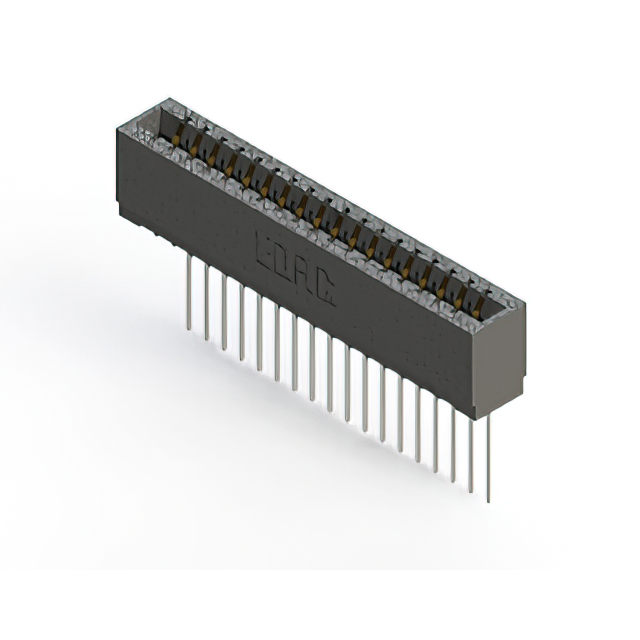

EDAC Inc. 726-018-541-101	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Copper Alloy	18	Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Single	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 726-018-540-101	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Copper Alloy	18	Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Single	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

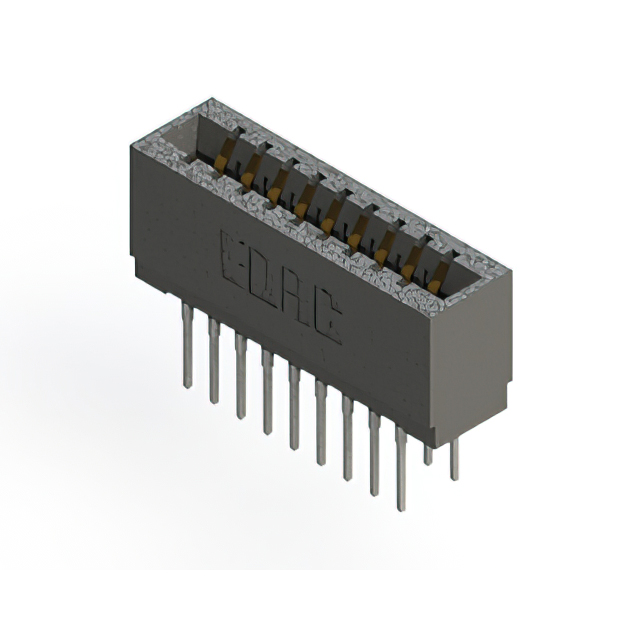

EDAC Inc. 726-018-527-201		Polyester Thermoplastic		Press-Fit	Through Hole	Non Specified - Dual Edge	Copper Alloy		Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Dual	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	9	2

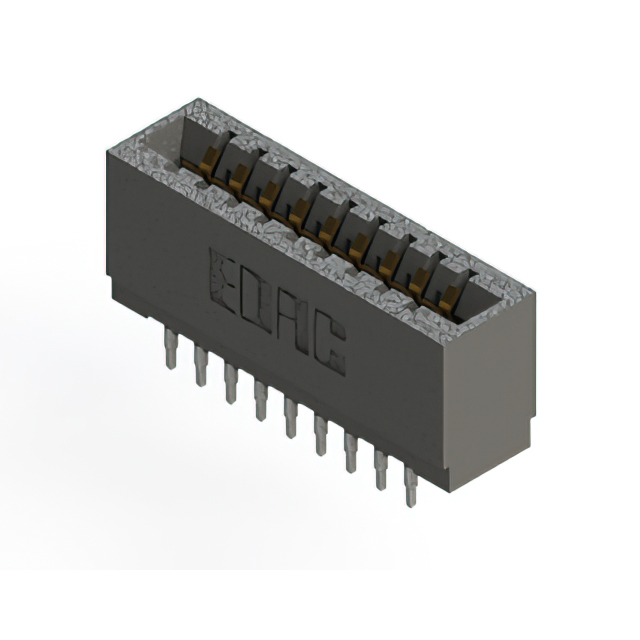

EDAC Inc. 726-018-525-201		Polyester Thermoplastic		Press-Fit	Through Hole	Non Specified - Dual Edge	Copper Alloy		Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Dual	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	9	2

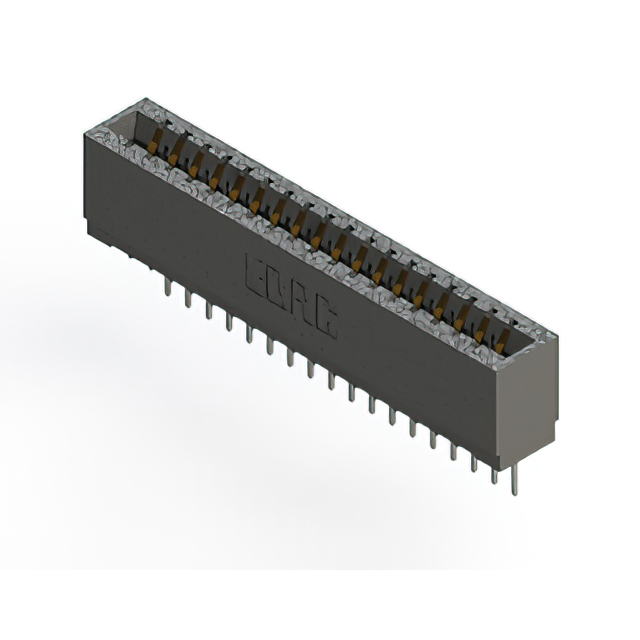

EDAC Inc. 726-018-527-101	1	Polyester Thermoplastic	1	Press-Fit	Through Hole	Non Specified - Single Edge	Copper Alloy	18	Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Single	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

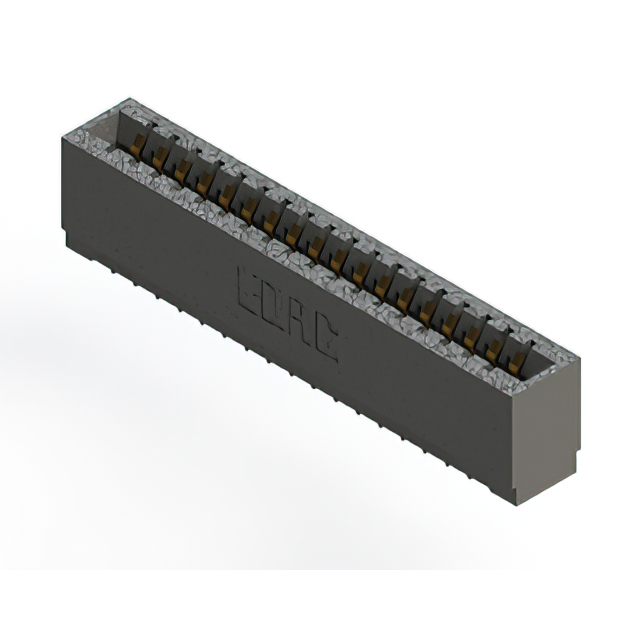

EDAC Inc. 726-018-525-101	1	Polyester Thermoplastic	1	Press-Fit	Through Hole	Non Specified - Single Edge	Copper Alloy	18	Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Single	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

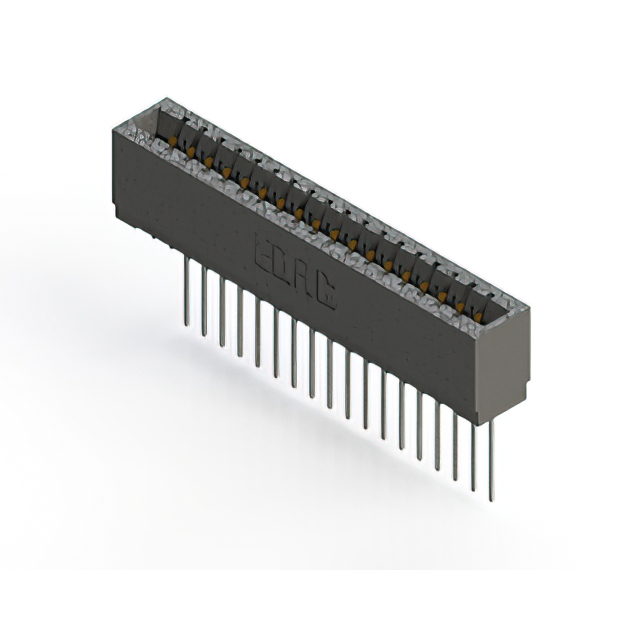

EDAC Inc. 726-018-553-101	1	Polyester Thermoplastic	1	Press-Fit Wire Wrap	Through Hole	Non Specified - Single Edge	Copper Alloy	18	Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Single	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

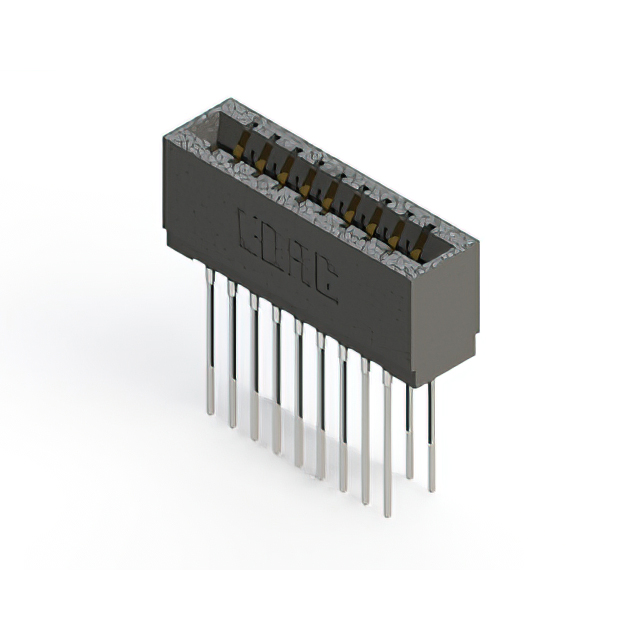

EDAC Inc. 726-018-541-201		Polyester Thermoplastic		Press-Fit Wire Wrap	Through Hole	Non Specified - Dual Edge	Copper Alloy		Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Dual	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	9	2

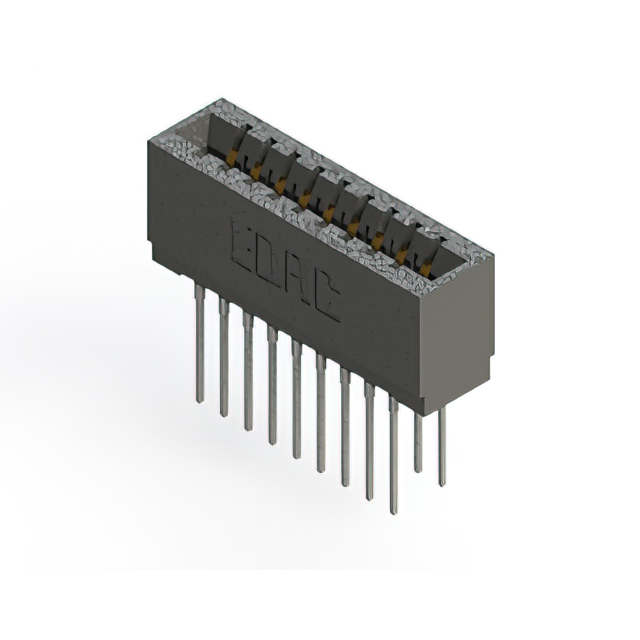

EDAC Inc. 726-018-540-201		Polyester Thermoplastic		Press-Fit Wire Wrap	Through Hole	Non Specified - Dual Edge	Copper Alloy		Female	Black	30 Áin	0.76 Ám	Gold	18	3.18 mm	0.125 in	Dual	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	2	9	2
