EALP05 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED YLW-GRN DIFFUSED 5MM T/H

Part	Mounting Type	Millicandela Rating	Wavelength - Peak	Current - Test	Color	Wavelength - Dominant	Lens Size [diameter]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Configuration	Supplier Device Package	Lens Color	Viewing Angle	Height (Max) [z]	Package / Case	Lens Style	Lens Size	Lens Size	Supplier Device Package	Height (Max) [Max] [z]	Wavelength - Peak
Everlight Electronics Co Ltd EALP05RDDGA5	Through Hole	125 mcd	575 nm	20 mA	Yellow-Green	573 nm	5 mm	Diffused	2 V	Standard	5 mm	White	35 °	8.9 mm	Radial	Round with Domed Top
Everlight Electronics Co Ltd EALP05RDEWA1	Through Hole	6750 mcd		20 mA	White			Clear	3.2 V	Standard		Colorless	50 °	8.9 mm	Radial	Round with Domed Top	5 mm	T-1 3/4	T-1 3/4 (5mm)

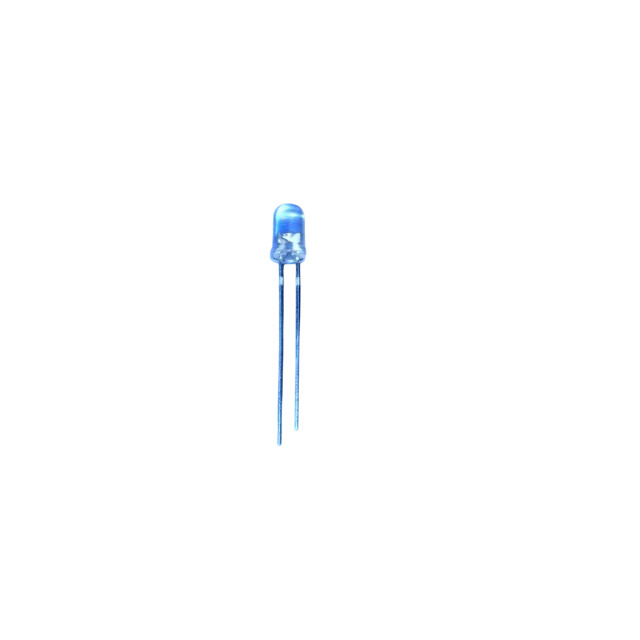

Everlight Electronics Co Ltd EALP05RDKBA0	Through Hole	2000 mcd	468 nm	20 mA	Blue	470 nm		Clear	3.3 V			Colorless	20 °		Radial	Round with Domed Top	5 mm	T-1 3/4	T-1 3/4 (5mm)	8.85 mm
Everlight Electronics Co Ltd EALP05RDGRA0	Through Hole	2000 mcd	650 nm	20 mA	Red	639 nm	5 mm	Clear	2 V	Standard	5 mm	Colorless	6 °	8.9 mm	Radial	Round with Domed Top
Everlight Electronics Co Ltd EALP05RDDYA6	Through Hole	3200 mcd	591 nm	20 mA	Yellow	589 nm	5 mm	Clear	2 V	Standard	5 mm	Colorless	10 °	8.9 mm	Radial	Round with Domed Top
Everlight Electronics Co Ltd EALP05RDEWA4	Through Hole	10700 mcd		20 mA	White			Clear	3.2 V	Standard		Colorless	20 °	8.9 mm	Radial	Round with Domed Top	5 mm	T-1 3/4	T-1 3/4 (5mm)
Everlight Electronics Co Ltd EALP05RDEWA3	Through Hole	21375 mcd		20 mA	White			Clear	3.2 V	Standard		Colorless	15 °	8.9 mm	Radial	Round with Domed Top	5 mm	T-1 3/4	T-1 3/4 (5mm)
Everlight Electronics Co Ltd EALP05RDCYGA0	Through Hole	32 mcd 80 mcd		20 mA 20 mA	Green Yellow	573 nm 589 nm	5 mm	Diffused	2 V 2 V	Bidirectional	5 mm	White	80 °	8.9 mm	Radial	Round with Domed Top					575nm Green 591nm Yellow
Everlight Electronics Co Ltd EALP05RDGRA2	Through Hole	2500 mcd	632 nm	20 mA	Red	624 nm		Clear	2 V			Colorless	6 °	8.9 mm	Radial	Round with Domed Top	5 mm	T-1 3/4	5mm Round

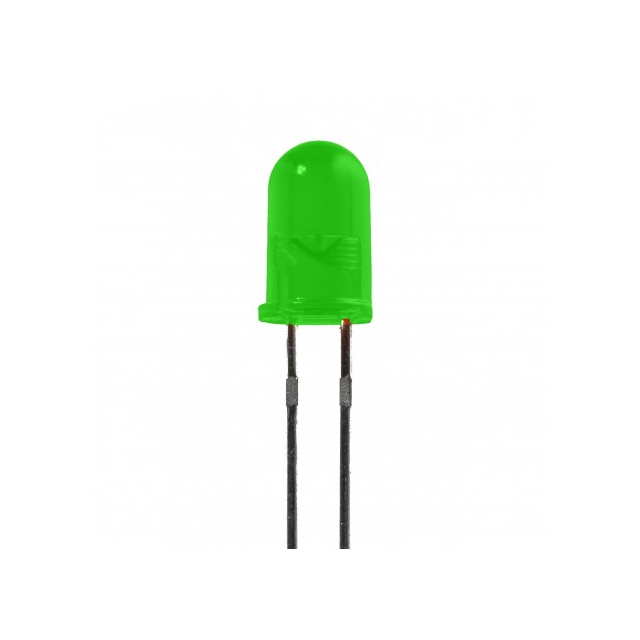

Everlight Electronics Co Ltd EALP05RDHGA1	Through Hole	200 mcd	575 nm	20 mA	Yellow-Green	573 nm	5 mm	Diffused	2 V	Standard	5 mm	Green	25 °	8.9 mm	Radial	Round with Domed Top
