208224 Series

Catalog

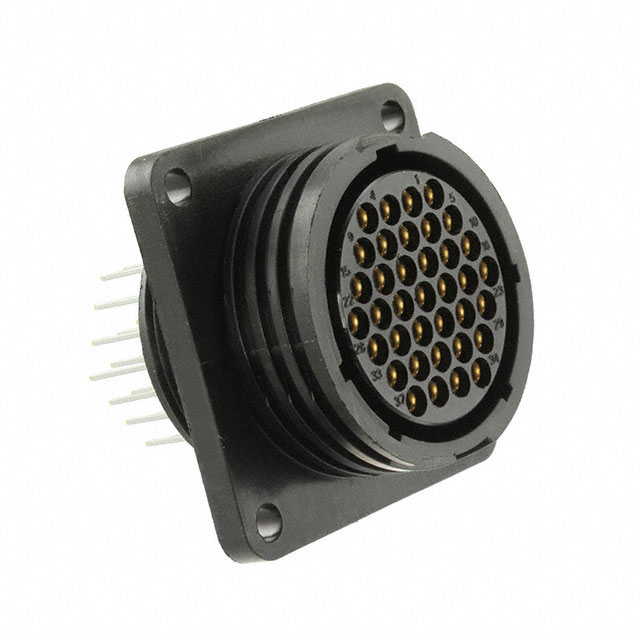

CONN RCPT SCKT CPC 37POS SER 1

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Color	Mounting Type	Connector Type	Primary Material	Shielding	Contact Material	Orientation	Voltage Rating	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 1-208224-2	23	37	Solder	10 çin	0.25 çm	37	UL94 V-0	Black	Panel Mount Through Hole	Receptacle Female Sockets	Plastic	Unshielded	Brass	A	250 VAC	Flange	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 208224-9	23	37	Solder	30 Áin	0.76 Ám	37	UL94 V-0		Panel Mount Through Hole	Receptacle Female Sockets	Plastic		Brass	A	250 VAC	Flange	105 ░C	-55 °C	Gold
TE Connectivity Raychem Cable Protection 2-208224-9
TE Connectivity Raychem Cable Protection 208224-3	23	37	Solder	100 çin	2.54 çm	37	UL94 V-0		Panel Mount Through Hole	Receptacle Female Sockets	Plastic		Brass	A	250 VAC	Flange	105 ░C	-55 °C	Tin-Lead
TE Connectivity Raychem Cable Protection 2-208224-1	23	37	Solder	30 Áin	0.76 Ám	37	UL94 V-0		Panel Mount Through Hole	Receptacle Female Sockets	Plastic		Brass	A	250 VAC	Flange	105 ░C	-55 °C	Gold PdNi +Gold
