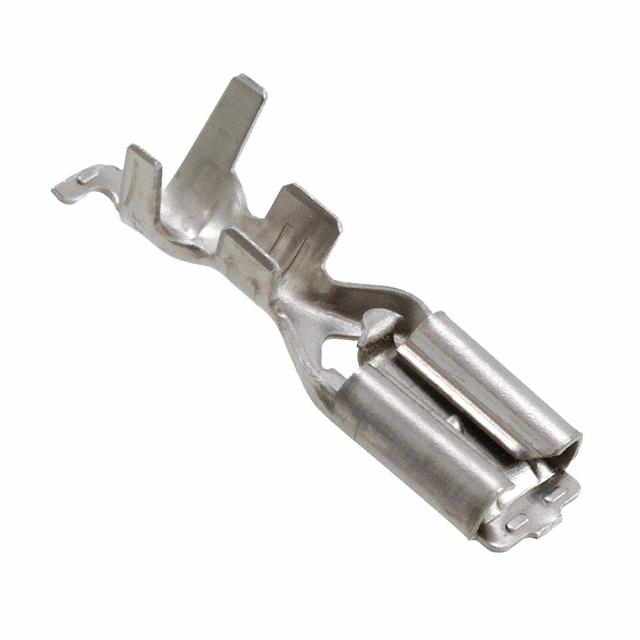

175032 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
PL 187 REC 26-20 AWG 0.30 X 14.0 SS
| Part | Terminal Type | Tab Width | Tab Width | Mounting Type | Termination | Gender | Length - Overall [x] | Length - Overall [x] | Tab Length | Tab Length | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Tab Thickness | Tab Thickness | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | 4.75 mm | 0.187 in | Free Hanging (In-Line) | Crimp | Female | 0.677 in | 17.2 mm | 0.287 in | 7.3 mm | 20 AWG | 26 AWG | Steel | 0.02 " | 0.51 mm | 3.61 mm | 0.142 in | 0.051 in | 1.3 mm | Non-Insulated |
