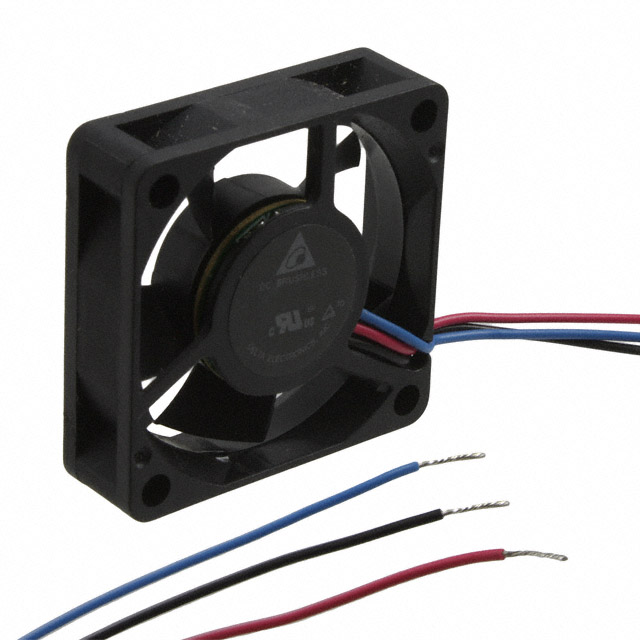

ASB0305 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN AXIAL 30X10MM 5VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Material - Blade | Termination | Fan Type | RPM | Power (Watts) | Bearing Type | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Weight [diameter] | Weight [diameter] | Air Flow | Air Flow | Static Pressure | Static Pressure | Size / Dimension [x] | Size / Dimension [z] | Features | Width [y] | Weight [custom] | Weight [custom] | Width [x] | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 5.5 V | 4.5 V | 110 mA | Plastic | 20000 Hrs | Plastic | 3 Wire Leads | Tubeaxial | 9000 RPM | 550 mW | Sleeve | 5 V | 70 °C | -10 °C | 23 dB(A) | 0.017 lb | 7.71 g | 3.4 CFM | 0.095 m³/min | 42.3 Pa | 0.17 in H2O | 30 mm | 30 mm | Locked Rotor Protection Speed Sensor (Tach) | 10 mm | ||||
 Delta Electronics | 5.5 V | 4.5 V | 0.2 A | Plastic | 40 °C 50000 Hrs | Plastic | 4 Position Rectangular Connector | Tubeaxial | 9500 RPM | Superflo | 5 V | 70 °C | -10 °C | 29 dB(A) | 5.1 CFM | 0.143 m³/min | 38.8 Pa | 0.156 in H2O | 30 mm | 30 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 0.01 lb | 4.54 g | 6.9 mm | cURus TUV |
