ECQ-E2473 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

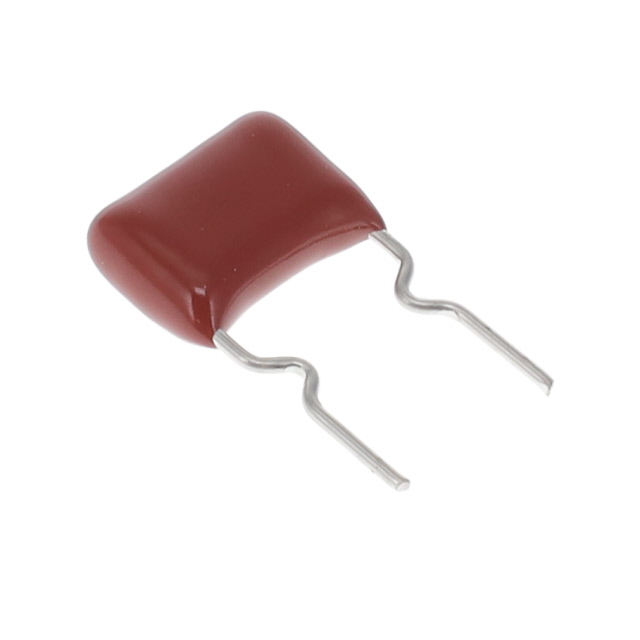

CAP FILM 0.047UF 10% 250VDC RAD
| Part | Mounting Type | Dielectric Material | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Voltage Rating - DC | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Applications | Package / Case | Termination | Tolerance | Size / Dimension [y] | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 7.5 mm | 0.295 in | 250 V | 0.492 in | 12.5 mm | General Purpose | Radial | PC Pins | 10 % | ||||
 Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 7.9 mm | 0.311 " | 0.177 " | -40 °C | 105 ░C | 5 mm | 0.197 in | 250 V | General Purpose | Radial | PC Pins | 10 % | 4.5 mm | 12.4 mm | 0.488 " | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 7.5 mm | 0.295 in | 250 V | 0.492 in | 12.5 mm | General Purpose | Radial | PC Pins | 5 % | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 7.9 mm | 0.311 " | 0.177 " | -40 °C | 105 ░C | 5 mm | 0.197 in | 250 V | General Purpose | Radial | PC Pins | 5 % | 4.5 mm | 12.4 mm | 0.488 " | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 7.5 mm | 0.295 in | 250 V | General Purpose | Radial | PC Pins | 10 % | 0.335 in | 8.5 mm | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 7.5 mm | 0.295 in | 250 V | General Purpose | Radial | PC Pins | 5 % | 0.335 in | 8.5 mm | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 5 mm | 0.197 in | 250 V | 0.492 in | 12.5 mm | General Purpose | Radial | PC Pins | 10 % | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 5 mm | 0.197 in | 250 V | 0.492 in | 12.5 mm | General Purpose | Radial | PC Pins | 5 % | ||||
Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | -40 °C | 105 ░C | 250 V | General Purpose | Radial | PC Pins | 10 % | ||||||||||||
 Panasonic Industrial Automation Sales | Through Hole | Polyester Metallized | 4.5 mm | 10.3 mm | 0.406 " | 0.177 " | -40 °C | 105 ░C | 7.5 mm | 0.295 in | 250 V | 0.492 in | 12.5 mm | General Purpose | Radial | PC Pins | 10 % |
