621-M15 Series
Manufacturer: EDAC Inc.
Beta
⌘K

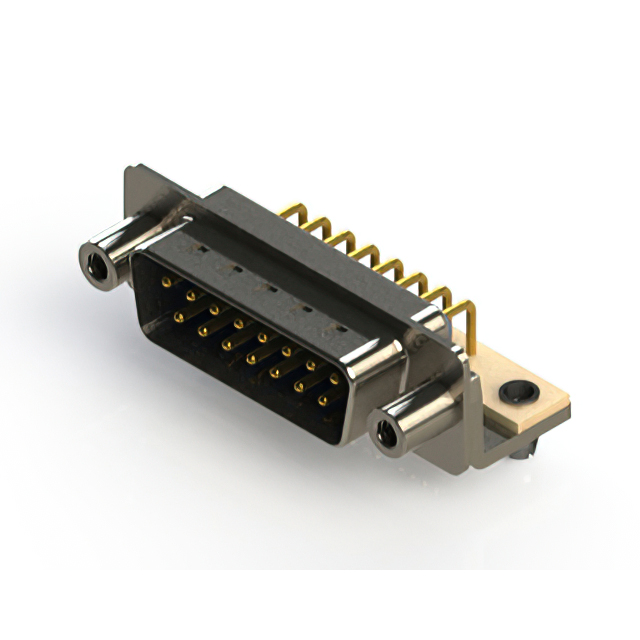

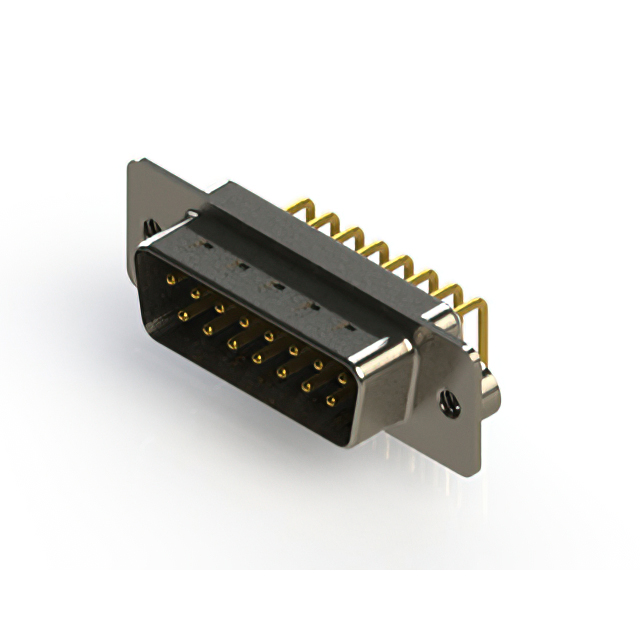

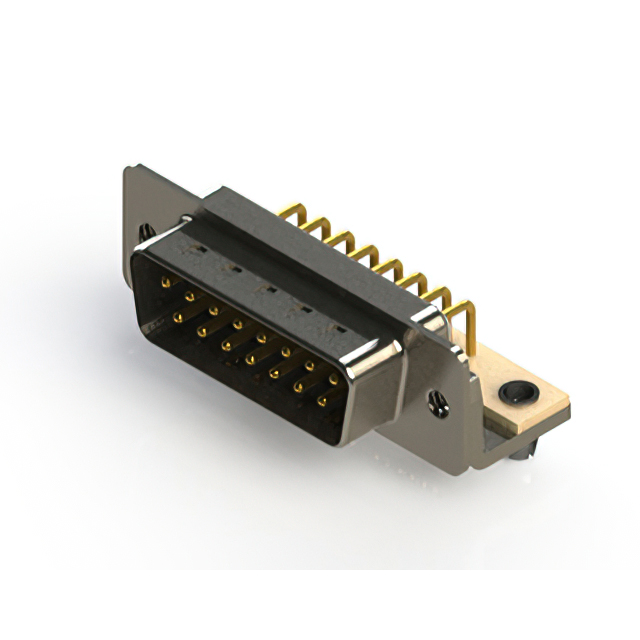

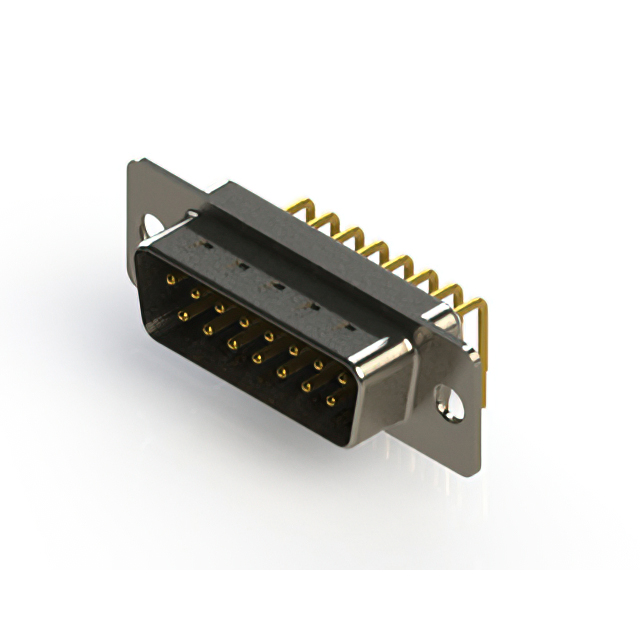

621M SERIES RIGHT ANGLE D-SUB PL
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Termination | Features | Backset Spacing | Backset Spacing | Number of Positions | Shell Size, Connector Layout | Contact Finish | Current Rating (Amps) | Contact Type | Number of Rows [custom] | Mounting Type | Connector Style | Flange Feature | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Material Flammability Rating | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | 4-40 | Nickel Plated Steel | 30 Áin | 0.76 Ám | Plug Male Pins | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | 4-40 | 30 Áin | 0.76 Ám | Plug Male Pins | UL94 V-0 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | 4-40 | Plug Male Pins | UL94 V-0 | Flash | ||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Solder | Grounding Indents Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell | Nickel Plated Steel | 30 Áin | 0.76 Ám | Plug Male Pins | UL94 V-0 | 4-40 | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Solder | Grounding Indents Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell | 30 Áin | 0.76 Ám | Plug Male Pins | UL94 V-0 | 4-40 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell | Plug Male Pins | UL94 V-0 | Flash | 4-40 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell | 30 Áin | 0.76 Ám | Plug Male Pins | UL94 V-0 | 4-40 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Solder | Grounding Indents Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell | Plug Male Pins | UL94 V-0 | Flash | 4-40 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Solder | Grounding Indents Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell (Unthreaded) | Nickel Plated Steel | 30 Áin | 0.76 Ám | Plug Male Pins | UL94 V-0 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Solder | Board Lock Grounding Indents Mounting Brackets Shielded | 7.2 mm | 0.283 in | 15 | 2 | Gold | 5 A | Signal | 2 | Board Edge Right Angle Through Hole | D-Sub | Housing/Shell | 15 µin | 0.38 µm | Plug Male Pins | UL94 V-0 | 4-40 |
