745-024 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 24POS 0.100

Part	Number of Rows	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Termination	Contact Type	Mounting Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Card Type	Termination Rows	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Number of Positions
EDAC Inc. 745-024-525-206	2	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever	Through Hole	Polyester Thermoplastic	12	Non Specified - Dual Edge	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Dual	Female	24

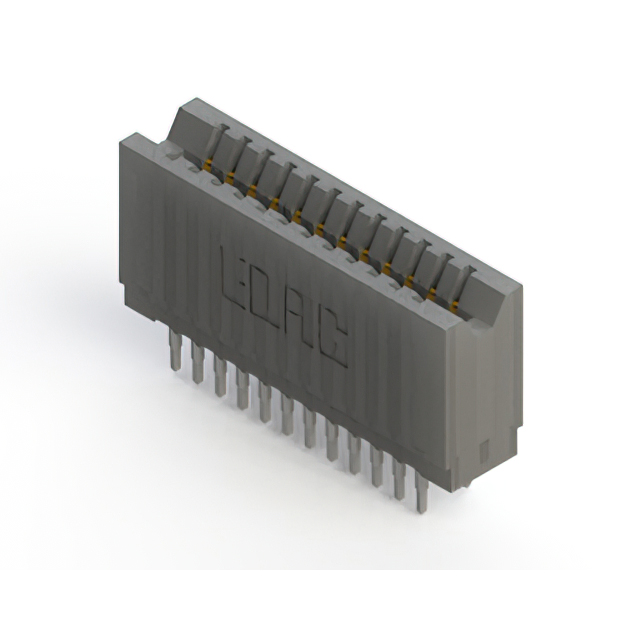

EDAC Inc. 745-024-560-206	2	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever Make Before Break	Through Hole	Polyester Thermoplastic	12	Non Specified - Dual Edge	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Dual	Female	24
EDAC Inc. 745-024-541-106	1	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit Wire Wrap	Cantilever	Through Hole	Polyester Thermoplastic	24	Non Specified - Single Edge	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Single	Female	24
EDAC Inc. 745-024-520-206	2	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever	Through Hole	Polyester Thermoplastic	12	Non Specified - Dual Edge	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Dual	Female	24

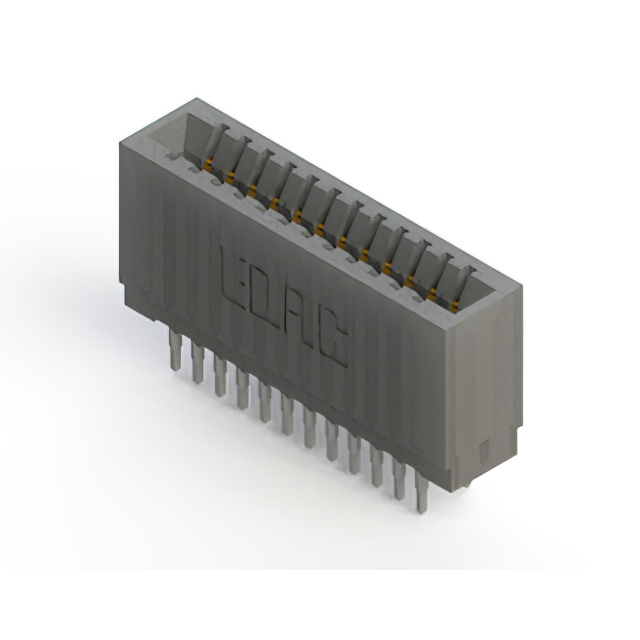

EDAC Inc. 745-024-560-201	2	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever Make Before Break	Through Hole	Polyester Thermoplastic	12	Non Specified - Dual Edge	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Dual	Female	24

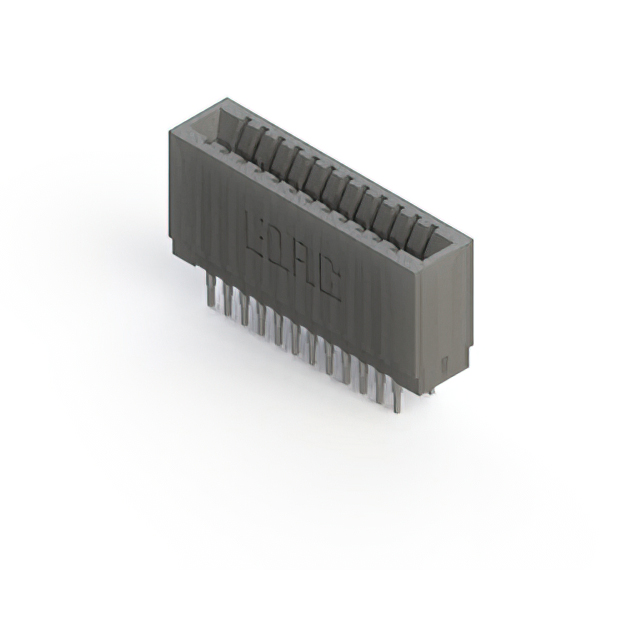

EDAC Inc. 745-024-541-201	2	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit Wire Wrap	Cantilever	Through Hole	Polyester Thermoplastic	12	Non Specified - Dual Edge	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Dual	Female	24
EDAC Inc. 745-024-525-201	2	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever	Through Hole	Polyester Thermoplastic	12	Non Specified - Dual Edge	2	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Dual	Female	24

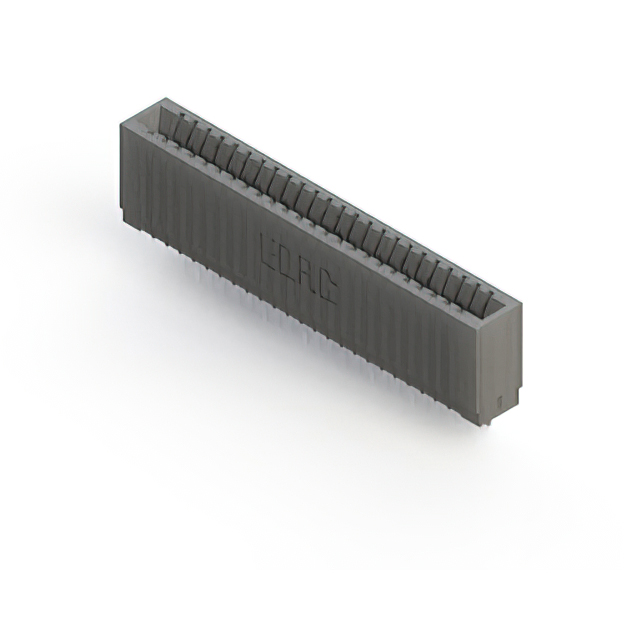

EDAC Inc. 745-024-541-101	1	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit Wire Wrap	Cantilever	Through Hole	Polyester Thermoplastic	24	Non Specified - Single Edge	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Single	Female	24
EDAC Inc. 745-024-520-106	1	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever	Through Hole	Polyester Thermoplastic	24	Non Specified - Single Edge	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Single	Female	24

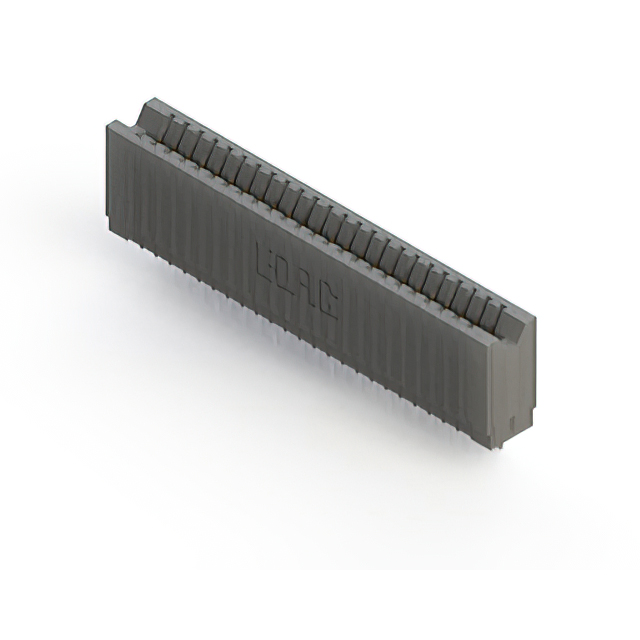

EDAC Inc. 745-024-545-106	1	Gold	-40 °C	105 ░C	2.54 mm	0.1 in	Press-Fit	Cantilever	Through Hole	Polyester Thermoplastic	24	Non Specified - Single Edge	1	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	Single	Female	24
