PV2 Series

Catalog

CONN RING D-SHAPE 2AWG #1/4

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Features	Termination	Contact Material	Contact Finish	Wire Gauge	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation	Width - Outer Edges [x]	Width - Outer Edges	Thickness	Thickness	Color	Stud/Tab Size	Terminal Type	Length - Overall [custom]	Length - Overall [custom]	Length - Overall	Length - Overall	Width - Outer Edges
Panduit Corp PV2-14R-TY	14.22 mm	0.56 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)	1.96 in	49.78 mm	Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.25 Stud	D-Shaped
Panduit Corp PV2-14RX-TY	16.05 mm	0.632 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)			Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.25 Stud	D-Shaped	49.28 mm	1.94 in

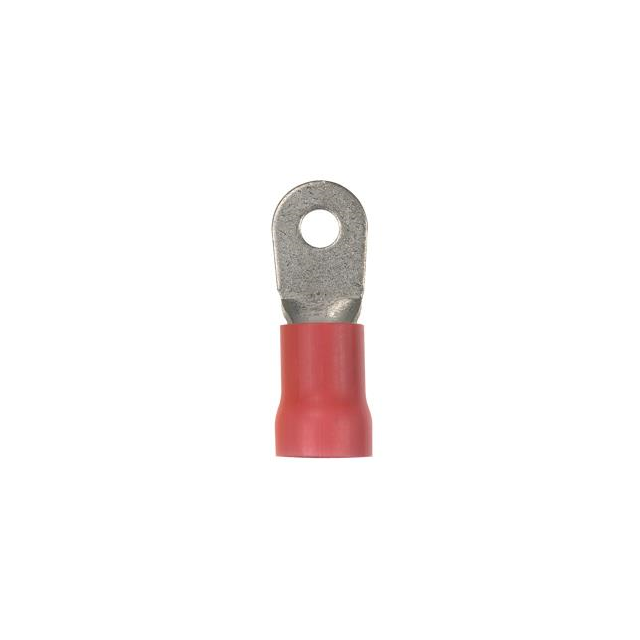

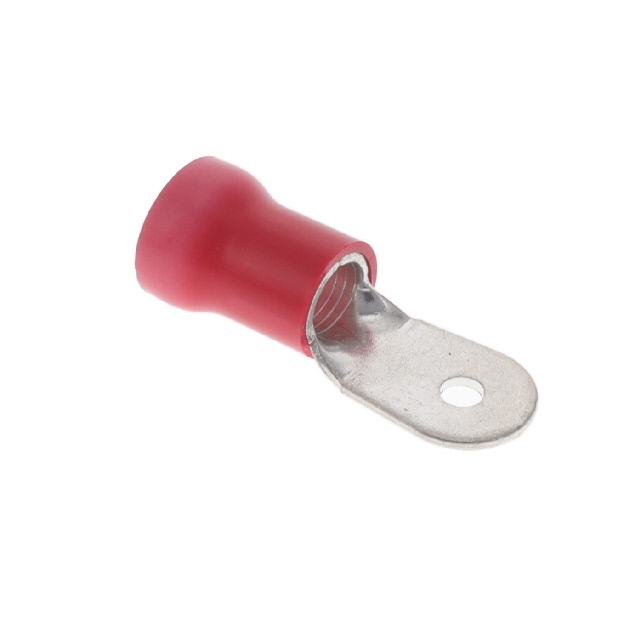

Panduit Corp PV2-10RX-XY	16.05 mm	0.632 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)			Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	10 Stud	D-Shaped	49.28 mm	1.94 in
Panduit Corp PV2-38RX-XY	16.05 mm	0.632 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)			Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.375 Stud	D-Shaped	49.28 mm	1.94 in

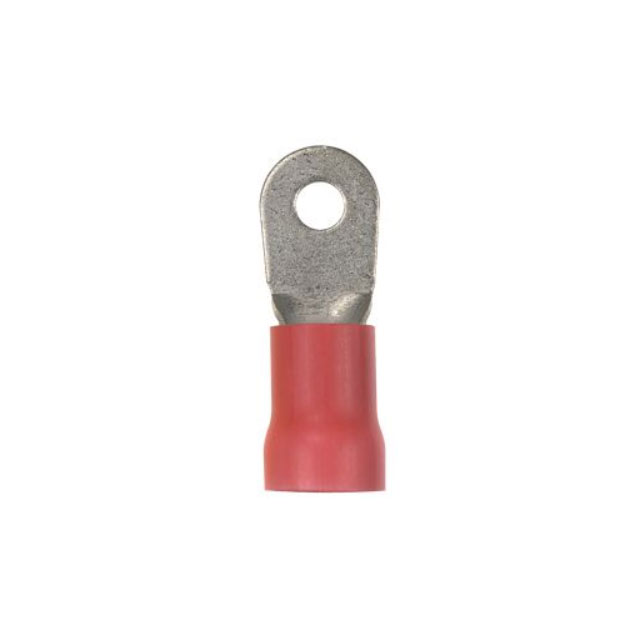

Panduit Corp PV2-38R-XY	14.22 mm	0.56 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)	1.96 in	49.78 mm	Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.375 Stud	D-Shaped
Panduit Corp PV2-56R-XY	14.22 mm	0.56 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)	1.96 in	49.78 mm	Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.3125 Stud	D-Shaped
Panduit Corp PV2-56RX-TY	16.05 mm	0.632 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)			Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.3125 Stud	D-Shaped	49.28 mm	1.94 in
Panduit Corp PV2-10R-XY	14.22 mm	0.56 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)	1.96 in	49.78 mm	Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	10 Stud	Flat Sided

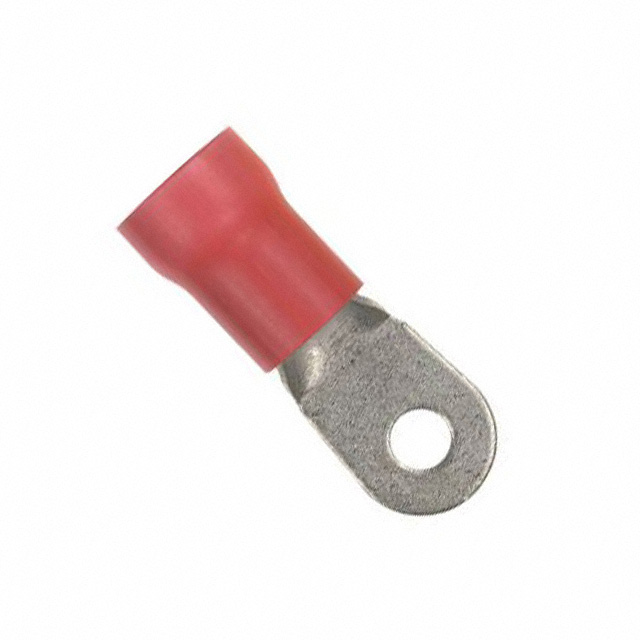

Panduit Corp PV2-14R-XY	14.22 mm	0.56 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)	1.96 in	49.78 mm	Insulated	0.68 "	17.27 mm	1.52 mm	0.06 in	Red	0.25 Stud	D-Shaped
Panduit Corp PV2-12R-XY	14.22 mm	0.56 in	Vinyl	Brazed Seam	Crimp	Copper	Tin	2 AWG	Free Hanging (In-Line)			Insulated		21.84 mm	1.52 mm	0.06 in	Red	0.5 Stud	D-Shaped			52.07 mm	2.05 "	0.86 in
