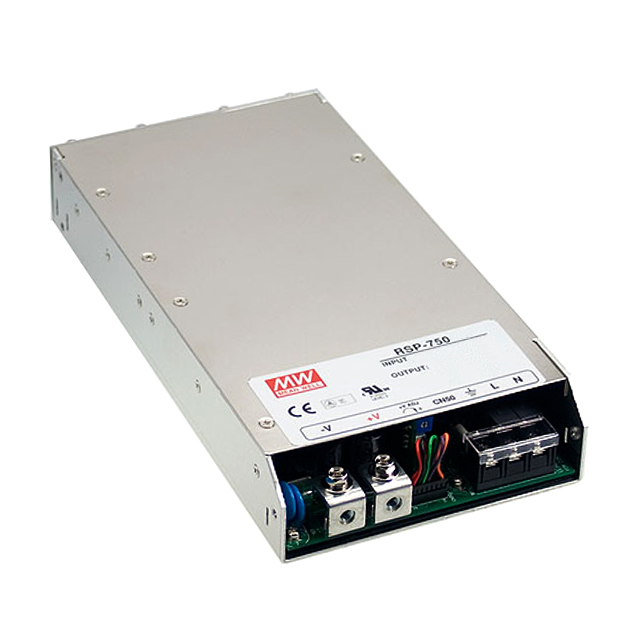

RSP-750 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 750W
| Part | Minimum Load Required | Mounting Type | Applications | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Type | Current - Output 1 | Features | Number of Outputs | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 12 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 87 % | 3000 V | 1.61 " | 41 mm | 9.84 in | 250 mm | 5 in | 5 in | 750 W | -30 °C | 70 °C | Enclosed | 62.5 A | Adjustable Output PFC Remote On/Off Universal Input | 1 | CB CE cURus TUV | |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 48 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 92 % | 3000 V | 1.61 " | 41 mm | 9.84 in | 250 mm | 5 in | 5 in | 754 W | -30 °C | 70 °C | Enclosed | 15.7 A | Adjustable Output PFC Remote On/Off Universal Input | 1 | CB CE cURus TUV | |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 27 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 90.5 % | 3000 V | 1.61 " | 41 mm | 9.84 in | 250 mm | 5 in | 5 in | 751 W | -30 °C | 70 °C | Enclosed | 27.8 A | Adjustable Output PFC Remote On/Off Universal Input | 1 | CB CE cURus TUV | |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 24 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 90.5 % | 3000 V | 1.61 " | 41 mm | 9.84 in | 250 mm | 5 in | 5 in | 751 W | -30 °C | 70 °C | Enclosed | 31.3 A | Adjustable Output PFC Remote On/Off Universal Input | 1 | CB CE cURus TUV |
