23SX39 Series

Catalog

SWITCH SNAP ACTION SPDT 1A 125V

Part	Overtravel [custom]	Overtravel [custom]	Circuit	Mechanical Life	Mounting Type	Actuator Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Current Rating (Amps)	Operating Position	Operating Position	Release Force	Switch Function	Differential Travel	Differential Travel	Voltage Rating - AC	Termination Style	Operating Force

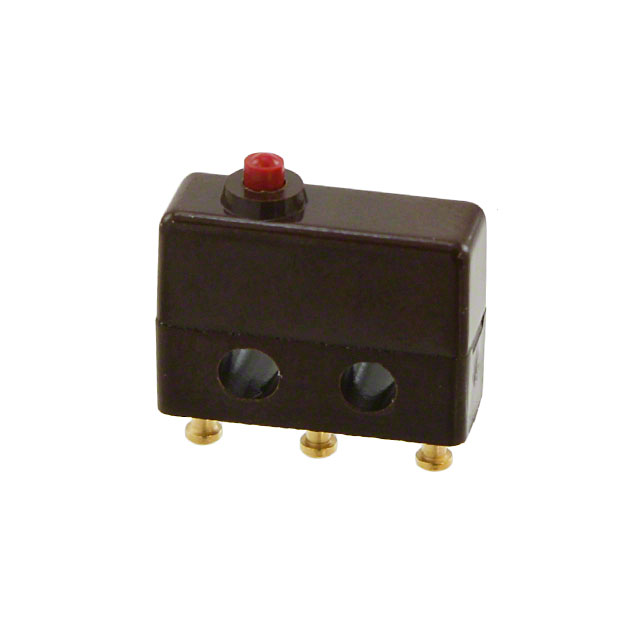

Honeywell Sensing and Productivity Solutions 23SX39-T	0.004 in	0.1 mm	SPDT	1000000 Cycles	Chassis Mount	Round (Pin Plunger)	30 V	-53 °C	85 °C	0.02 in	0.5 mm	1 A	8.13 mm	0.32 "	28 gf	On-Mom	0.005 in	0.13 mm	125 V	Solder Turret	141 gf
