1827059 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

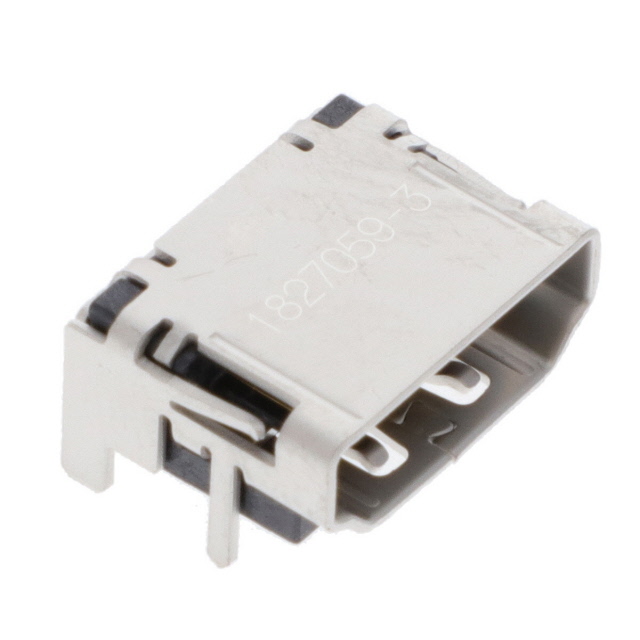

CONN RCPT HDMI 19POS PNL MNT R/A
| Part | Connector Type | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Mounting Feature | Mounting Type | Material Flammability Rating | Termination | Contact Finish | Shell/Shielding Material | Number of Ports | Insulation Color | Mating Cycles | Voltage - Rated | Number of Contacts [custom] | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | HDMI | Unshielded | 70 °C | -25 °C | Receptacle | Horizontal | Panel Mount Surface Mount Right Angle Through Hole | UL94 V-0 | Solder | Gold | Phosphor Bronze | 1 | Black | 10000 | 40 VAC | 19 | 0.5 A | |
 TE Connectivity Raychem Cable Protection | HDMI | Unshielded | 70 °C | -25 °C | Receptacle | Horizontal | Panel Mount Surface Mount Right Angle Through Hole | UL94 V-0 | Solder | Gold | Phosphor Bronze | 1 | Black | 10000 | 40 VAC | 19 | 0.5 A | Board Guide |
