837-046 Series
Manufacturer: EDAC Inc.
Beta
⌘K

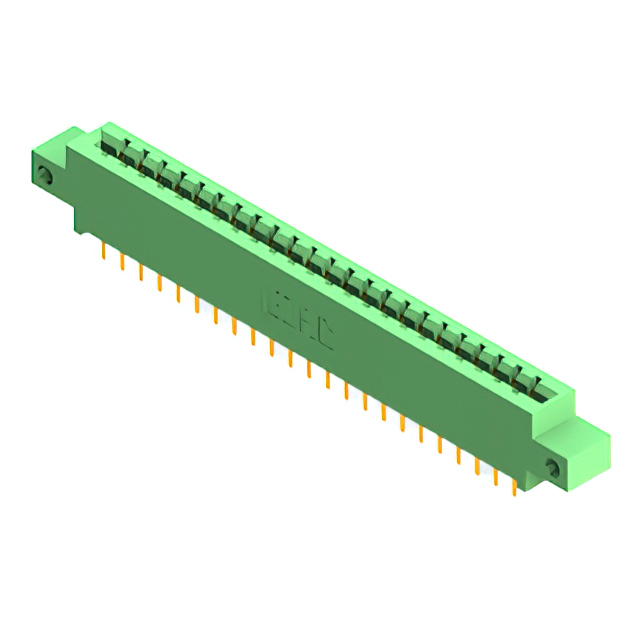

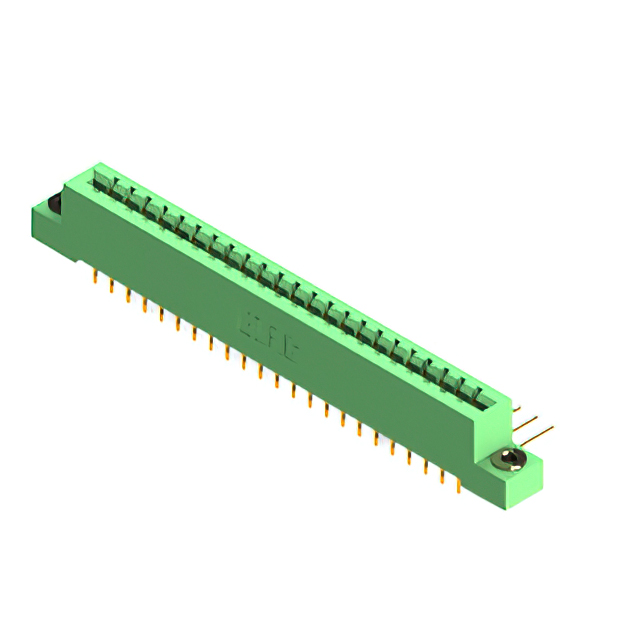

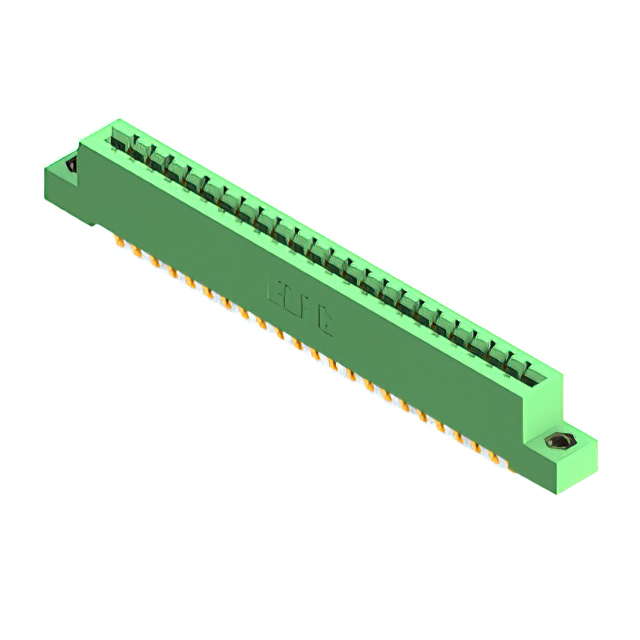

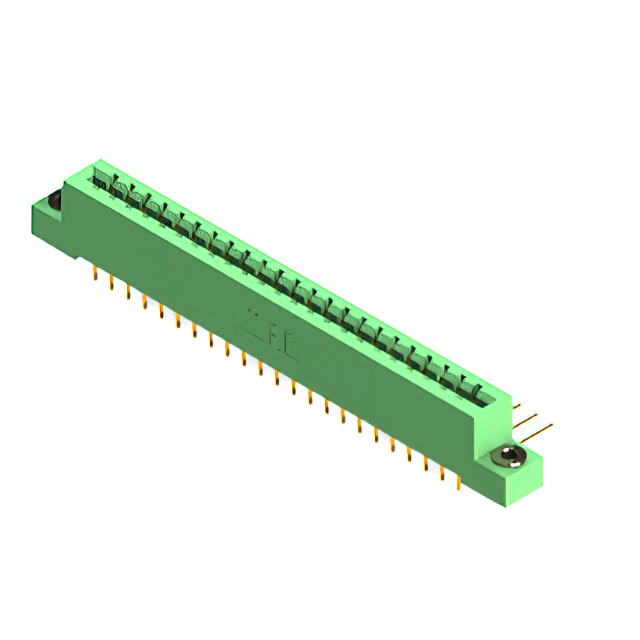

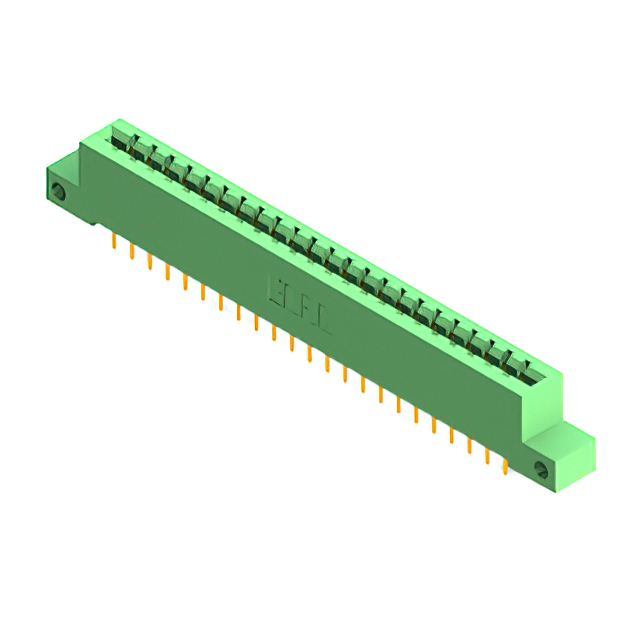

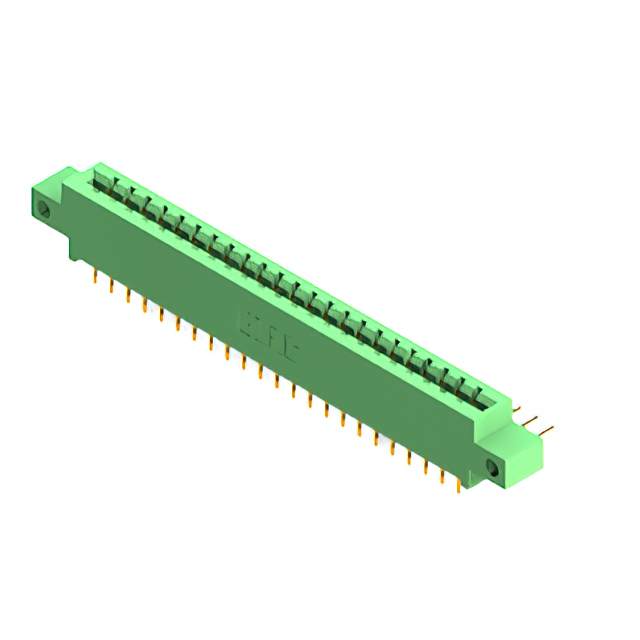

CONN EDGE DUAL FMALE 46POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Number of Rows [custom] | Mounting Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Type | Read Out | Number of Positions | Gender | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Number of Positions/Bay/Row | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Green | 23 | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Right Angle Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Green | 23 | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Board Edge Straddle Mount | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | Green | 23 | Cantilever | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Green | 23 | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Right Angle Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Green | 23 | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Board Edge Straddle Mount | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | 0.128 " | 3.25 mm | Green | 23 | Cantilever | Card Extender | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Right Angle Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Green | 23 | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Green | 23 | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Board Edge Straddle Mount | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Flush Mount M3 Threaded Insert Top Opening | Green | 23 | Cantilever | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 2 | Right Angle Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Copper Alloy | Non Specified - Dual Edge | Dual | 46 | Female | Solder | 125 °C | -40 C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Green | 23 | Cantilever |
