MDBA26 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

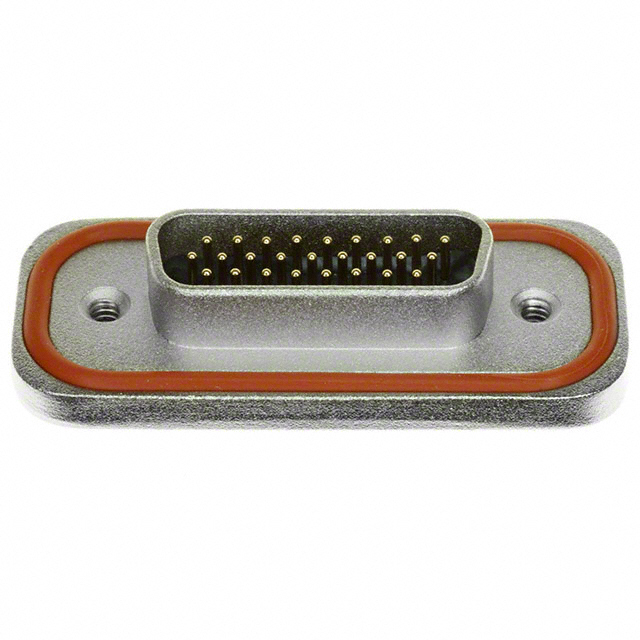

CONN D-SUB HD PLUG 26POS PNL MNT
| Part | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Type | Shell Material, Finish | Contact Type | Termination | Ingress Protection | Features | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Contact Finish | Mounting Type | Number of Rows [custom] | Number of Positions | Flange Feature | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Polyester | Black | Copper Alloy | -40 C | 105 ░C | 125 VDC | Plug Male Pins | Nickel Plated Zinc | Signal | Solder | IP67 - Dust Tight Waterproof | Board Lock | UL94 V-0 | 30 Áin | 0.76 Ám | D-Sub High Density | Gold | Panel Mount Through Hole | 3 | 26 | Board Side (4-40) | 3 A | 2 | DA A |
