DA56-11 Series

Catalog

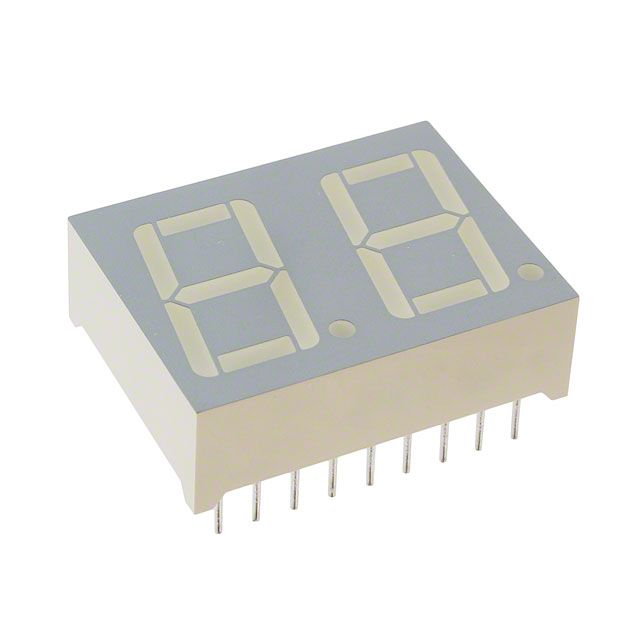

DISPLAY SEGMENTED PANEL 2DIGIT 16LED YELLOW CA 18-PIN DIP MODULE TUBE

Part	Display Type	Current - Test	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Color	Common Pin	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Package / Case [x]	Package / Case [x]	Package / Case	Millicandela Rating	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Kingbright DA56-11SYKWA	7-Segment	20 mA	75 mw	0.75 in	0.984 "	0.268 "	6.8 mm	25 mm	19.05 mm	2	0.56 in	14.22 mm	Yellow	Common Anode	590 nm	2 V	15.24 mm	0.6 in	18-DIP	130 mcd
Kingbright DA56-11YWA	7-Segment	20 mA	75 mw	0.984 "	0.75 in	0.315 in				2	0.56 in	14.22 mm	Yellow	Common Anode	590 nm	2.1 V	15.24 mm	0.6 in	18-DIP	6.5 mcd	19.05 mm	8 mm	25 mm
Kingbright DA56-11SURKWA	7-Segment	20 mA	75 mw	0.75 in	0.984 "	0.268 "	6.8 mm	25 mm	19.05 mm	2	0.56 in	14.22 mm	Red	Common Anode	645 nm	1.95 V	15.24 mm	0.6 in	18-DIP	85 mcd
Kingbright DA56-11CGKWA	7-Segment	20 mA	75 mw	0.75 in	0.984 "	0.268 "	6.8 mm	25 mm	19.05 mm	2	0.56 in	14.22 mm	Green	Common Anode		2.1 V	15.24 mm	0.6 in	18-DIP	35 mcd
Kingbright DA56-11EWA	7-Segment	20 mA	75 mw	0.984 "	0.75 in	0.315 in				2	0.56 in	14.22 mm	Red	Common Anode	627 nm	2 V	15.24 mm	0.6 in	18-DIP	8 mcd	19.05 mm	8 mm	25 mm
Kingbright DA56-11SRWA	7-Segment	20 mA	75 mw	0.984 "	0.75 in	0.315 in				2	0.56 in	14.22 mm	Red	Common Anode	660 nm	1.85 V	15.24 mm	0.6 in	18-DIP	28 mcd	19.05 mm	8 mm	25 mm
Kingbright DA56-11GWA	7-Segment	20 mA	62.5 mW	0.984 "	0.75 in	0.315 in				2	0.56 in	14.22 mm	Green	Common Anode	565 nm	2.2 V	15.24 mm	0.6 in	18-DIP	11 mcd	19.05 mm	8 mm	25 mm
